HMC345 Series

Catalog

EVALUATION BOARD, GAAS MMIC SP4T SWITCH ROHS COMPLIANT: YES

Part	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Contents	Type	RF Type	Insertion Loss	IIP3 [Min]	Impedance	Topology	Frequency Range [Max]	Frequency Range [Min]	Isolation	P1dB	Mounting Type	Circuit	Test Frequency	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	IIP3

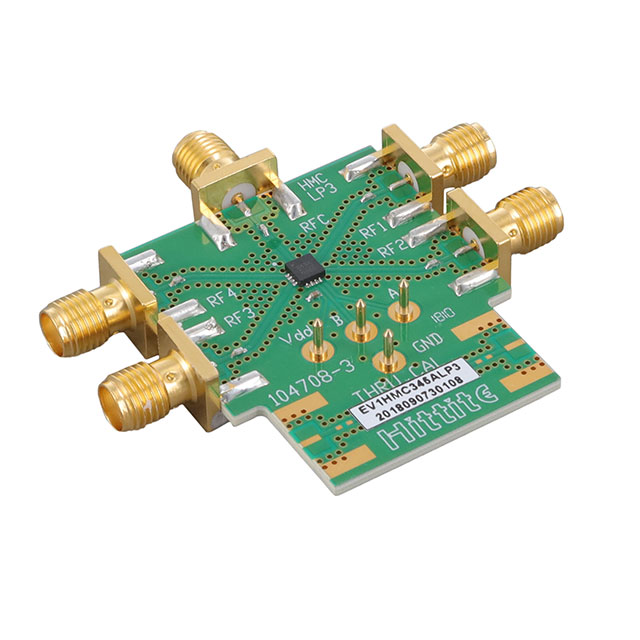

Analog Devices Inc./Maxim Integrated EV1HMC345ALP3	HMC345ALP3E	Board(s)	HMC345ALP3E	8 GHz	0 Hz	Board(s)	Switch SP4T
Analog Devices Inc./Maxim Integrated HMC345LP3TR								General Purpose	2.4 dB	45 dBm	50 Ohms 75 Ohms	Absorptive	8 GHz	0 Hz	32 dB	21 dBm	Surface Mount	SP4T	8 GHz	16-QFN (3x3)	16-VFQFN Exposed Pad	85 °C	-40 C
Analog Devices Inc./Maxim Integrated HMC345LP3E								General Purpose	2.4 dB		50 Ohms 75 Ohms	Absorptive	8 GHz	0 Hz	32 dB	21 dBm	Surface Mount	SP4T	8 GHz	16-QFN (3x3)	16-VFQFN Exposed Pad	85 °C	-40 C	45 dBm
Analog Devices Inc./Maxim Integrated HMC345LP3ETR								General Purpose	2.4 dB		50 Ohms 75 Ohms	Absorptive	8 GHz	0 Hz	32 dB	21 dBm	Surface Mount	SP4T	8 GHz	16-QFN (3x3)	16-VFQFN Exposed Pad	85 °C	-40 C	45 dBm
Analog Devices Inc./Maxim Integrated HMC345LP3								General Purpose	2.4 dB	45 dBm	50 Ohms 75 Ohms	Absorptive	8 GHz	0 Hz	32 dB	21 dBm	Surface Mount	SP4T	8 GHz	16-QFN (3x3)	16-VFQFN Exposed Pad	85 °C	-40 C
