TLHC-88B Series

Catalog

BUZZER 33.02MM PNL MNT

Part	Sound Pressure Level (SPL)	Port Location	Driver Circuitry	Input Type	Termination	Termination	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Approval Agency	Operating Mode	Frequency	Ingress Protection	Mounting Type	Voltage Range [Max]	Voltage Range [Min]	Current - Supply [Min] [x]	Current - Supply [Max] [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

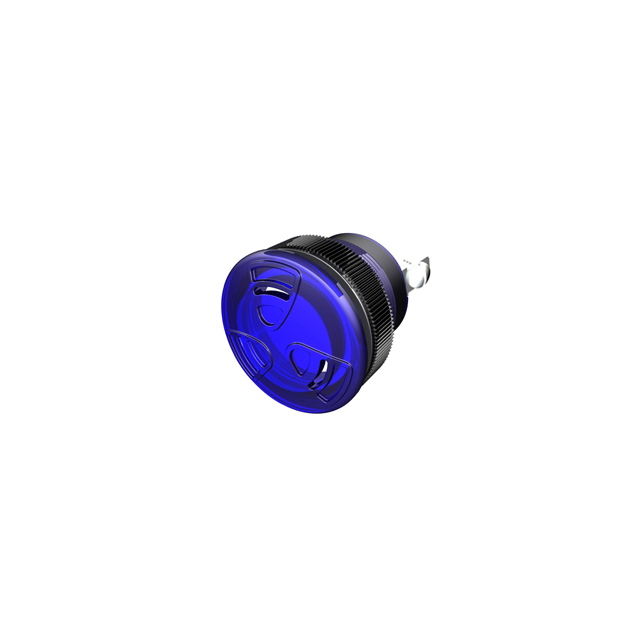

Floyd Bell Inc TLHC-88B-930-S	103 dB	Top	Indicator Internally Driven	DC	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	1.3 in	33.02 mm	UL UR	Single Tone	2.9 kHz	IP68 - Dust Tight Waterproof	Panel Mount	30 V	9 V	50 mA	110 mA	29.97 mm	1.18 in
Floyd Bell Inc TLHC-88B-930-Q	103 dB	Top	Indicator Internally Driven	DC	0.25 "	Quick Connect Tab	6.35 mm	1.3 in	33.02 mm	UL UR	Single Tone	2.9 kHz	IP68 - Dust Tight Waterproof	Panel Mount	30 V	9 V	50 mA	110 mA	29.97 mm	1.18 in
