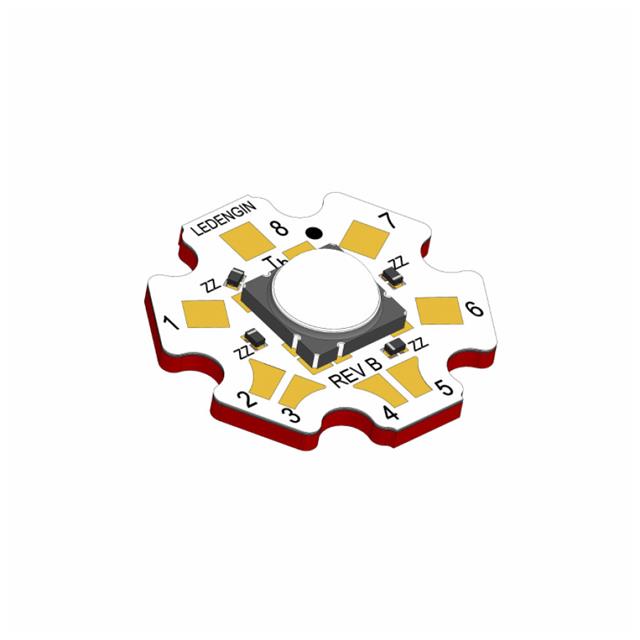

LZ4-V0 Series

Catalog

LED MOD ROUND

Part	Size / Dimension [diameter]	Configuration	Height [z]	Light Emitting Surface (LES) [diameter]	Type	Lens Type	Current - DC Forward (If) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Typ)	Operating Temperature	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Orientation
ams-OSRAM USA INC. LZ4-V0UBH0-00U4	19.9 mm	Round	5.4 mm	6.2 mm	LED Module	Domed
ams-OSRAM USA INC. LZ4-V0UB0R-00U4					Ultraviolet (UV)		1 A	Surface Mount	14.8 V	130 °C	110 °	390 nm	385 nm	4800 mW/sr	Star Array	Top View
ams-OSRAM USA INC. LZ4-V0UB0R-00U5					Ultraviolet (UV)		1 A	Surface Mount	14.8 V	130 °C	110 °	395 nm	390 nm	4800 mW/sr	Star Array	Top View
ams-OSRAM USA INC. LZ4-V0UBH0-00U5	19.9 mm	Round	5.4 mm	6.2 mm	LED Module	Domed
ams-OSRAM USA INC. LZ4-V0UBH0-00U8	19.9 mm	Round	5.4 mm	6.2 mm	LED Module	Domed
ams-OSRAM USA INC. LZ4-V0UB0R-00U8					Ultraviolet (UV)		1 A	Surface Mount	14.8 V	130 °C	110 °	410 nm	405 nm	4800 mW/sr	Star Array	Top View
