MCIMX537 Series

Catalog

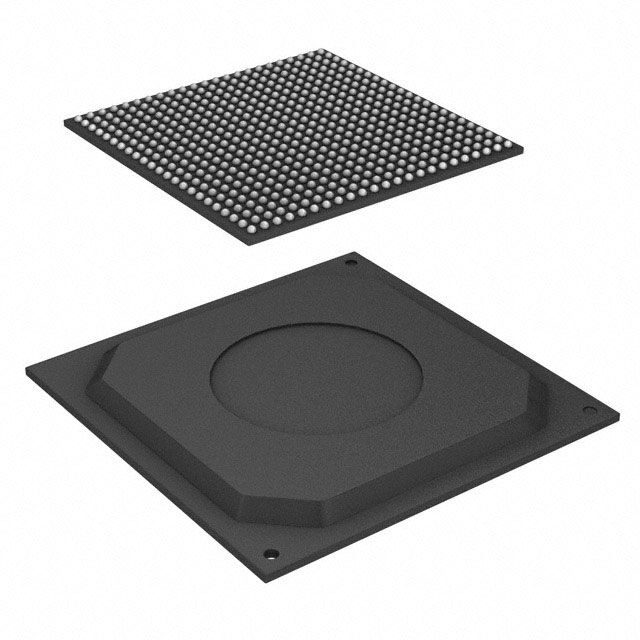

SOC I.MX53 ARM CORTEX A8 529-PIN TEBGA II T/R

Part	Graphics Acceleration	Operating Temperature [Min]	Operating Temperature [Max]	Co-Processors/DSP	Speed	SATA	Security Features	Ethernet	Ethernet [Max]	Ethernet [Min]	Additional Interfaces	Number of Cores/Bus Width	Mounting Type	Supplier Device Package	USB	Display & Interface Controllers	Package / Case	RAM Controllers	Core Processor	Voltage - I/O
Freescale Semiconductor - NXP MCIMX537CVP8C2R2		-40 °C	125 ¯C	Multimedia NEON™ SIMD	800 MHz	1.5 Gbps	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	1	100 Mbps	10 Mbps	1-Wire AC'97 CAN I2C I2S MMC/SD SAI SPI SSI UART	1 Core 32 Bit	Surface Mount	529-FBGA (19x19)	USB 2.0 (2) USB 2.0 + PHY (1) USB 2.0 OTG + PHY (1)	Keypad LCD LVDS	529-FBGA	DDR2 DDR3 LPDDR2	ARM® Cortex®-A8	1.3 V 1.8 V 2.775 V 3.3 V
Freescale Semiconductor - NXP MCIMX537CVV8B		-40 °C	85 °C	Multimedia NEON™ SIMD	800 MHz	1.5 Gbps	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	1	100 Mbps	10 Mbps	1-Wire AC'97 CAN I2C I2S MMC/SD SAI SPI SSI UART	1 Core 32 Bit	Surface Mount	529-FBGA (19x19)	USB 2.0 (2) USB 2.0 + PHY (2)	Keypad LCD	529-FBGA	DDR2 DDR3 LPDDR2	ARM® Cortex®-A8	1.3 V 1.8 V 2.775 V 3.3 V
