RLB0812 Series

Catalog

INDUCTOR,FERRITE,100UH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Tolerance	Package / Case	Q @ Freq	Mounting Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Material - Core	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB0812-101KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	45 796 kHz	Through Hole	Unshielded	125 °C	-40 C	4.2 MHz	100 µH	0.796 MHz	320 mA	Ferrite	0.264 in	6.7 mm
Bourns Inc. RLB0812-681K4L	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	45 796 kHz	Through Hole	Unshielded	125 °C	-40 C	1.7 MHz	680 µH	0.796 MHz	140 mA	Ferrite	0.264 in	6.7 mm	2.9 Ohm
Bourns Inc. RLB0812-152KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	60 252 kHz	Through Hole	Unshielded	125 °C	-40 C	900 kHz	1.5 mH	252 kHz	100 mA	Ferrite	0.264 in	6.7 mm	6 Ohm
Bourns Inc. RLB0812-181KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	45 796 kHz	Through Hole	Unshielded	125 °C	-40 C		180 µH	0.796 MHz	0.26 A	Ferrite	0.264 in	6.7 mm	1 Ohm
Bourns Inc. RLB0812-681KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	45 796 kHz	Through Hole	Unshielded	125 °C	-40 C	1.7 MHz	680 µH	0.796 MHz	140 mA	Ferrite	0.264 in	6.7 mm	2.9 Ohm
Bourns Inc. RLB0812-102KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder		Through Hole	Unshielded	125 °C	-40 C	1.4 MHz	1 mH	252 kHz	120 mA	Ferrite	0.264 in	6.7 mm	3.9 Ohm	45	252 kHz

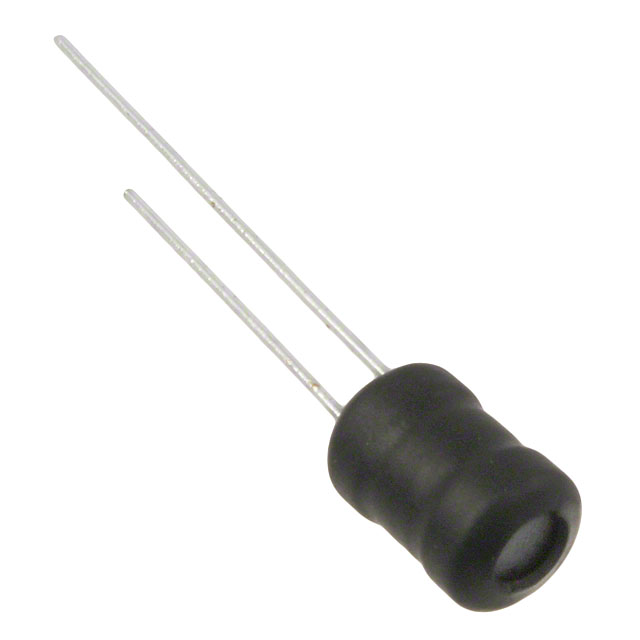

Bourns Inc. RLB0812-222JL	11 mm	0.433 in	Drum Core Wirewound	5 %	Radial Vertical Cylinder	60 252 kHz	Through Hole	Unshielded	125 °C	-40 C	750 kHz	2.2 mH	252 kHz	80 mA	Ferrite	0.264 in	6.7 mm	8 Ohm
Bourns Inc. RLB0812-332KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	60 252 kHz	Through Hole	Unshielded	125 °C	-40 C	600 kHz	3300 µH	252 kHz	60 mA	Ferrite	0.264 in	6.7 mm	12 Ohm
Bourns Inc. RLB0812-153KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	60 79.6 kHz	Through Hole	Unshielded	125 °C	-40 C	300 kHz	15 mH	79.6 kHz	30 mA	Ferrite	0.264 in	6.7 mm	54 Ohm
Bourns Inc. RLB0812-182KL	11 mm	0.433 in	Drum Core Wirewound	10 %	Radial Vertical Cylinder	60 252 kHz	Through Hole	Unshielded	125 °C	-40 C	800 kHz	1.8 mH	252 kHz	0.09 A	Ferrite	0.264 in	6.7 mm
