LY2-0-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 48V
| Part | Mounting Type | Must Operate Voltage | Contact Material | Release Time | Contact Rating (Current) | Load - Max Switching | Contact Form | Must Release Voltage | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Coil Voltage | Coil Resistance | Coil Type | Operate Time | Switching Voltage | Relay Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

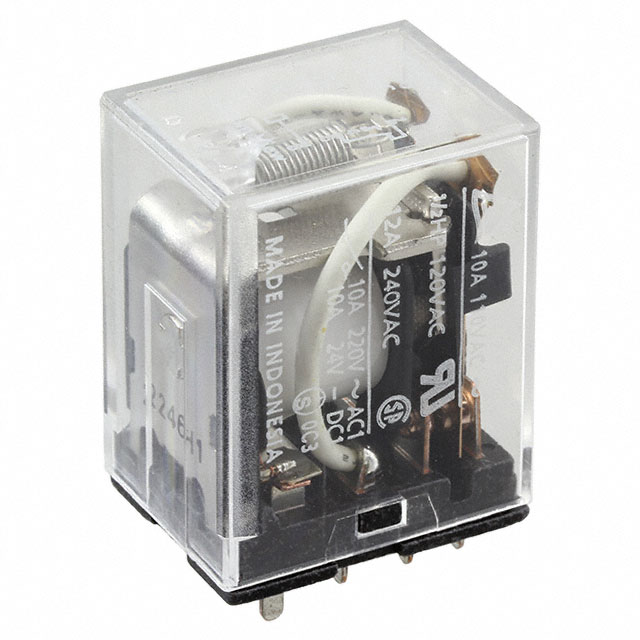

 Omron Electronics Inc-EMC Div | Through Hole | 38.4 VDC | Silver Alloy | 25 ms | 10 A | 1250 W 2500 VA | DPDT (2 Form C) | 4.8 VDC | 18.5 mA | 55 °C | -25 °C | CE CSA TUV UR | 48 VDC | 2.6 kOhms | Non Latching | 25 ms | 125 VDC 250 VAC | General Purpose | PC Pin |

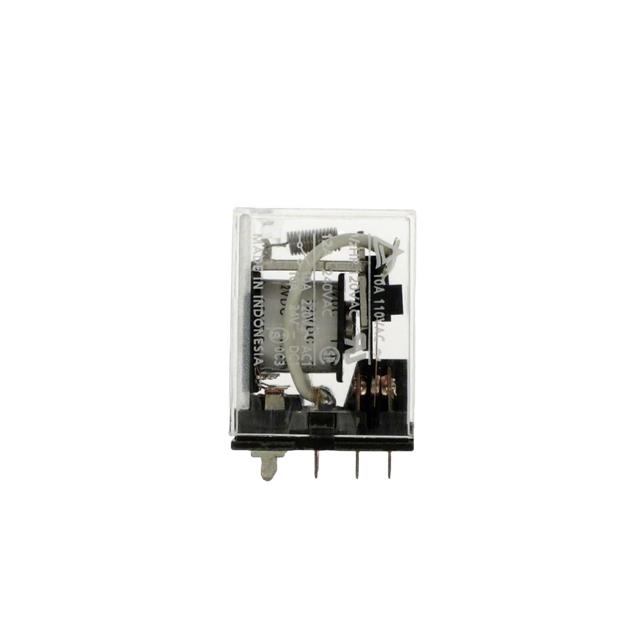

 Omron Electronics Inc-EMC Div | Through Hole | 9.6 VDC | Silver Alloy | 25 ms | 10 A | 1250 W 2500 VA | DPDT (2 Form C) | 1.2 VDC | 75 mA | 55 °C | -25 °C | CE CSA TUV UR | 12 VDC | 160 Ohms | Non Latching | 25 ms | 125 VDC 250 VAC | General Purpose | PC Pin |
 Omron Electronics Inc-EMC Div | Through Hole | 4.8 VDC | Silver Alloy | 25 ms | 10 A | 1250 W 2500 VA | DPDT (2 Form C) | 0.6 VDC | 150 mA | 55 °C | -25 °C | CE CSA TUV UR | 40 Ohms | Non Latching | 25 ms | 125 VDC 250 VAC | General Purpose | PC Pin | |

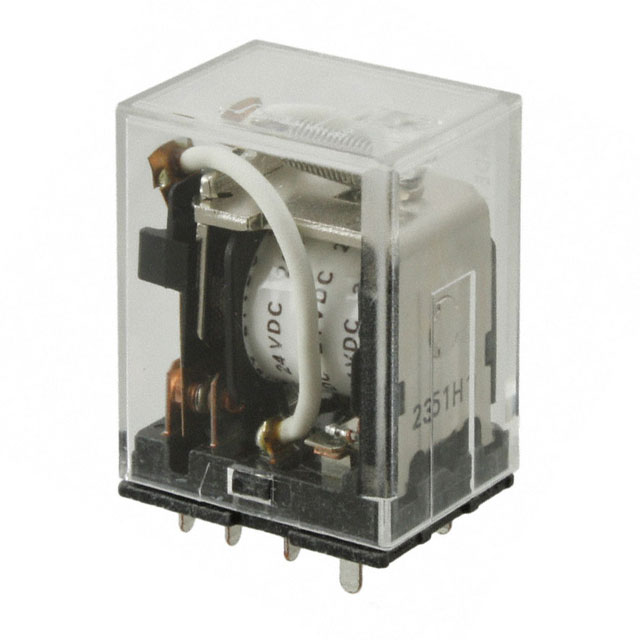

 Omron Electronics Inc-EMC Div | Through Hole | 19.2 VDC | Silver Alloy | 25 ms | 10 A | 1250 W 2500 VA | DPDT (2 Form C) | 2.4 VDC | 36.9 mA | 55 °C | -25 °C | CE CSA TUV UR | 24 VDC | 650 Ohms | Non Latching | 25 ms | 125 VDC 250 VAC | General Purpose | PC Pin |
