681M21W Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 21P PNL MNT SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Color | Current Rating (Amps) | Features | Number of Positions | Contact Finish | Material Flammability Rating | Contact Finish Thickness | Termination | Shell Size, Connector Layout | Flange Feature | Connector Style | Connector Type | Shell Material, Finish | Number of Rows [custom] | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

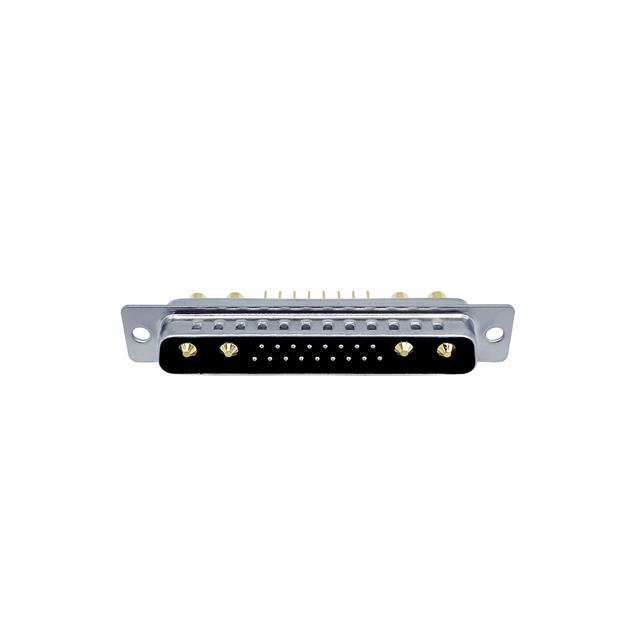

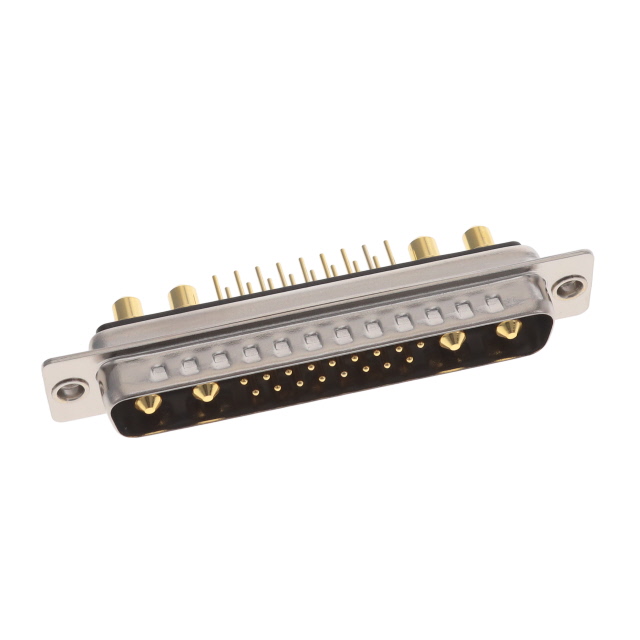

 NorComp Inc. | Copper Alloy | -55 C | 125 °C | 250 V | Polybutylene Terephthalate (PBT) | Black | 5 A 40 A | Board Lock Grounding Indents | 21 | Gold | UL94 V-0 | Flash | Solder | 4 (DC C) - 21WA4 | Board Side (4-40) | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | 2 | Panel Mount Through Hole | Signal and Power |

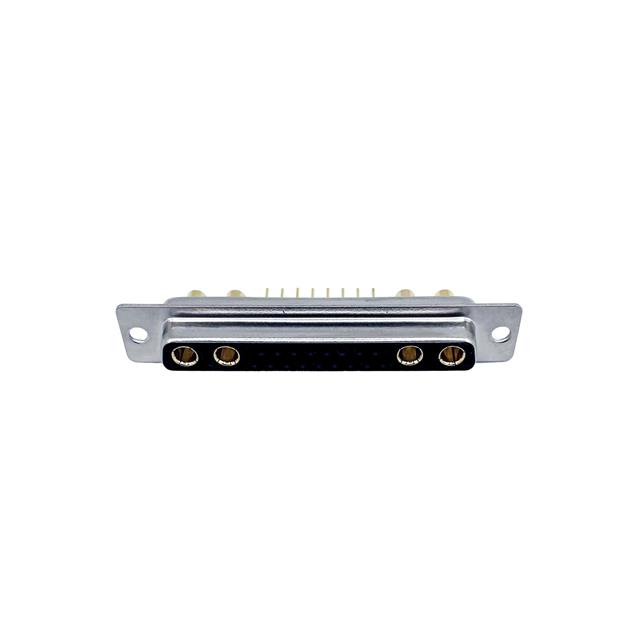

 NorComp Inc. | Copper Alloy | -55 C | 125 °C | 250 V | Polybutylene Terephthalate (PBT) | Black | 5 A 40 A | Board Lock | 21 | Gold | UL94 V-0 | Flash | Solder | 4 (DC C) - 21WA4 | Board Side (4-40) | Combo D-Sub | Receptacle Female Sockets | Nickel Plated Steel | 2 | Panel Mount Through Hole | Signal and Power |
 NorComp Inc. | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | 5 A 40 A | Grounding Indents | 21 | Gold | UL94 V-0 | Flash | Solder | 4 (DC C) - 21WA4 | Board Side (4-40) | Combo D-Sub | Plug Male Pins | Nickel Plated Steel | 2 | Panel Mount Through Hole | Signal and Power |
