SI8281 Series

Catalog

OPTOCOUPLER DRIVE PUSH-PULL 1-CH 5.5V 1500V 20-PIN SOIC W

Part	Common Mode Transient Immunity (Min) [Min]	Qualification	Approval Agency	Mounting Type	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Current - Peak Output	Propagation Delay tpLH / tpHL (Max) [Max]	Grade	Number of Channels [custom]	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Supplier Device Package	Supplied Contents	Function	Utilized IC / Part	Contents	Type
Skyworks Solutions Inc. SI8281BC-IS	35 kV/µs	AEC-Q100	CQC CSA UL VDE	Surface Mount	2.8 V	5.5 V	2.5 A	3 A	20-SOIC (0.295" 7.50mm Width)	4 A	50 ns	Automotive	1	5 ns	125 °C	-40 C	Capacitive Coupling	20-SOIC

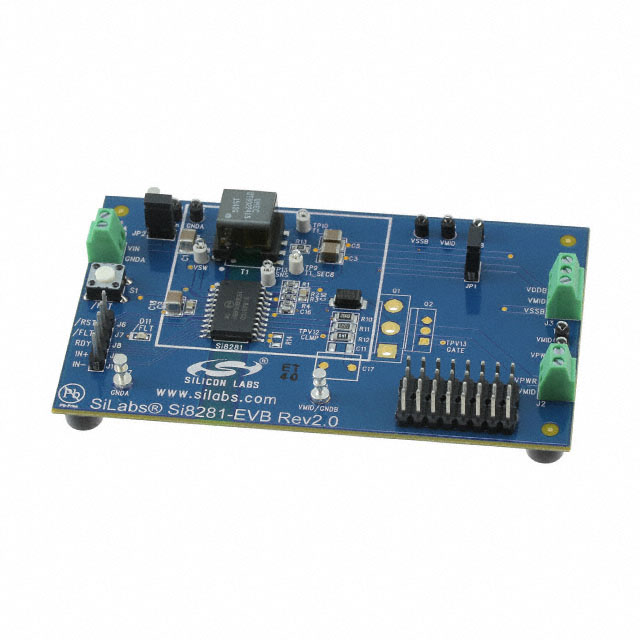

Skyworks Solutions Inc. SI8281-KIT																			Board(s)	Gate Driver	Si8281	Board(s)	Power Management
Skyworks Solutions Inc. SI8281CC-IS	35 kV/µs	AEC-Q100	CQC CSA UL VDE	Surface Mount	2.8 V	5.5 V	2.5 A	3 A	20-SOIC (0.295" 7.50mm Width)	4 A	50 ns	Automotive	1	5 ns	125 °C	-40 C	Capacitive Coupling	20-SOIC
Skyworks Solutions Inc. SI8281CC-ISR	35 kV/µs	AEC-Q100	CQC CSA UL VDE	Surface Mount	2.8 V	5.5 V	2.5 A	3 A	20-SOIC (0.295" 7.50mm Width)	4 A	50 ns	Automotive	1	5 ns	125 °C	-40 C	Capacitive Coupling	20-SOIC
