sra Series
Manufacturer: Switch Components
Beta
⌘K
ROCKER; SP3T; POS: 3; ON-OFF-(ON); 10A/28VDC; BLACK; IP56; NONE; SRA
| Part | Mechanical Life (Cycles) | Electrical Life (Cycles) | Actuator Type | Quick Connect Size (0.250") | Termination Style | Voltage Rating - AC | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - DC | Color - Actuator/Cap | Mounting Type | Circuit | Switch Function | Approval Agency | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Actuator Marking | Ingress Protection IP Rating | Ingress Protection Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

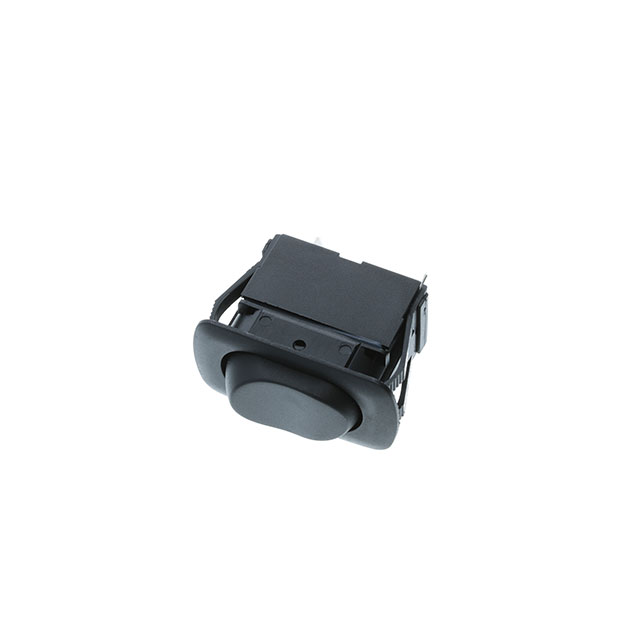

 Switch Components | 10000 Cycles | 6000 Cycles | Concave (Curved) | 0.25 in | Quick Connect | 125 V | 18 A 21 A | 85 °C | -20 °C | 14 V | Black | Panel Mount Snap-In | SPDT | On-Off-Mom | CSA cURus ENEC | 21.2 mm | Rectangular | 36.6 mm | No Marking | IP56 | Dust Protected Water Resistant |

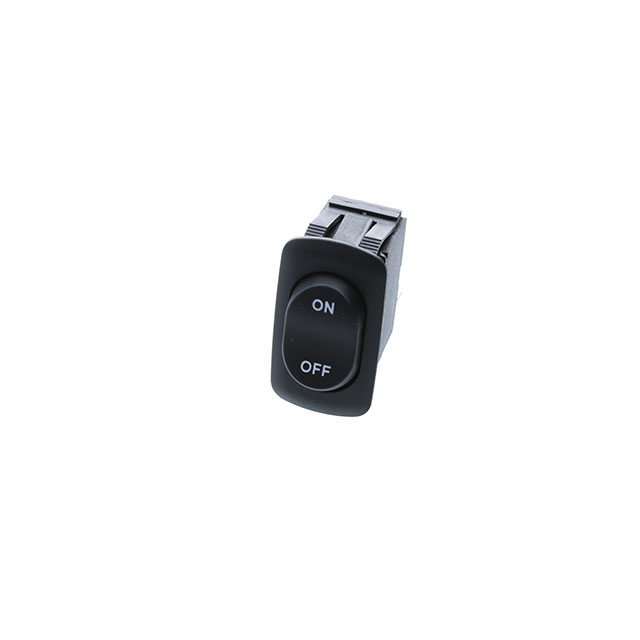

 Switch Components | 10000 Cycles | 6000 Cycles | Concave (Curved) | 0.25 in | Quick Connect | 125 V | 16 A 21 A | 85 °C | -20 °C | 14 V | Black | Panel Mount Snap-In | SPST | On-Off | CSA cURus ENEC | 21.2 mm | Rectangular | 36.6 mm | ON OFF Vertical | IP56 | Dust Protected Water Resistant |
