LSA28 Series
Manufacturer: ConductRF
Catalog
CBL ASSY SMA-MCX PLUG-PLUG 12"
| Part | 2nd Contact Gender | 1st Contact Gender | Connector Impedance | Cable Type Size | Cable Type | Cable Outer Diameter | Cable Diameter | Operating Temperature (Max) | Operating Temperature (Min) | 1st Connector Mounting Type | Color | 2nd Connector Mounting Type | Features | Overall Impedance | Length | 1st Connector | Frequency - Max | Style | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

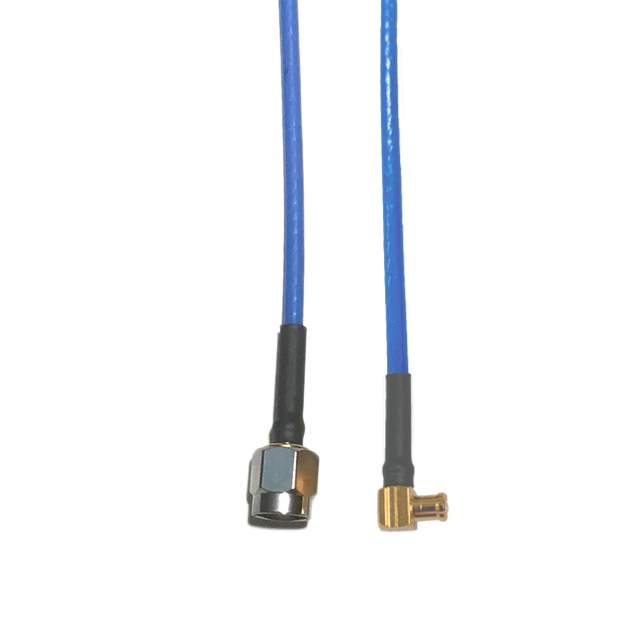

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 12 in | MCX Plug Right Angle | 6000 MHz | MCX SMA | SMA Plug |

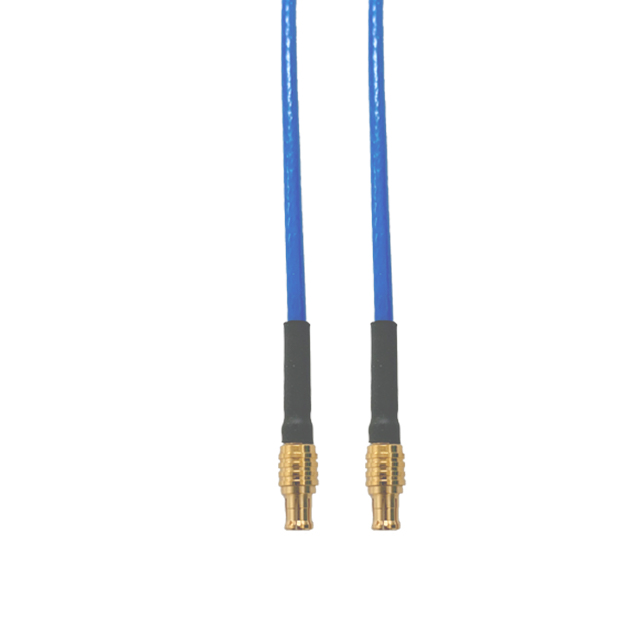

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 0.5 ft | MCX Plug | 6000 MHz | MCX | MCX Plug |

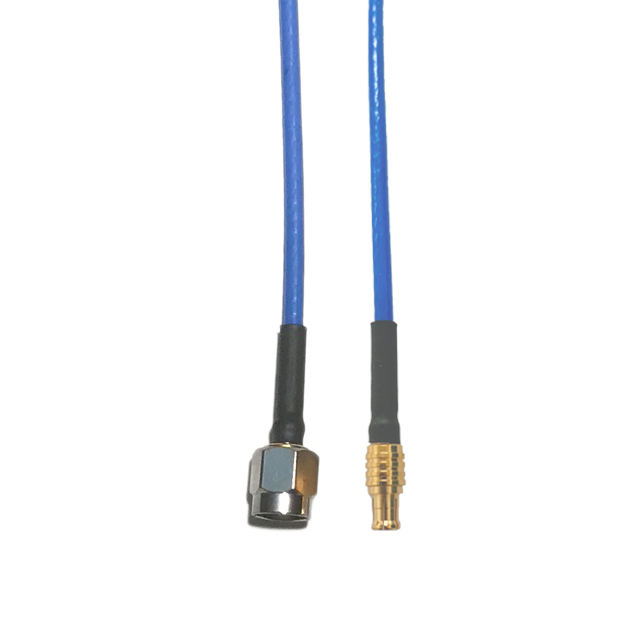

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 0.5 ft | MCX Plug | 6000 MHz | MCX SMA | SMA Plug |

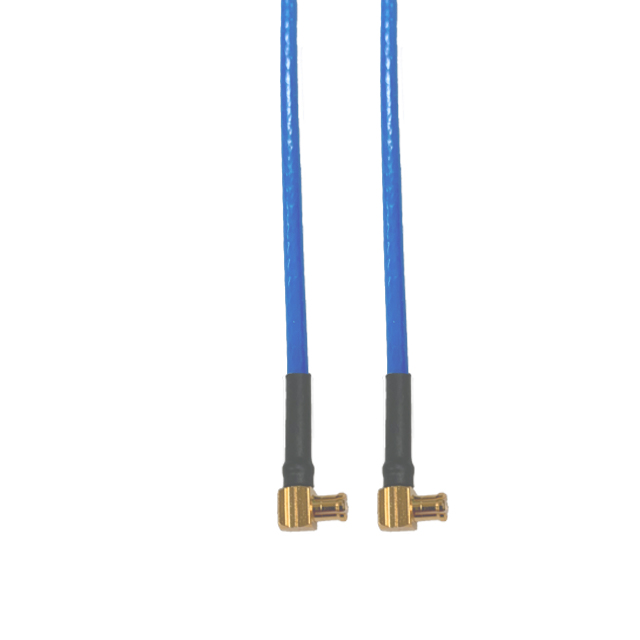

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 18 in | MCX Plug Right Angle | 6000 MHz | MCX | MCX Plug Right Angle |

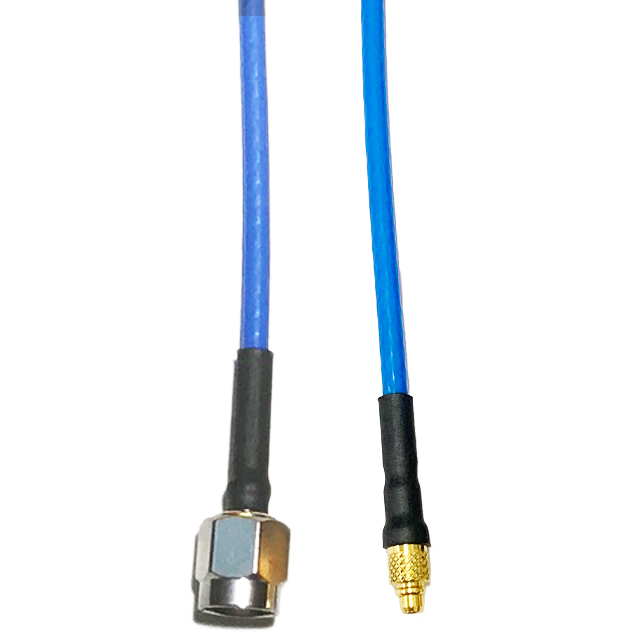

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 18 in | SMA Plug | 6000 MHz | MMCX SMA | MMCX Plug |
ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 12 in | MCX Plug Right Angle | 6000 MHz | MCX | MCX Plug Right Angle |

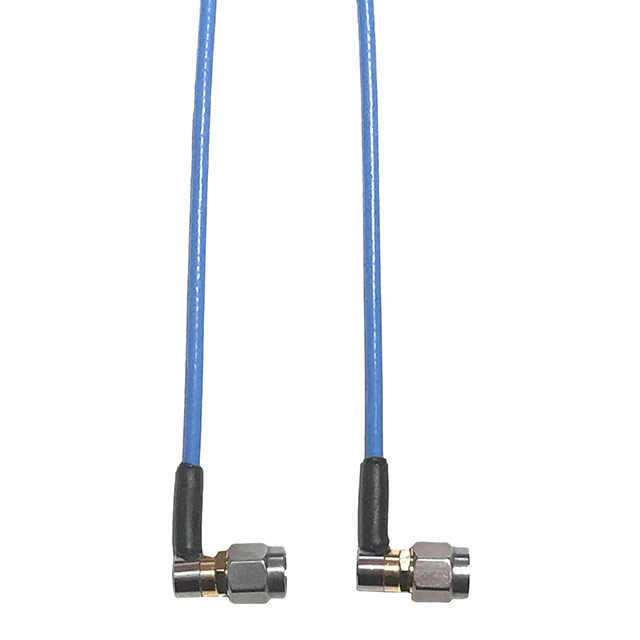

 ConductRF | Male | Male | 50 Ohms | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 8 in | Right Angle SMA Plug | 18 GHz | SMA | Right Angle SMA Plug | |

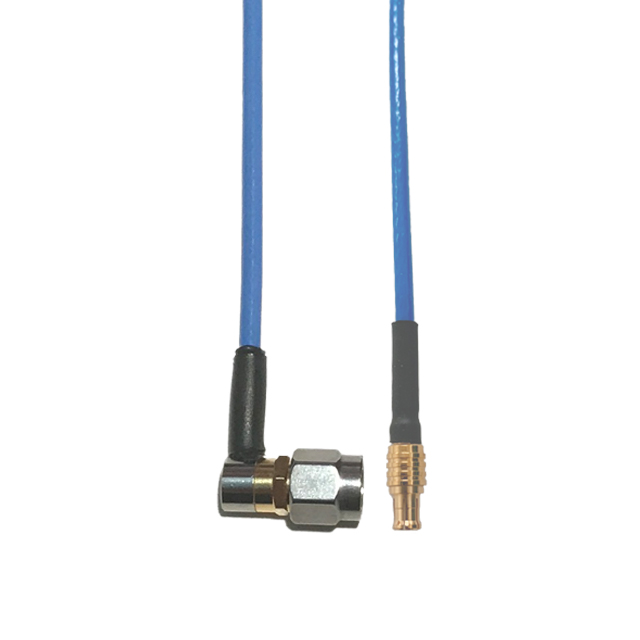

 ConductRF | Male | Male | 50 Ohms | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 18 in | MCX Plug | 18 GHz | MCX SMA | Right Angle SMA Plug | |

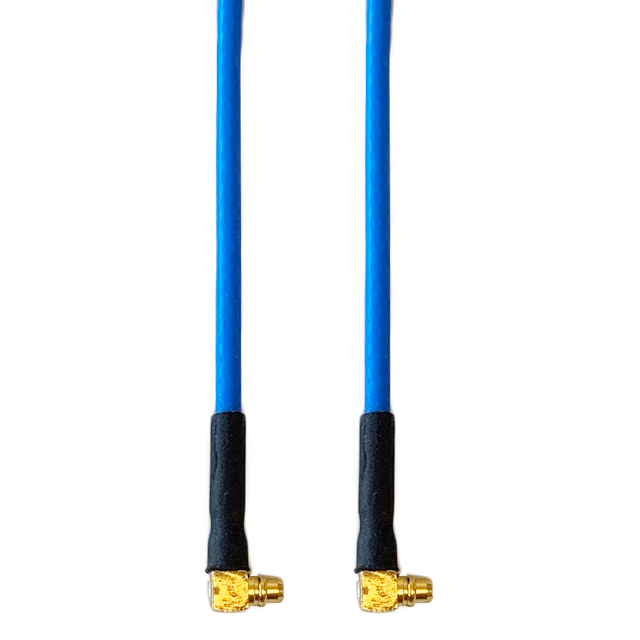

 ConductRF | Male | Male | 50 Ohms | 0.085 | Flexible Cable | 0.085 " | 0.085 " | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 0.5 ft | MMCX Plug Right Angle | 6000 MHz | MMCX | MMCX Plug Right Angle |
 ConductRF | Male | Male | 50 Ohms | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | 125 °C | -55 °C | Free Hanging (In-Line) | Blue | Free Hanging (In-Line) | Shielded | 50 Ohms | 12 in | SMA Plug | 18 GHz | SMA | SMA Plug |
