K50ABT Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

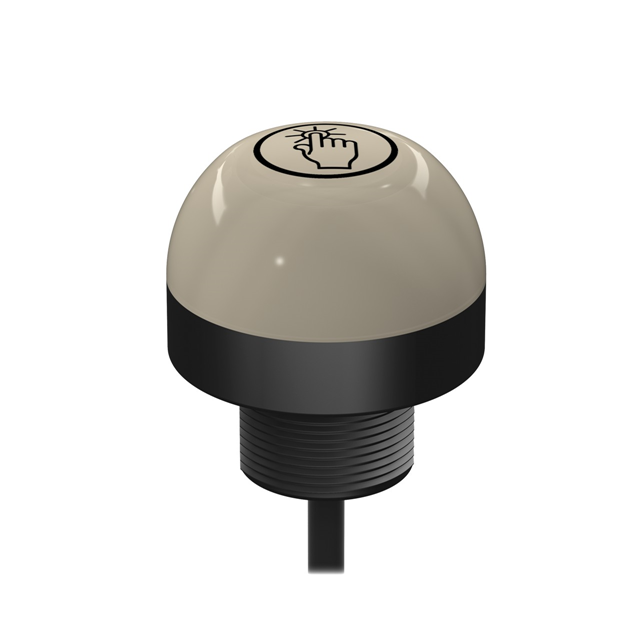

K50 SERIES EZ-LIGHT: 1-COLOR TOUCH SENSOR GEN 2
| Part | Ingress Protection | Switch Function | Approval Agency | Circuit | Response Time | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Termination Style | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Cable Leads | Button Domed Round |
 BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green/Green LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Connector (M12) | Button Domed Round |
 BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Connector (M12) | Button Domed Round |
BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green/Red LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Connector (M12) | Button Domed Round |
BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green/Yellow LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Connector (M12) | Button Domed Round |
BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Connector (M12) | Button Domed Round |
BANNER ENGINEERING | IP67/IP69K | Off-Mom | CE cULus | SPST-NO | 50 ms | 30 mm | Green LED | Panel Mount Front | -40 C | 50 °C | 12 VDC | 30 VDC | Cable with Connector (M12) | Button Domed Round |
