DC0001/14 Series

Catalog

THERM PAD 45.21X31.75MM W/ADH

Part	Shelf Life	Color	Outline [x]	Outline [y]	Adhesive	Thermal Conductivity	Shape	Usage	Thickness	Thickness	Type	Thickness	Backing, Carrier	Material	Shelf Life Start

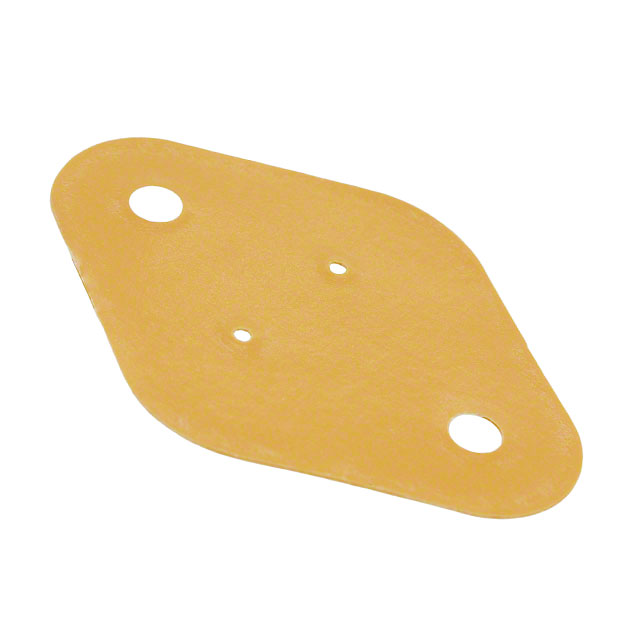

t-Global Technology DC0001/14-TG-A373F-0.25-2A	12 Months	Yellow	45.21 mm	31.75 mm	Adhesive - Both Sides	1.4 W/m-K	Rhombus	TO-3	0.01 in	10 mils	Die-Cut Pad Sheet

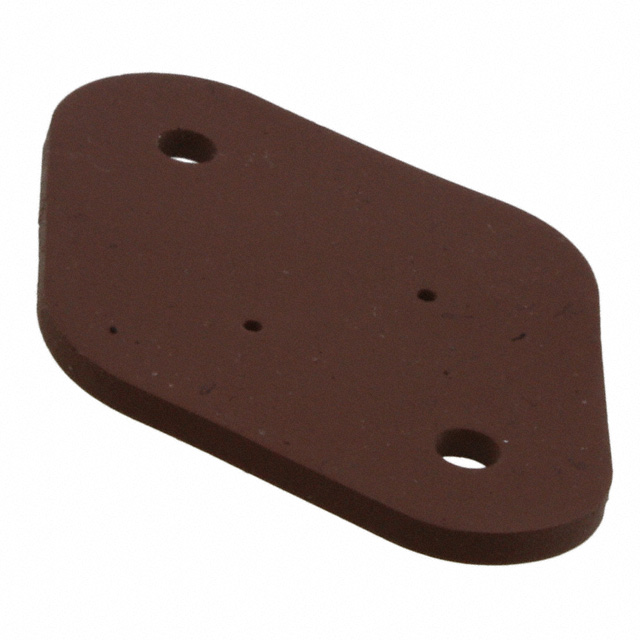

t-Global Technology DC0001/14-TG-AH482-2.0-0	24 Months	Red	45.21 mm	31.75 mm		2.2 W/m-K	Rhombus	TO-3		2 mm	Die-Cut Pad Sheet	0.079 in

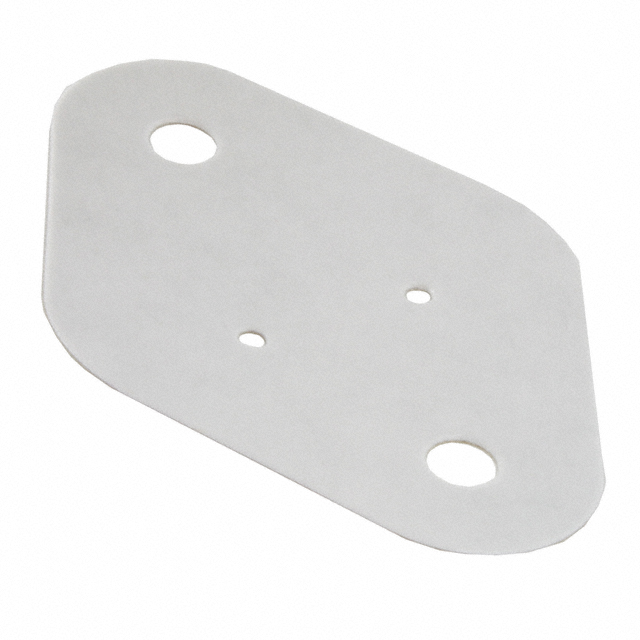

t-Global Technology DC0001/14-TI900-0.12-2A	24 Months	White	45.21 mm	31.75 mm	Adhesive - Both Sides	1.8 W/m-K	Rhombus	TO-3		5 mils	Die-Cut Pad Sheet	0.005 in	Viscose	Silicone

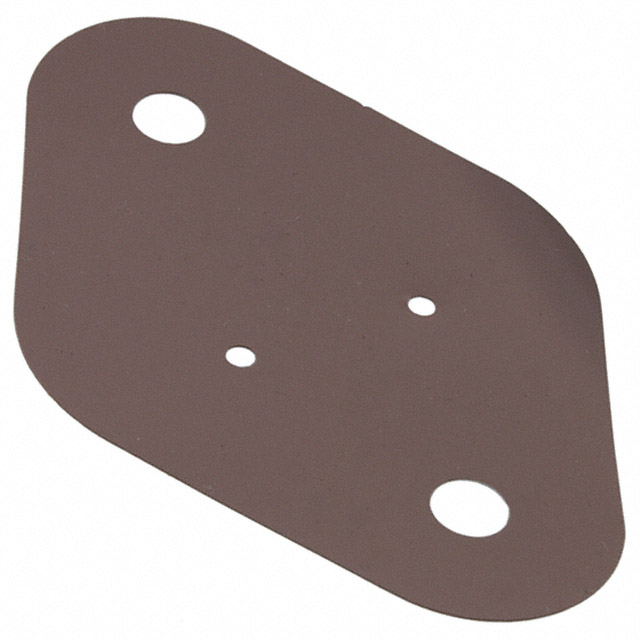

t-Global Technology DC0001/14-TG-A482K-0.1-0	24 Months	Red	45.21 mm	31.75 mm		2.3 W/m-K	Rhombus	TO-3		0.1 mm	Die-Cut Pad Sheet	0.0039 in		Silicone	Date of Purchase

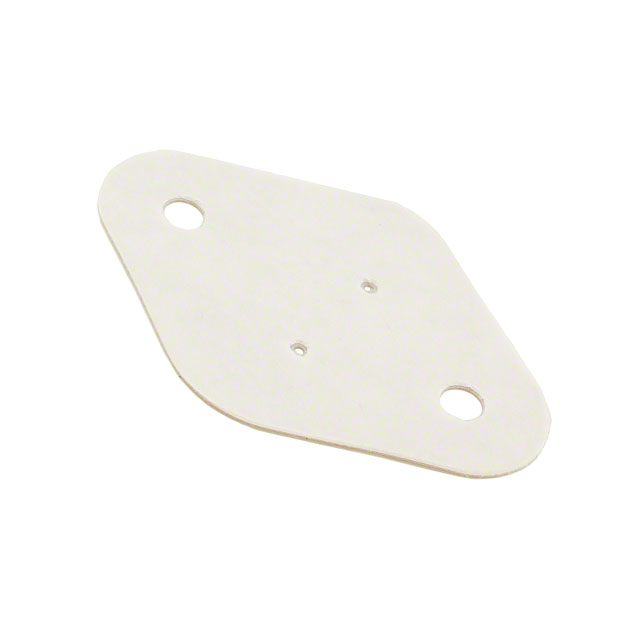

t-Global Technology DC0001/14-TG-A486G-0.3-2A	12 Months	Gray	45.21 mm	31.75 mm	Adhesive - Both Sides	6 W/m-K	Rhombus	TO-3		0.305 mm	Die-Cut Pad Sheet	0.012 in			Date of Purchase
