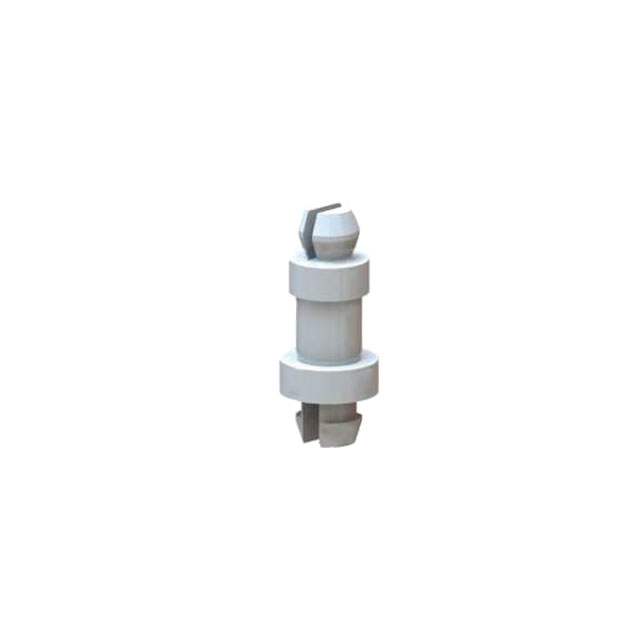

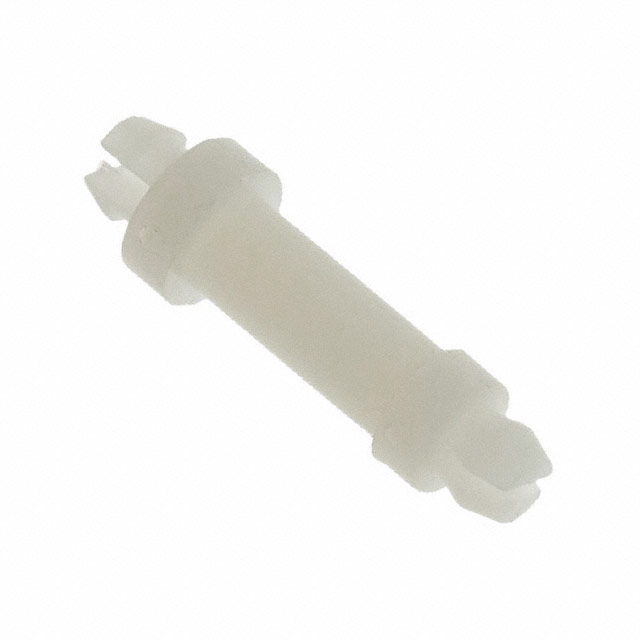

MSPS Series
Manufacturer: Essentra Components
Beta
⌘K
SUPT POST MINI .27"DIA FR 3/16"
| Part | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Between Board Height | Between Board Height | Length - Overall [x] | Length - Overall [x] | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Holding Type | Material | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Between Board Height [z] | Between Board Height [z] | Between Board Height | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.157 " | 4 mm | 0.189 in | 4.8 mm | 0.472 in | 12 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | |||||
 Essentra Components | 0.157 " | 3.99 mm | 6.35 mm | 0.25 in | 0.534 in | 13.56 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Fit | Nylon | 0.062 " | 0.0625 " | 1.57 mm | |||||
 Essentra Components | 0.157 " | 4 mm | 0.752 in | 19.1 mm | 1.035 in | 26.3 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | |||||
Essentra Components | 0.157 " | 4 mm | 0.594 in | 15.1 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 7.9 mm | 0.311 " | |||||
Essentra Components | 0.157 " | 4 mm | 0.374 in | 9.5 mm | 0.657 in | 16.7 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | |||||
 Essentra Components | 0.157 " | 3.99 mm | 0.625 in | 15.88 mm | 0.908 in | 23.06 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Fit | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 5 8 | ||||
Essentra Components | 0.157 " | 4 mm | 6.4 mm | 0.535 in | 13.6 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 0.252 in | |||||
Essentra Components | 0.157 " | 4 mm | 0.626 " | 15.9 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 0.909 in | 23.1 mm | |||||
Essentra Components | 0.157 " | 4 mm | 0.689 " | 17.5 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.157 in | 4 mm | Snap Lock | Snap Lock | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 0.972 in | 24.7 mm |
