796634 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 19POS 5.08MM

Part	Contact Material	Screw Size	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Torque - Screw	Torque - Screw	Insulation Height	Insulation Height	Number of Levels	Voltage - UL	Pitch	Pitch	Termination Style	Plug Wire Entry	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Contact Mating Finish	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Color	Mounting Type	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 1-796634-9	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	19	Tin	3 mm²	0.05 mm²	-40 C	110 °C	19	Green	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-796634-1	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	21	Tin	3 mm²	0.05 mm²	-40 C	110 °C	21	Green	Free Hanging (In-Line)

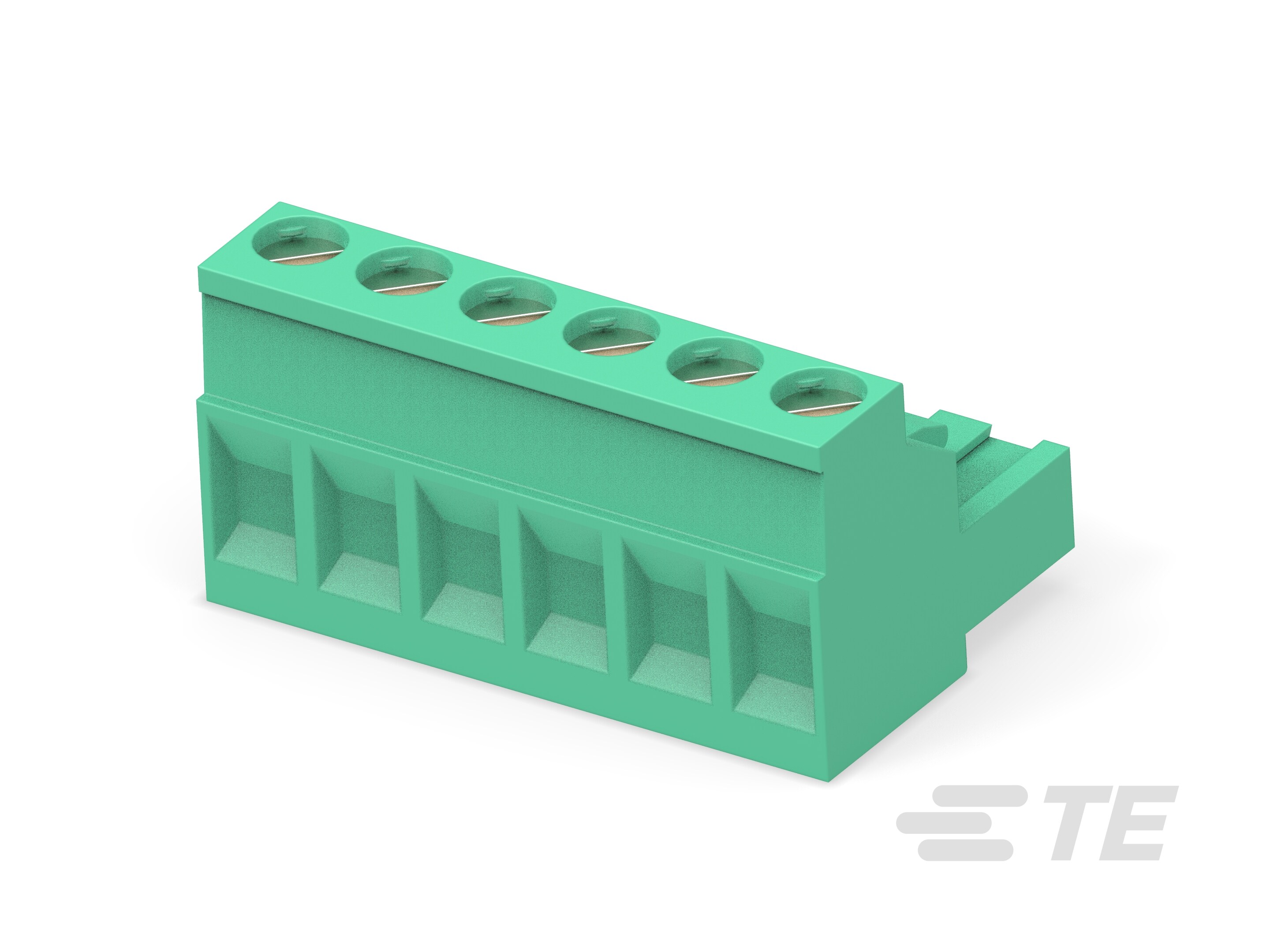

TE Connectivity AMP Connectors 796634-6	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	6	Tin	3 mm²	0.05 mm²	-40 C	110 °C	6	Green	Free Hanging (In-Line)

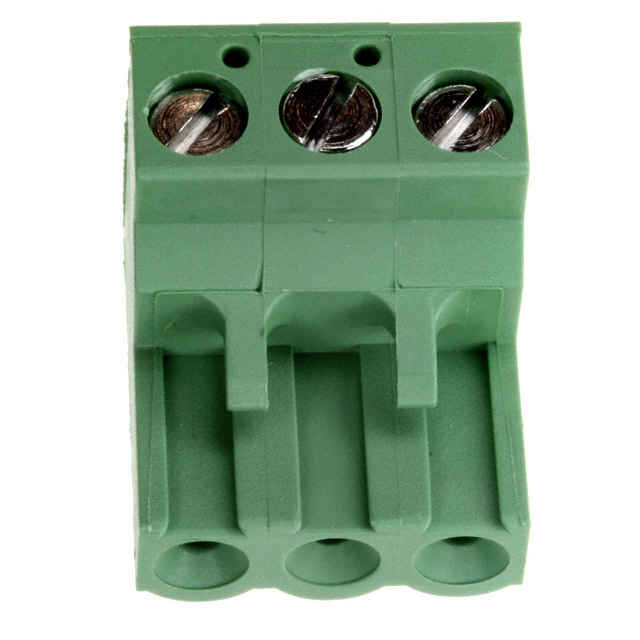

TE Connectivity AMP Connectors 796634-3										1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG		Tin	3 mm²	0.05 mm²	-40 C	105 ░C	3	Green	Free Hanging (In-Line)
TE Connectivity AMP Connectors 796634-8	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	8	Tin	3 mm²	0.05 mm²	-40 C	110 °C	8	Green	Free Hanging (In-Line)
TE Connectivity AMP Connectors 4-796634-1	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	11	Tin	3 mm²	0.05 mm²	-40 C	110 °C	11	Green	Free Hanging (In-Line)	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 5-796634-5	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	5	Gold	3 mm²	0.05 mm²	-40 C	110 °C	5	Green	Free Hanging (In-Line)

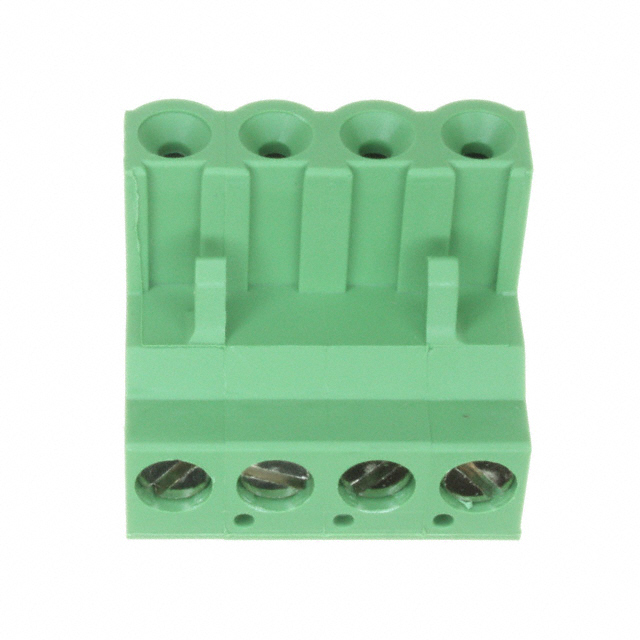

TE Connectivity AMP Connectors 796634-4	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	4	Tin	3 mm²	0.05 mm²	-40 C	110 °C	4	Green	Free Hanging (In-Line)		3 mm˛	0.05 mm˛

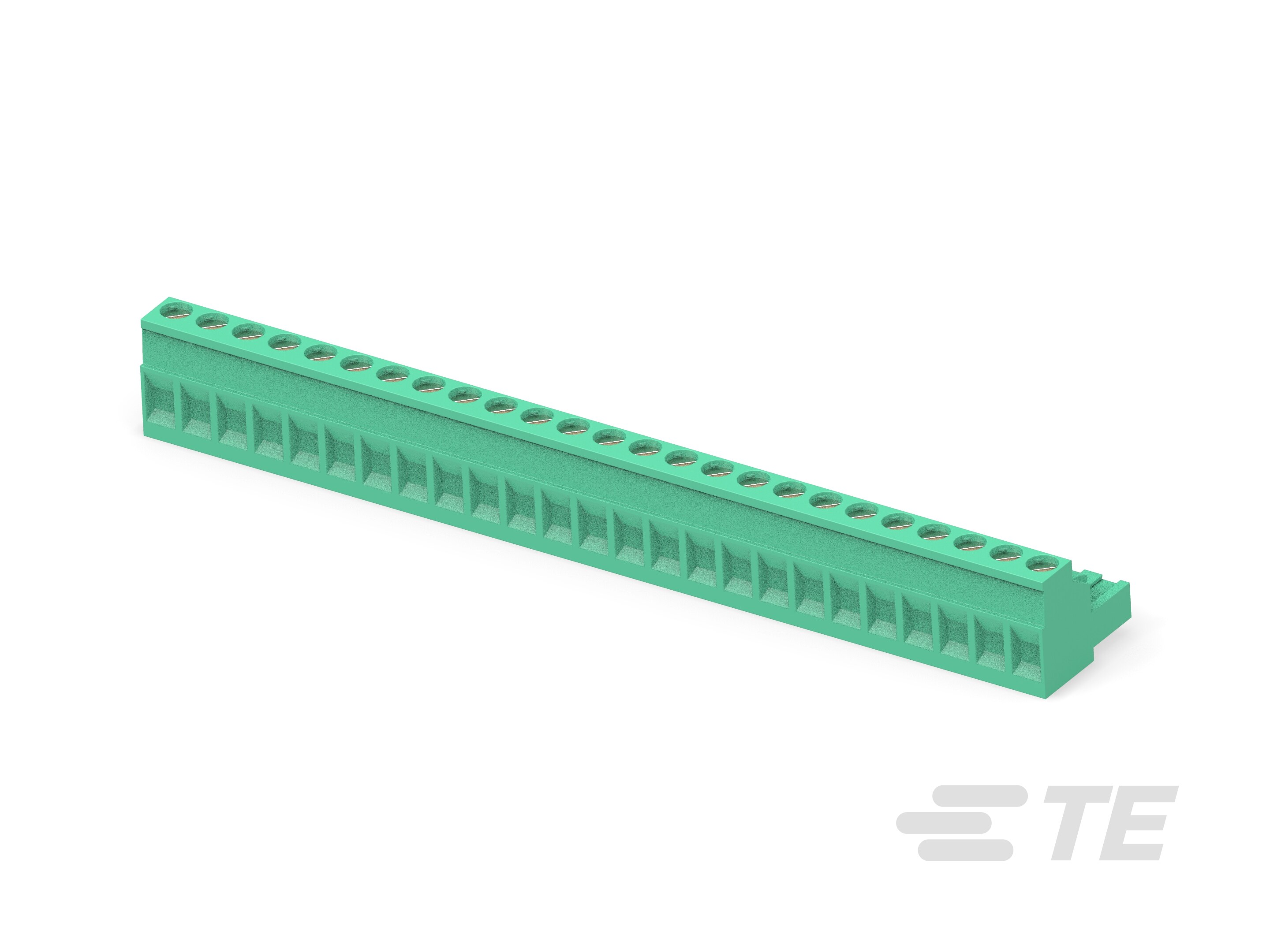

TE Connectivity AMP Connectors 2-796634-5	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	25	Tin	3 mm²	0.05 mm²	-40 C	110 °C	25	Green	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-796634-0	Phosphor Bronze	M3	7.5 mm	6 mm	UL94 V-0	7 Lb-In	0.79 Nm	0.61 in	15.49 mm	1	300 V	5.08 mm	0.2 in	Screw - Rising Cage Clamp	180 °	Plug Female Sockets	30 AWG	12 AWG	20	Tin	3 mm²	0.05 mm²	-40 C	110 °C	20	Green	Free Hanging (In-Line)
