408-023 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Part	Termination Rows [custom]	Material - Insulation	Card Type	Termination	Features	Color	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Pitch	Pitch	Contact Material	Mounting Type	Number of Rows [custom]	Card Thickness	Card Thickness

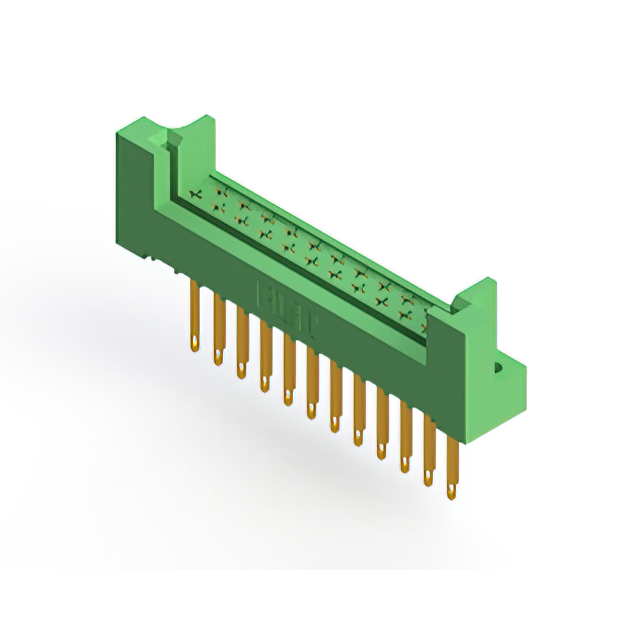

EDAC Inc. 408-023-540-222	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Wire Wrap	Card Guides	Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "
EDAC Inc. 408-023-524-112	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	1.57 mm	0.062 in
EDAC Inc. 408-023-525-122	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "

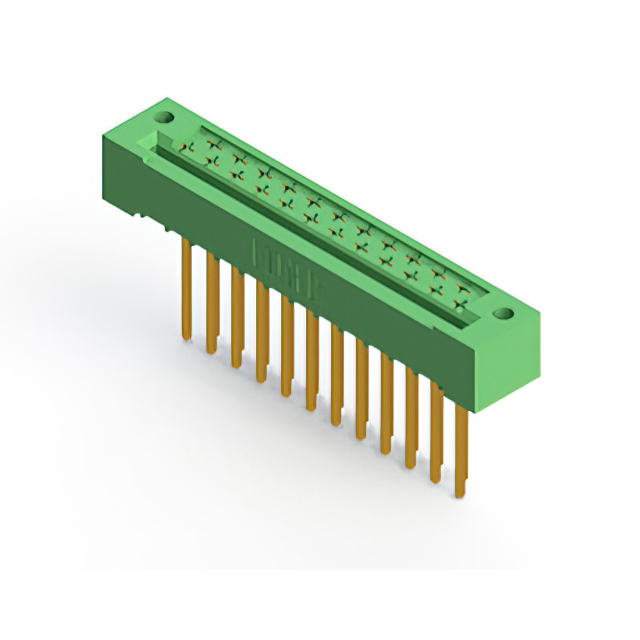

EDAC Inc. 408-023-542-112	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Wire Wrap		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	1.57 mm	0.062 in
EDAC Inc. 408-023-524-122	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "

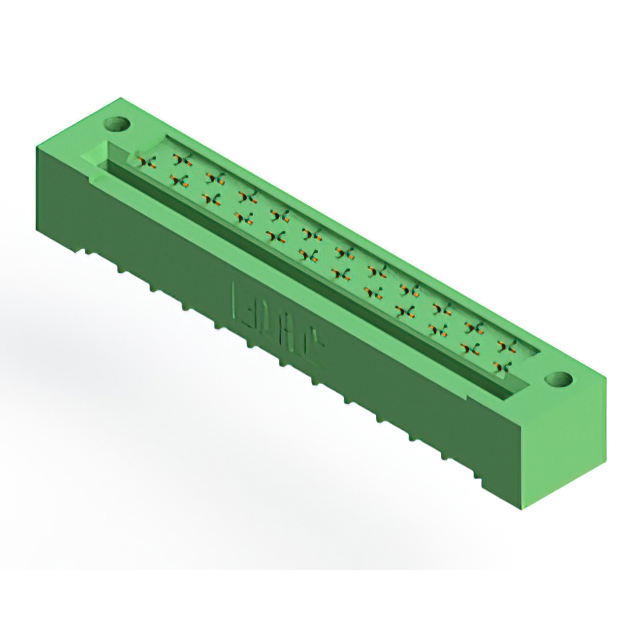

EDAC Inc. 408-023-522-112	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	1.57 mm	0.062 in
EDAC Inc. 408-023-522-122	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "
EDAC Inc. 408-023-502-122	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "

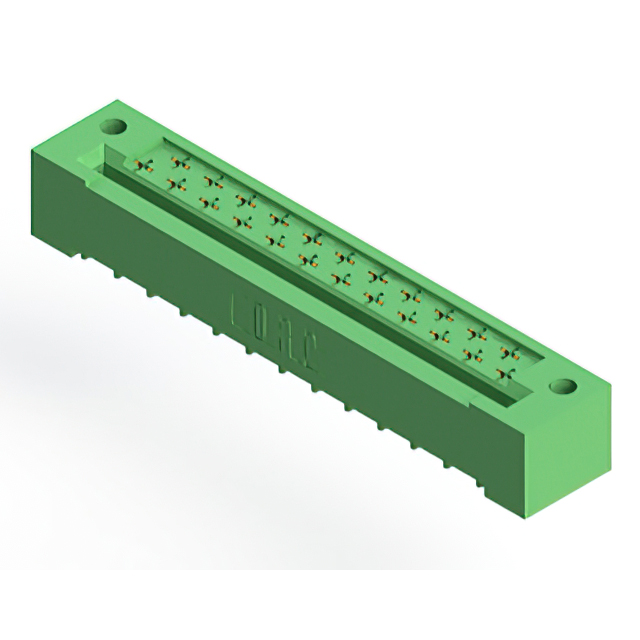

EDAC Inc. 408-023-523-112	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	1.57 mm	0.062 in

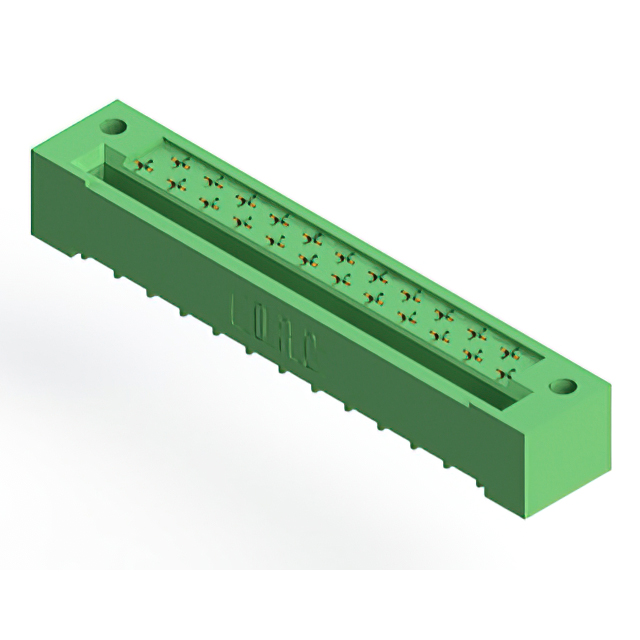

EDAC Inc. 408-023-523-122	2	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Solder		Green	0.25 Ám	10 Áin	Female	23	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	5.08 mm	0.2 in	Copper Alloy	Panel Mount Through Hole	2	2.36 mm	0.093 "
