PH-MVP-26 Series
Manufacturer: Adam Tech
Beta
⌘K

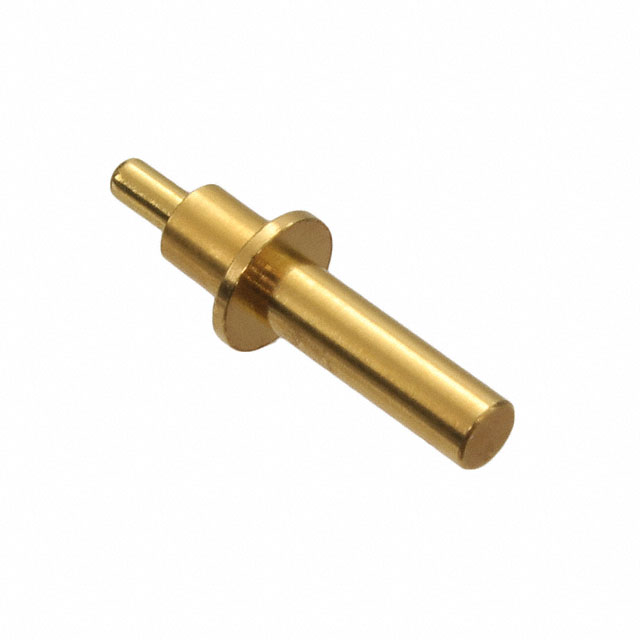

CONTACT SPRING LOADED T/H GLD WP
| Part | Contact Material | Features | Operating Force - Initial | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Current Rating (Amps) | Mounting Type | Contact Finish | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height [z] | Minimum Working Height [z] | Contact Type | Maximum Working Height | Maximum Working Height [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | IP67 | 20 gf | 0.25 Ám | 10 Áin | 0.091 in | 2.3 mm | 10 A | Through Hole | Gold | 20000 | 1.2 mm | 0.047 " | 10.2 mm | 0.402 in | Sleeve & Plunger (Pogo Pins) | 12.7 mm | 0.5 in |
