284049 Series

Catalog

TERM BLOCK PLUG 2POS 7.62MM

Part	Features	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Material Flammability Rating	Color	Insulation Height	Insulation Height	Positions Per Level	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Positions	Mounting Type	Contact Mating Finish	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Type	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Screw Size	Termination Style	Plug Wire Entry	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

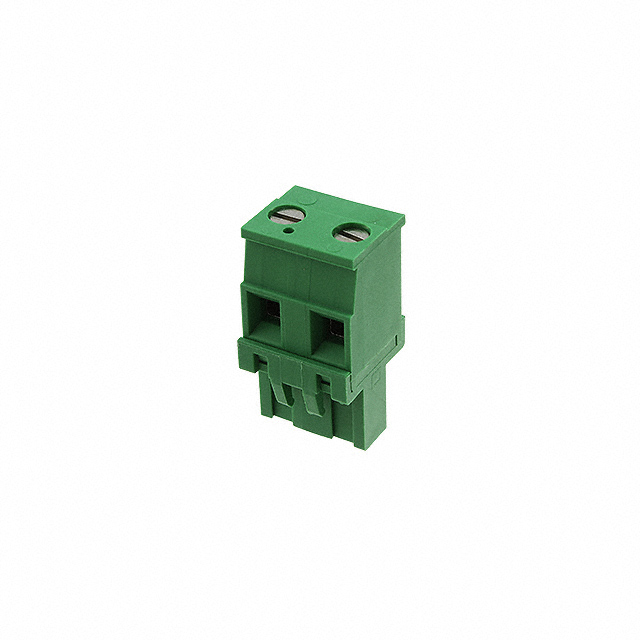

TE Connectivity Raychem Cable Protection 284049-2	Retention Latches (Wire Side)	30 AWG	12 AWG	1	3 mm˛	0.05 mm˛	UL94 V-0	Green	25 mm	0.984 in	2	Phosphor Bronze	7.5 mm	6 mm	2	Free Hanging (In-Line)	Tin	300 V	-40 °C	110 °C	Plug Female Sockets	0.3 in	7.62 mm	0.79 Nm	7 Lb-In	M3	Screw - Rising Cage Clamp	90 °
TE Connectivity Raychem Cable Protection 284049-7	Retention Latches (Wire Side)	30 AWG	12 AWG	1			UL94 V-0	Green	25 mm	0.984 in	7	Phosphor Bronze	7.5 mm	6 mm	7	Free Hanging (In-Line)	Tin	300 V	-40 °C	110 °C	Plug Female Sockets	0.3 in	7.62 mm	0.79 Nm	7 Lb-In	M3	Screw - Rising Cage Clamp	90 °	0.05 mm²	3 mm²
TE Connectivity Raychem Cable Protection 284049-6	Retention Latches (Wire Side)	30 AWG	12 AWG	1	3 mm˛	0.05 mm˛	UL94 V-0	Green	25 mm	0.984 in	6	Phosphor Bronze	7.5 mm	6 mm	6	Free Hanging (In-Line)	Tin	300 V	-40 °C	110 °C	Plug Female Sockets	0.3 in	7.62 mm	0.79 Nm	7 Lb-In	M3	Screw - Rising Cage Clamp	90 °
