ECW-F2125 Series

Catalog

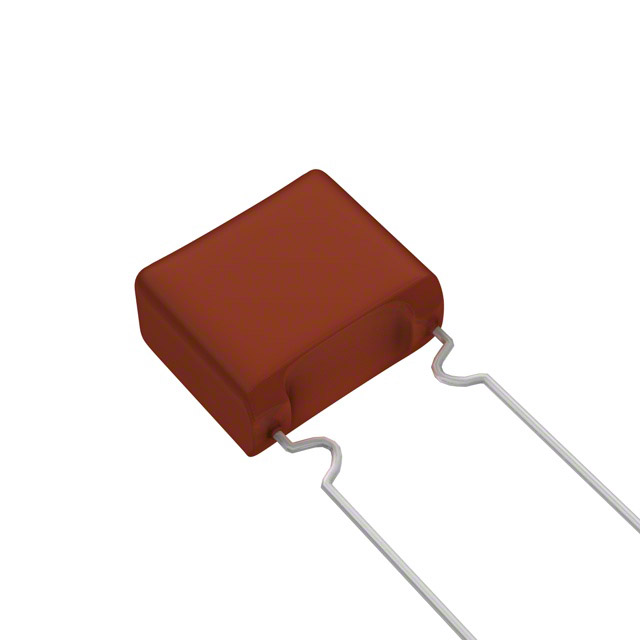

CAP FILM 1.2UF 3% 250VDC RADIAL

Part	Dielectric Material	Applications	Termination	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Capacitance	Lead Spacing	Lead Spacing	Voltage Rating - DC	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECW-F2125HAB	Metallized Polypropylene (PP)	High Frequency Switching	PC Pins	3 %	-40 °C	105 ░C	21.1 mm	0.831 "	0.374 in	9.5 mm	0.74 in	18.8 mm	Radial	1.2 µF	7.5 mm	0.295 in	250 V	Through Hole
Panasonic Industrial Automation Sales ECW-F2125RHA	Metallized Polypropylene (PP)	High Frequency Switching	PC Pins	3 %	-40 °C	105 ░C			0.374 in	9.5 mm	0.74 in	18.8 mm	Radial	1.2 µF	15 mm	0.591 in	250 V	Through Hole	16.1 mm	0.634 in
