NGCPB10 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH LIMIT
| Part | Termination Style | Circuit | Overtravel | Overtravel | Operating Temperature [Min] | Operating Temperature [Max] | Pretravel | Pretravel | Electrical Life | Operating Force | Operating Position | Operating Position | Ingress Protection | Release Force | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Actuator Type | Differential Travel | Differential Travel | Mechanical Life | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||

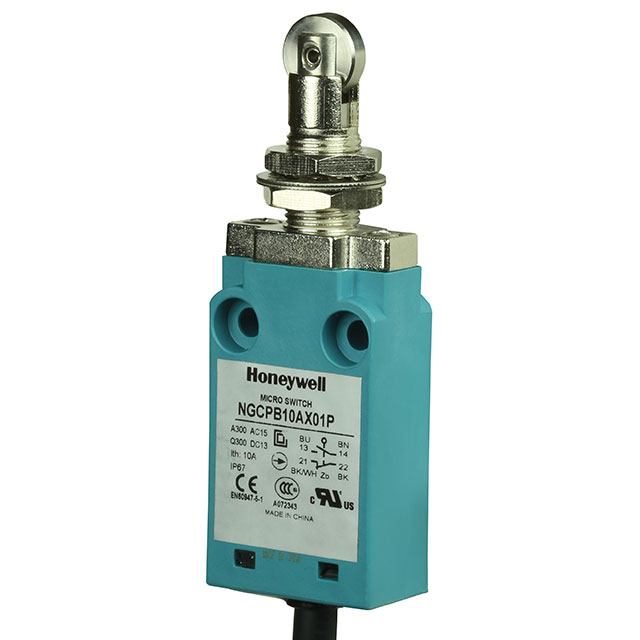

 Honeywell Sensing and Productivity Solutions | Cable Leads | DPST-NO/NC | 0.193 in | 4.9 mm | -25 °C | 75 ░C | 2.1 mm | 0.083 in | 500000 Cycles | 1122 gf | 0.083 in | 2.1 mm | IP67 - Dust Tight Waterproof | 306 gf | 125 VDC | 6 A 550 mA | Off-Mom On-Mom | Roller Plunger | 0.047 in | 1.2 mm | 5000000 Cycles | 120 V |

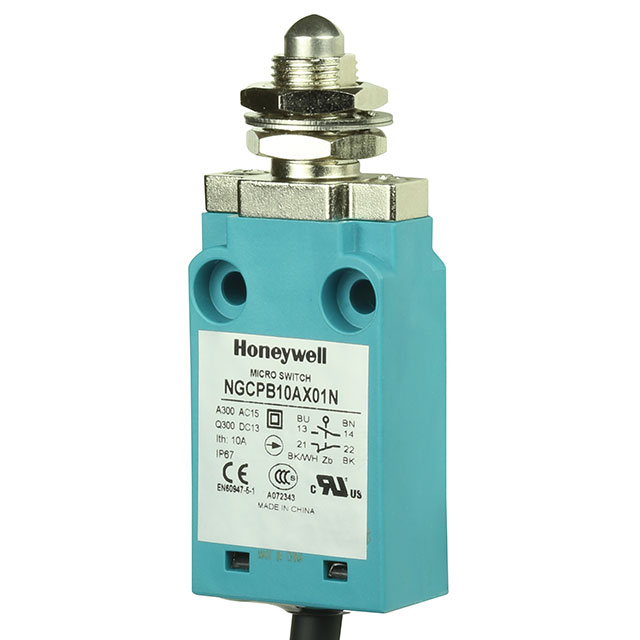

 Honeywell Sensing and Productivity Solutions | Cable Leads | DPST-NO/NC | 0.193 in | 4.9 mm | -25 °C | 75 ░C | 2.1 mm | 0.083 in | 500000 Cycles | 1122 gf | 0.083 in | 2.1 mm | IP67 - Dust Tight Waterproof | 306 gf | 125 VDC | 6 A 550 mA | Off-Mom On-Mom | Round (Pin Plunger) | 0.047 in | 1.2 mm | 5000000 Cycles | 120 V |
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions |
