R22272 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

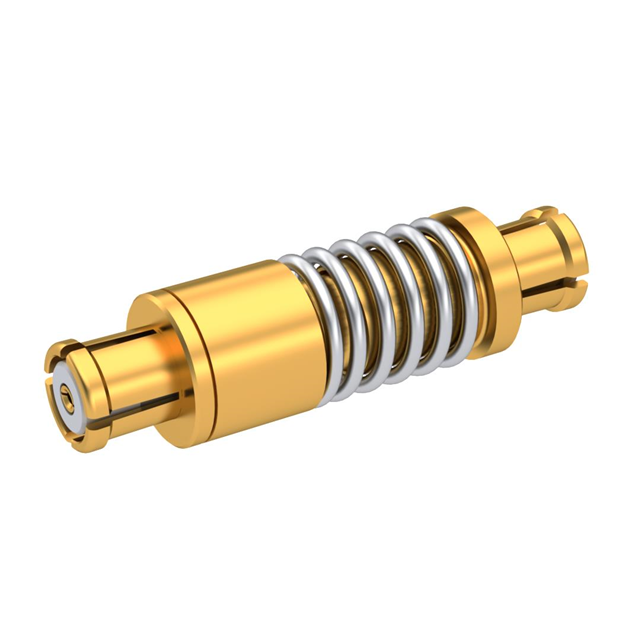

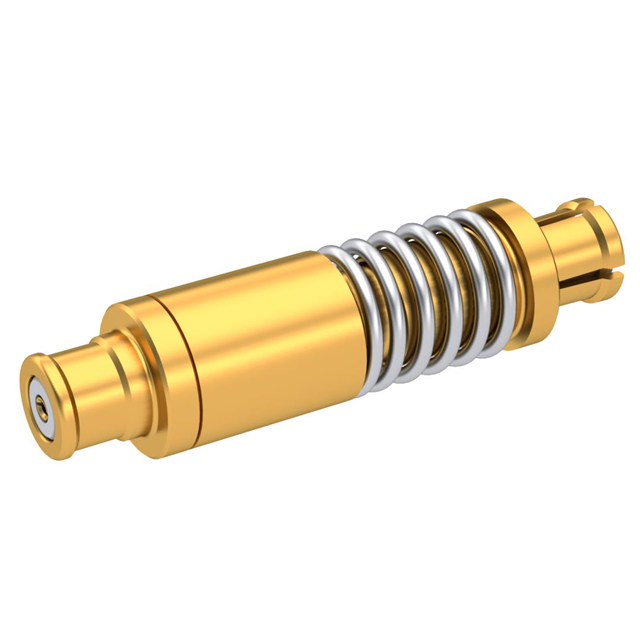

SMP / FEMALE - FEMALE SPRING ADA
| Part | Mating Cycles | Body Finish | Dielectric Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Convert To (Adapter End) | Fastening Type | Fastening Type | Center Contact Plating | Convert From (Adapter End) | Style | Conversion Type | Adapter Series | Center Gender | Mounting Type | Impedance | Frequency - Max [Max] | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1000 | Gold | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 ░C | 85 °C | Bronze | SMP Jack Female Socket | Snap-On | Snap-On | Gold | Female Socket SMP Jack | Straight | Same Series | SMP to SMP | Female to Female | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Jack to Jack |
Radiall USA, Inc. | 500 | Gold | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 ░C | 85 °C | Bronze | SMP Jack Female Socket | Snap-On | Snap-On | Gold | Female Socket SMP Jack | Straight | Same Series | SMP to SMP | Female to Female | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Jack to Jack |
 Radiall USA, Inc. | 1000 | Gold | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 ░C | 85 °C | Bronze | SMP Jack Female Socket | Snap-On | Snap-On | Gold | Female Socket SMP Jack | Straight | Same Series | SMP to SMP | Female to Female | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Jack to Jack |
 Radiall USA, Inc. | 1000 | Gold | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 ░C | 85 °C | Bronze | SMP Jack Female Socket | Snap-On | Snap-On | Gold | Female Socket SMP Jack | Straight | Same Series | SMP to SMP | Female to Female | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Jack to Jack |
