EE-SX952 Series

Catalog

SENSOR OPT SLOT PNP MODULE 1M

Part	Current - Collector (Ic) (Max) [Max]	Output Configuration	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Distance	Sensing Distance	Current - DC Forward (If) (Max)	Mounting Type	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Omron Electronics Inc-EMC Div EE-SX952P-W 1M	15 mA	PNP - Dark-ON/Light-ON - Selectable	Amplified	24 V	0.197 in	5 mm	50 mA	Chassis Mount	Through-Beam	55 °C	-25 °C	Module Slot Type Wire Leads

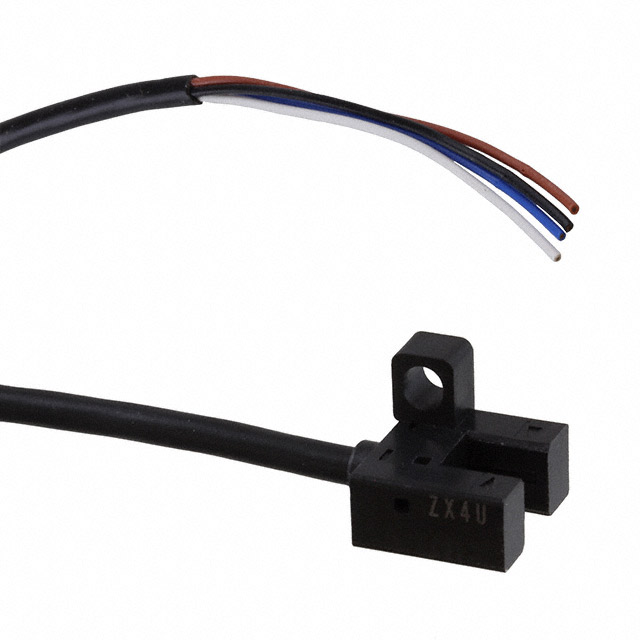

Omron Electronics Inc-EMC Div EE-SX952-R 3M	15 mA		Amplified	24 V	0.197 in	5 mm	50 mA	Chassis Mount	Through-Beam	55 °C	-25 °C	Module Slot Type Wire Leads

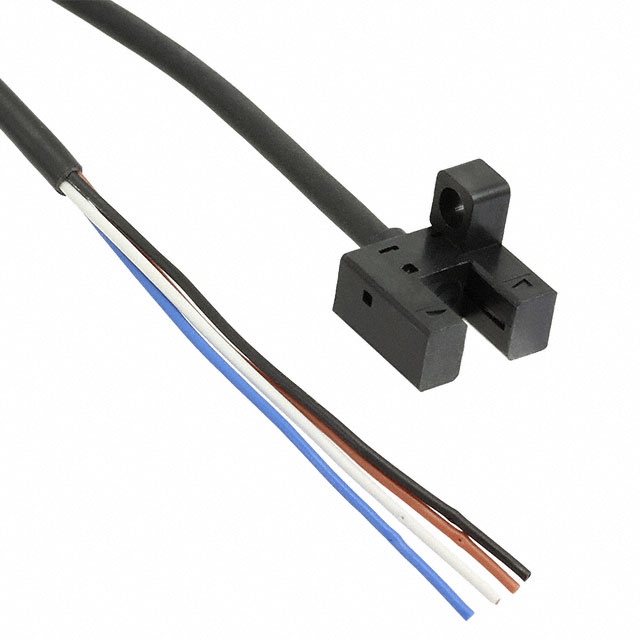

Omron Electronics Inc-EMC Div EE-SX952-W 1M	15 mA		Amplified	24 V	0.197 in	5 mm	50 mA	Chassis Mount	Through-Beam	55 °C	-25 °C	Module Slot Type Wire Leads
Omron Electronics Inc-EMC Div EE-SX952-W 3M	15 mA		Amplified	24 V	0.197 in	5 mm	50 mA	Chassis Mount	Through-Beam	55 °C	-25 °C	Module Slot Type Wire Leads
Omron Electronics Inc-EMC Div EE-SX952P-R 1M	15 mA	PNP - Dark-ON/Light-ON - Selectable	Amplified	24 V	0.197 in	5 mm	50 mA	Chassis Mount	Through-Beam	55 °C	-25 °C	Module Slot Type Wire Leads
