JS181755 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

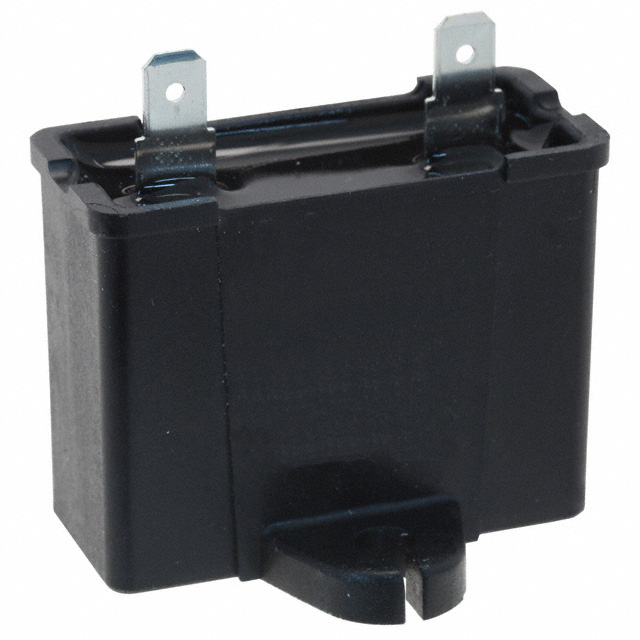

7.5UF -25℃~+70℃ ±10% 180V POLYPROPYLENE FILM CAPACITORS (CBB) ROHS
| Part | Mounting Type | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Dielectric Material | Termination | Termination | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Chassis Mount | 7.5 µF | 70 °C | -25 °C | 180 V | 10 % | 31 mm | 1.22 in | 1.555 in | 0.689 in | 39.5 mm | 17.5 mm | Rectangular Box | Metallized Polypropylene (PP) | 0.187 " | 4.7 mm | Quick Connect | Motor Run |
