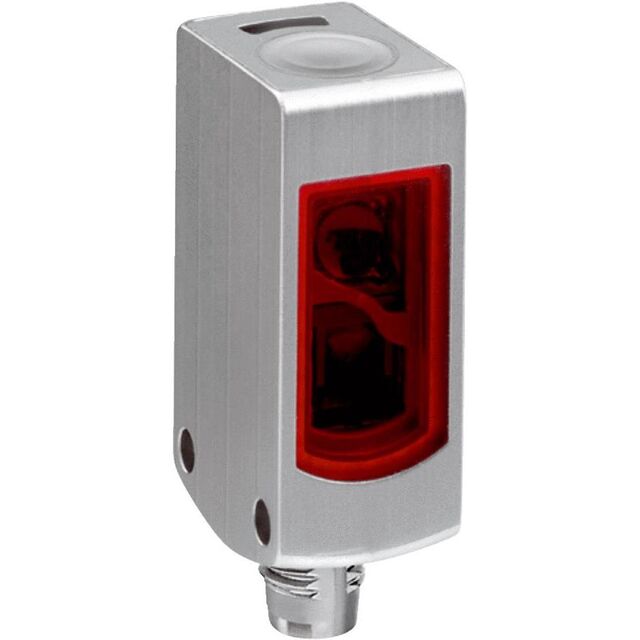

WTB4S Series
Manufacturer: SICK, Inc.
Beta
⌘K
SENSOR PROXIMITY 150MM PNP
| Part | Ingress Protection | Sensing Method | Adjustment Type | Sensing Distance Maximum | Sensing Distance Minimum | Connection Method | Operating Temperature (Max) | Operating Temperature (Min) | Light Source Wavelength (Red) | Light Source | Response Time | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Output Configuration | Adjustment Turns | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | IP67 | Proximity | Adjustable | 5.906 " | 0.157 " | Connector M8 | 60 °C | -40 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | ||
 SICK, Inc. | IP67 | Proximity | Adjustable Potentiometer | 4.724 " | 0.157 " | Connector M8 | 60 °C | -40 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | NPN | 5 turn | |
 SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 11.024 " | 0.157 " | Connector M8 | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | ||
 SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 19.685 " | 0.157 " | Connector M8 | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | NPN | ||
 SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 4.724 " | 0.157 " | Connector M8 | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | ||
 SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 19.685 " | 0.157 " | Cable with Connector | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | NPN PNP | 5.906 in | |
SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 4.724 " | 0.157 " | Cable with Connector | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | 5.906 in | |
SICK, Inc. | IP67 | Proximity | Adjustable Potentiometer | 4.724 " | 0.157 " | Cable with Connector | 60 °C | -40 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | 5 turn | 3.937 in |
 SICK, Inc. | IP66 | Proximity | Adjustable | 19.685 " | 0.157 " | Cable with Connector | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | 5.906 in | |
SICK, Inc. | IP66 IP67 IP68 IP69K | Proximity | Adjustable | 19.685 " | 0.157 " | Cable with Connector | 70 °C | -30 °C | 650 nm | Red | 500 µs | 10 VDC | 30 VDC | PNP | 5.906 in |
