0351-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .032-.046" .226"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0351-0-15-01-34-14-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.25 Ám	10 Áin	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 0351-0-15-80-34-14-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.25 Ám	10 Áin	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 0351-0-15-01-34-01-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Tin-Lead	5.08 Ám	200 Áin	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 0351-0-15-80-34-27-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.76 Ám	30 Áin	2.31 mm	0.091 "

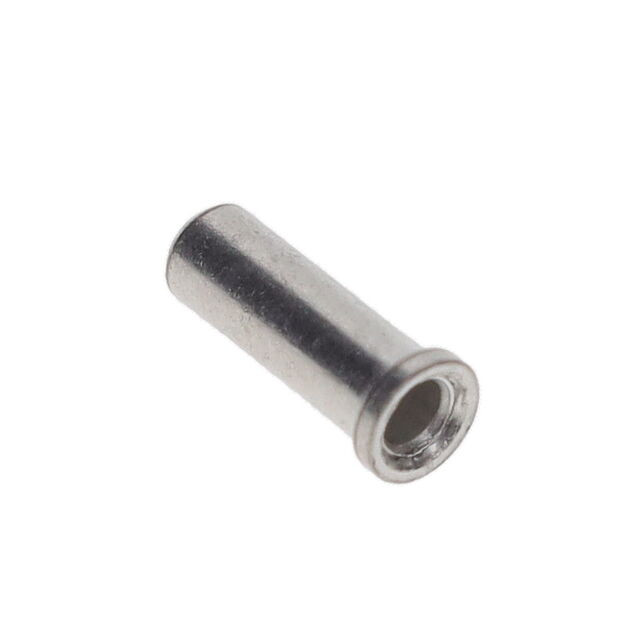

Mill-Max Manufacturing Corp. 0351-0-15-80-34-80-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Tin	5.08 Ám	200 Áin	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 0351-0-15-01-34-27-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.76 Ám	30 Áin	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 0351-0-15-15-34-14-10-0	-55 C	125 °C	5.74 mm	0.226 in	0.2 in	5.08 mm	No Tail	0.075 "	1.91 mm	Beryllium Copper	Solder	1.63 mm	0.064 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.25 Ám	10 Áin	2.31 mm	0.091 "
