DD12.9121 Series

Catalog

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Part	Features	Ingress Protection	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Current Rating - Filter	Material Flammability Rating	Current Rating - Appliance Inlet	Termination	Termination	Termination	Connector Type	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Connector Style	Switch Features	Mounting Type	Approval Agency	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]

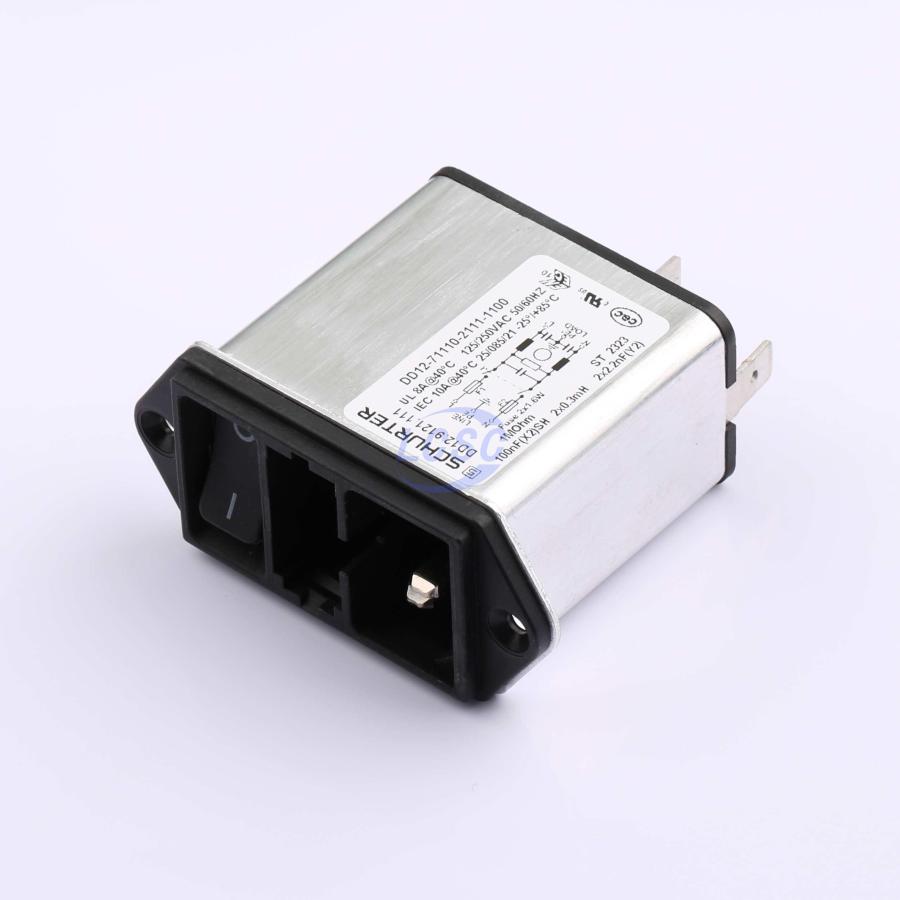

SCHURTER Inc. DD12.9121.111	Earth Line Choke Shielded V-Lock Notch	IP40	8 mm	0.315 in	29.8 mm	49.3 mm	Filtered (EMI RFI) - Commercial	10 A	UL94 V-0	10 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades - Module	Drawer Sold Separate	250 VAC	IEC 320-C14	Switch On-Off	Flange Panel Mount	cURus ENEC

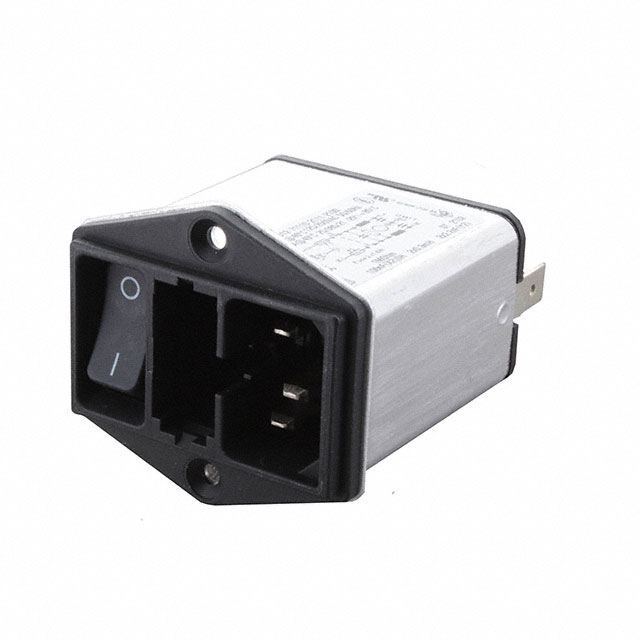

SCHURTER Inc. DD12.9121.121	Earth Line Choke Shielded V-Lock Notch	IP40	8 mm	0.315 in	29.8 mm	49.3 mm	Filtered (EMI RFI) - Commercial		UL94 V-0	10 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades - Module	Drawer Sold Separate	250 VAC	IEC 320-C14	Switch On-Off	Flange Panel Mount	cURus ENEC

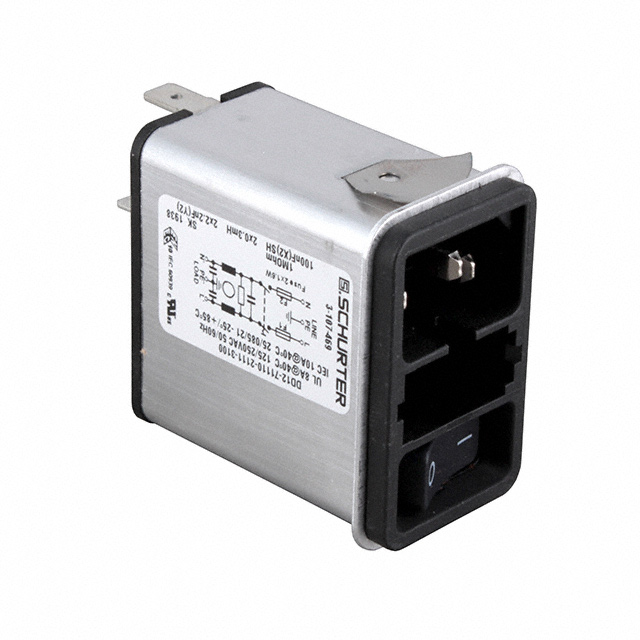

SCHURTER Inc. DD12.9121.131	Earth Line Choke Shielded V-Lock Notch	IP40			29.8 mm	49.3 mm	Filtered (EMI RFI) - Commercial		UL94 V-0	10 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades - Module	Drawer Sold Separate	250 VAC	IEC 320-C14	Switch On-Off	Panel Mount Snap-In	cURus ENEC	0.118 in	3 mm	1 mm	0.039 in
