104340 Series

Catalog

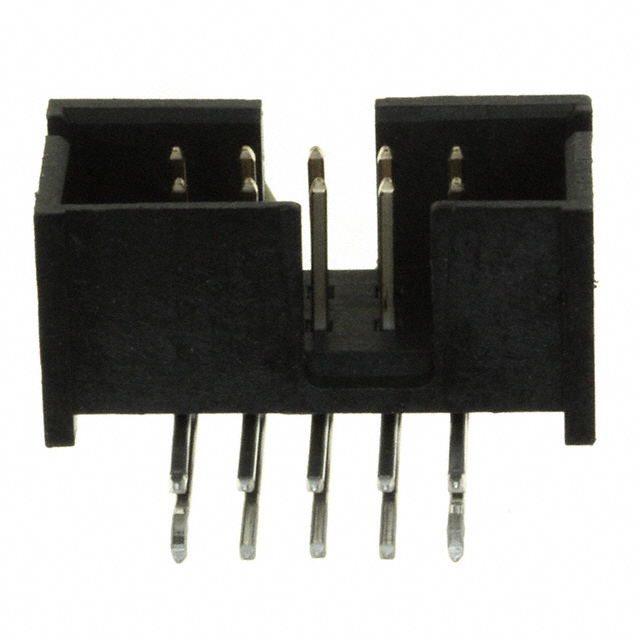

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Insulation Height	Insulation Height	Number of Positions	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Fastening Type	Current Rating (Amps)	Style	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Connector Type
TE Connectivity AMP Connectors 104340-1	2.54 µm	100 µin	105 ░C	-65 ░C	Gold or Gold-Palladium	Kinked Pin Solder	0.24 in	6.1 mm	Keying Slot	0.365 in	9.27 mm	10	UL94 V-0	Tin-Lead	All	Right Angle Through Hole	2	0.125 in	3.18 mm	Square	0.38 µm	15 µin	Shrouded - 4 Wall	Push-Pull	1 A	Board to Cable/Wire	Black	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	0.1 "	2.54 mm	Header
