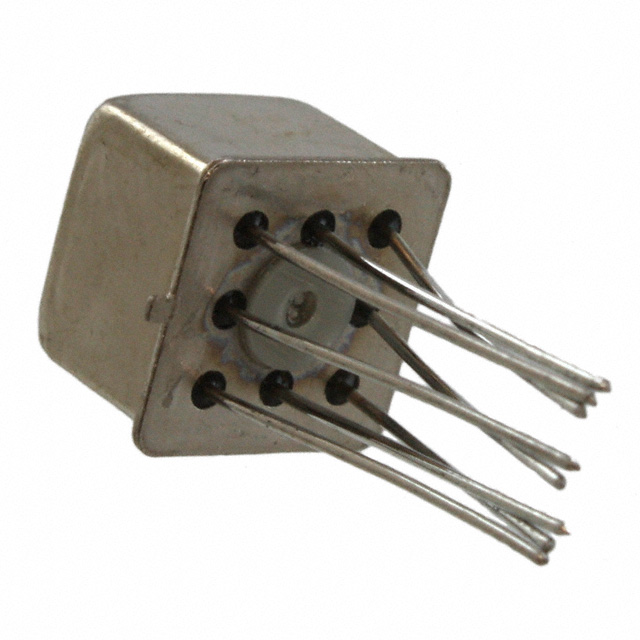

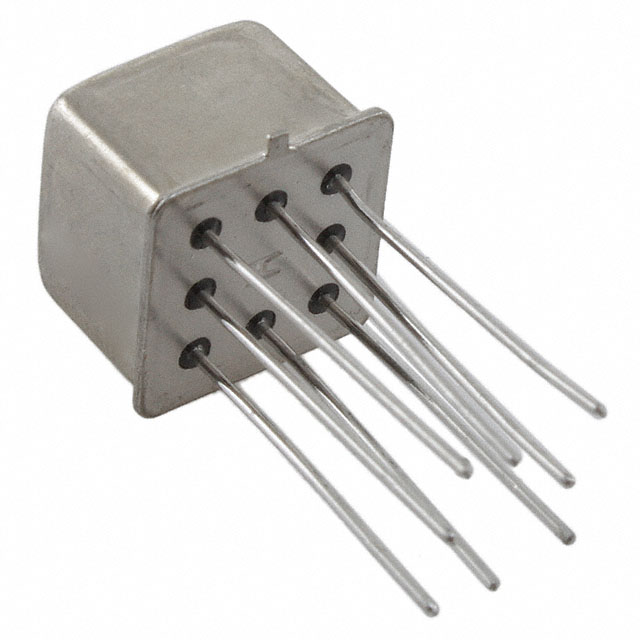

JMGAC Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Switching Voltage | Must Operate Voltage | Features | Coil Voltage | Contact Rating (Current) | Coil Current | Load - Max Switching | Contact Form | Must Release Voltage | Mounting Type | Termination Style | Coil Resistance | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Release Time | Operate Time | Coil Type | Relay Type | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 2.9 VDC | Diode | 5 VDC | 1 A | 78.1 mA | 28 W 115 VA | DPDT (2 Form C) | 0.8 VDC | Through Hole | PC Pin | 64 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 7.5 ms | 4 ms | Non Latching | General Purpose | ||
 TE Connectivity Aerospace, Defense and Marine | 28 VDC | 15.2 VDC | 26.5 VDC | 1 A | 17 mA | DPDT (2 Form C) | 1.4 VDC | Through Hole | PC Pin | 1560 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/19 | Military | ||
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 8 VDC | Diode | 12 VDC | 1 A | 30.8 mA | 28 W 115 VA | DPDT (2 Form C) | 1.1 VDC | Through Hole | PC Pin | 390 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | ||
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 15.2 VDC | Diode | 26.5 VDC | 1 A | 18.5 mA | 28 W 115 VA | DPDT (2 Form C) | 1.8 VDC | Through Hole | PC Pin | 1560 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/19 | Military |
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 3.4 VDC | Diode | 1 A | 30 mA | 28 W 115 VA | DPDT (2 Form C) | 0.28 VDC | Through Hole | PC Pin | 200 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 7.5 ms | 4 ms | Non Latching | General Purpose | |||
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 2.7 VDC | Diode | 5 VDC | 1 A | 100 mA | 28 W 115 VA | DPDT (2 Form C) | 0.22 VDC | Through Hole | PC Pin | 50 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/18 | Military |
 TE Connectivity Aerospace, Defense and Marine | 28 VDC | 14.8 VDC | 26.5 VDC | 1 A | 17 mA | DPDT (2 Form C) | 1.8 VDC | Through Hole | PC Pin | 1560 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/19 | Military | ||
TE Connectivity Aerospace, Defense and Marine | 28 VDC 115 VAC | 2.7 VDC | Diode | 5 VDC | 1 A | 100 mA | 28 W 115 VA | DPDT (2 Form C) | 0.22 VDC | Through Hole | PC Pin | 50 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/18 | Military |
TE Connectivity Aerospace, Defense and Marine | 14.2 VDC | 26.5 VDC | 1 A | 17 mA | DPDT (2 Form C) | Through Hole | PC Pin | 1560 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 1.5 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/17 | Military | ||||
 TE Connectivity Aerospace, Defense and Marine | 28 VDC | 14.2 VDC | 26.5 VDC | 1 A | 17 mA | DPDT (2 Form C) | Through Hole | PC Pin | 1560 Ohms | Sealed - Hermetically | 125 °C | -65 ░C | Gold (Au) Silver Palladium (AgPd) | 4 ms | 2 ms | Non Latching | General Purpose | MIL-R-39016/18 | Military |
