2842123 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 8P,2MM,BRK HDR,SRRT,2.8,0.38AU,BOX

Part	Insulation Color	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Number of Positions Loaded	Insulation Material	Contact Shape	Contact Finish - Post	Contact Type	Contact Material	Number of Rows	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions

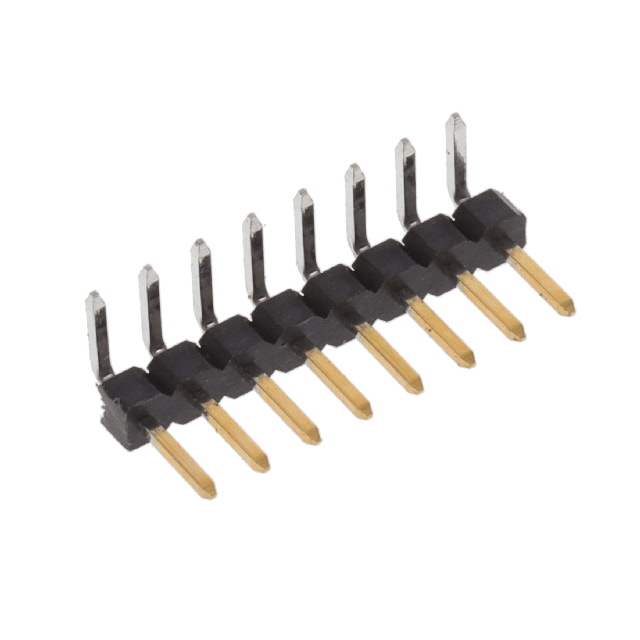

TE Connectivity Raychem Cable Protection 2842123-8	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm	8

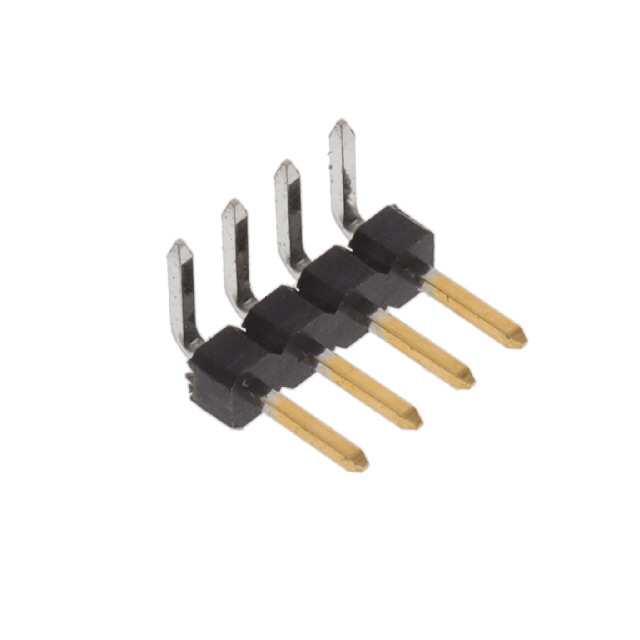

TE Connectivity Raychem Cable Protection 2842123-4	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm	4
TE Connectivity Raychem Cable Protection 2842123-2	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm	2

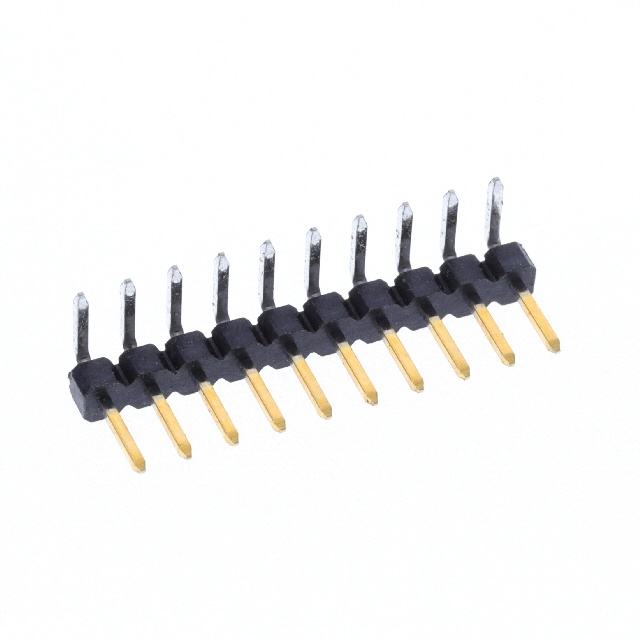

TE Connectivity Raychem Cable Protection 1-2842123-0	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm	10

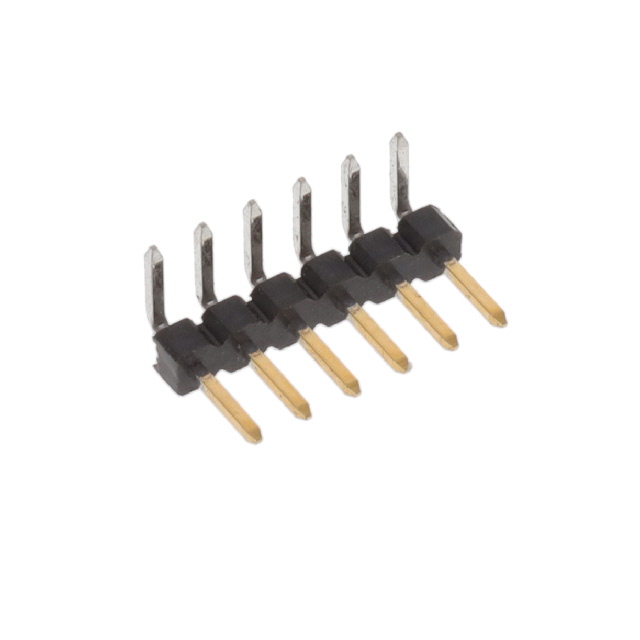

TE Connectivity Raychem Cable Protection 2842123-6	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm	6
TE Connectivity Raychem Cable Protection 2842123-5	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2842123-3	Black	4 mm	0.157 in	2 A	Unshrouded	15 µin	0.38 µm	UL94 V-0	Solder	Breakaway Header	2 çm	78.7 çin	1.5 mm	0.059 "	Through Hole Right Angle	0.11 in	2.79 mm	Push-Pull	125 °C	-40 °C	Gold	All	Thermoplastic	Square	Tin	Male Pin	Copper Alloy	1	125 VAC	0.079 in	2 mm
