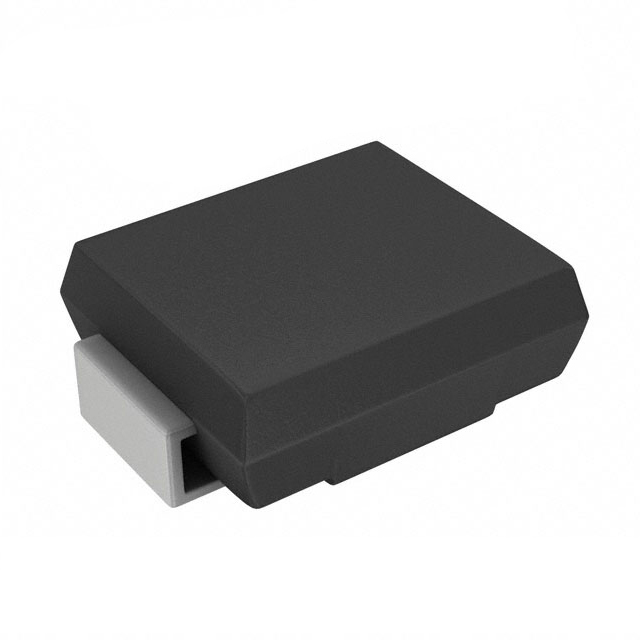

3.0SMCJ Series

Catalog

SURFACE MOUNT TRANSIENT VOLTAGE

Part	Unidirectional Channels [custom]	Type	Power - Peak Pulse	Power - Peak Pulse	Applications	Voltage - Reverse Standoff (Typ)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Grade	Qualification
Panjit International Inc. 3.0SMCJ6.5A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	6.5 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	267.9 A	7.22 V	11.2 V
Panjit International Inc. 3.0SMCJ190CA_R1_00001		Zener	3 kW	3000 W	General Purpose	190 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	9.7 A	209 V	308 V	1
Panjit International Inc. 3.0SMCJ9.0A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	9 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	194.8 A	10 V	15.4 V
Panjit International Inc. 3.0SMCJ22CA-AU_R1_000A1		Zener	3 kW	3000 W		22 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	84.4 A	24.4 V	35.5 V	1	Automotive	AEC-Q101
Panjit International Inc. 3.0SMCJ26A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	26 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	71.2 A	28.9 V	42.1 V
Panjit International Inc. 3.0SMCJ7.5A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	7.5 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	232.6 A	8.33 V	12.9 V
Panjit International Inc. 3.0SMCJ24CA_R1_00001		Zener	3 kW	3000 W	General Purpose	24 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	77.2 A	26.7 V	38.9 V	1
Panjit International Inc. 3.0SMCJ6.0CA_R1_00001		Zener	3 kW	3000 W	General Purpose	6 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	291.3 A	6.67 V	10.3 V	1
Panjit International Inc. 3.0SMCJ33A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	33 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	56.2 A	36.7 V	53.3 V
Panjit International Inc. 3.0SMCJ60A_R1_00001	1	Zener	3 kW	3000 W	General Purpose	60 V	DO-214AB SMC	150 °C	-55 °C	Surface Mount	DO-214AB (SMC)	31 A	66.7 V	96.8 V
