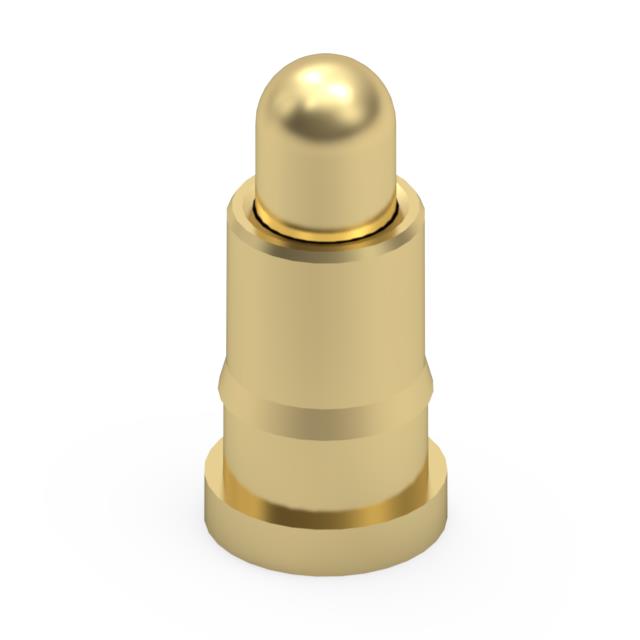

0900-8 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Finish | Mounting Type | Contact Type | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Operating Force - Initial | Minimum Working Height | Minimum Working Height | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | Gold | Surface Mount | Sleeve & Plunger (Pogo Pins) | Brass Alloy | 0.042 in | 1.07 mm | 5.2 A | 15 gf | 0.116 in | 2.94 mm | 0.072 in | 1.83 mm | 60 gf | 0.155 in | 3.94 mm | 20 µin | 0.51 µm | 3.44 mm | 0.135 in |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1000000 | Gold | Surface Mount | Sleeve & Plunger (Pogo Pins) | Copper Alloy | 0.042 in | 1.07 mm | 2 A | 0.116 in | 2.94 mm | 0.072 in | 1.83 mm | 0.155 in | 3.94 mm | 20 µin | 0.51 µm | 3.44 mm | 0.135 in |
