316-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

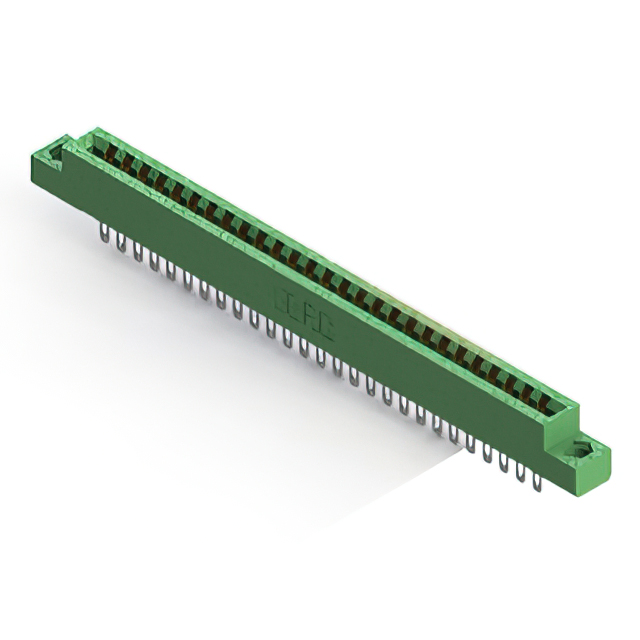

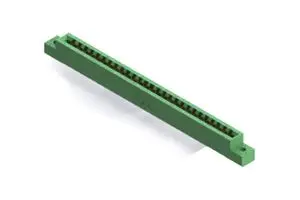

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Number of Positions | Card Type | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Termination | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Read Out | Number of Rows [custom] | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |||

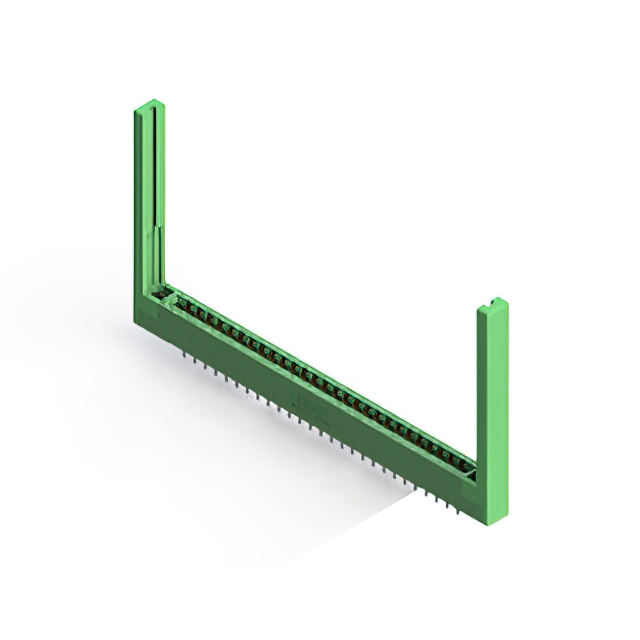

 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Gold | Female | -40 C | 105 ░C | 27 | Solder Eyelet(s) | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Female | -40 C | 105 ░C | 27 | Solder Eyelet(s) | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | Female | -40 C | 105 ░C | 27 | Solder | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 54 | Non Specified - Dual Edge | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Female | -40 C | 105 ░C | 27 | Solder Eyelet(s) | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Dual | 2 | Green | 0.25 Ám | 10 Áin | Copper Alloy | Card Guides |
