HFBR Series

Catalog

FIBER OPTIC TRANSMITTERS, RECEIVERS, TRANSCEIVERS LO COS 25MHZ ANL ST FO RX TH PB-FR

Part	Current - Supply	Data Rate	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Mode	Cable Diameter [diameter]	Connector Type	Mounting Type	Housing Color	Features	Fiber Cladding Diameter [diameter]	Simplex/Duplex	Fastening Type	Capacitance	Wavelength	Spectral Bandwidth	Voltage - Forward (Vf) (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Bend Radius [radius]	Color - Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Color - Cable	Cable Type	Type	Length - Overall [custom]	Length - Overall [custom]	Cable Diameter [diameter]	Body Material	Attenuation - Typ	Ferrule Material	Housing Material	Length - Overall	Length - Overall	2nd Connector	1st Connector	Length - Overall [x]	Length - Overall [x]
Broadcom Limited HFBR-2414TZ	6.2 mA	160 MBd	General Purpose	4.75 V	5.25 V
Broadcom Limited HFBR-4533Z						Singlemode	2.2 mm	Plug	Free Hanging (In-Line)	Blue	Crimpless	1000 µm	Simplex	Snap-In
Broadcom Limited HFBR-1537Z								Versatile Link							60 pF	650 nm	21 nm	2.1 V	3 V	80 mA

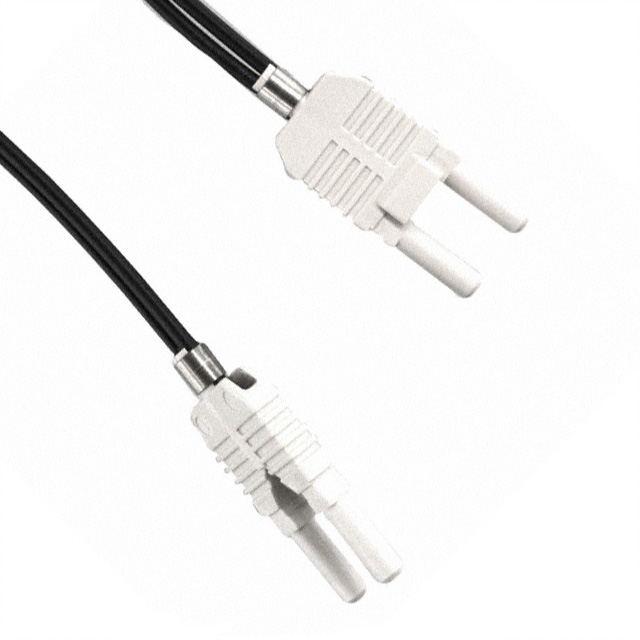

Broadcom Limited HFBR-RMD005Z							0.09 in				Zipcord										35 mm	Black	-55 C	85 °C	Polyethylene (PE)	Black	Twin Zip	POF	16.4 '	5 m	2.2 mm
Broadcom Limited HFBR-2412MZ		5 MBd	General Purpose	4.75 V	5.25 V

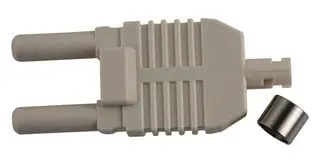

Broadcom Limited HFBR-4506Z						Singlemode	2.2 mm	Plug	Free Hanging (In-Line)	White	Keyed	1000 µm	Duplex	Snap-In									-40 C	85 °C								Thermoplastic Polyester	-1.5 dB	Plastic	Polyester Thermoplastic
Broadcom Limited HFBR-RMD003Z							0.09 in														35 mm		-40 C	85 °C	Polyethylene (PE)		Twin Zip	POF			2.2 mm					9.8 '	3 m	SC Duplex	SC Duplex
Broadcom Limited HFBR-1412TZ								ST							55 pF	820 nm		1.7 V	1.8 V	100 mA
Broadcom Limited HFBR-RTD001Z							0.09 in														35 mm		-40 C	85 °C	Polyethylene (PE)		Twin Zip	POF			2.2 mm							LC Duplex	LC Duplex	3.3 ft	1 m
