SRP7050TA Series
Manufacturer: Bourns Inc.
Beta
⌘K

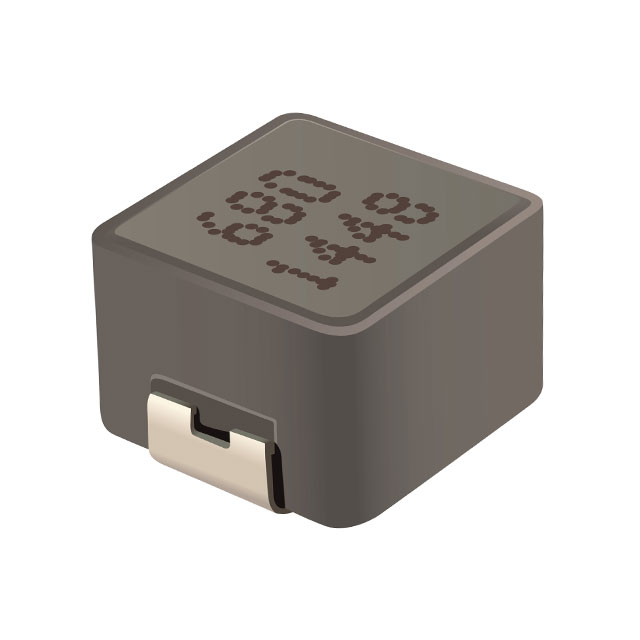

POWER INDUCTOR (SMD), 1.2 ΜH, 14 A, SHIELDED, 18 A, SRP7050TA SERIES
| Part | Material - Core | Current Rating (Amps) | Inductance Frequency - Test | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Self Resonant | Ratings | Package / Case | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Q @ Freq | Mounting Type | Type | Tolerance | Current - Saturation (Isat) | Inductance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Carbonyl Powder | 14 A | 100 kHz | 7.5 mOhm | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 45 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 18 A | 1.2 µH | |
 Bourns Inc. | Carbonyl Powder | 20 A | 100 kHz | 4.2 mOhm | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 80 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 10 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 27 A | 560 nH | |
 Bourns Inc. | Carbonyl Powder | 22 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 95 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 10 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 30 A | 470 nH | 3.9 mOhm | |
Bourns Inc. | Carbonyl Powder | 8 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 26 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 3.3 µH | 20.9 mOhm | ||
Bourns Inc. | Carbonyl Powder | 10 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 30 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 14 A | 2.2 µH | 12 mOhm | |
Bourns Inc. | Carbonyl Powder | 3.5 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 12 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 6 A | 15 µH | 92 mOhm | |
Bourns Inc. | Carbonyl Powder | 2.5 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 9 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 5.5 A | 22 µH | 170 mOhm | |
Bourns Inc. | Carbonyl Powder | 1.9 A | 100 kHz | 330 mOhm | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 8 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 2.7 A | 47 µH | |
Bourns Inc. | Carbonyl Powder | 6 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 20 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 15 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 9 A | 5.6 µH | 49 mOhm | |
Bourns Inc. | Carbonyl Powder | 18 A | 100 kHz | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | -40 C | 150 °C | 75 MHz | AEC-Q200 | Nonstandard | Shielded | 0.197 in | 5 mm | 10 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 24 A | 0.68 µH | 4.5 mOhm |
