CWSA11AA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 6A 250V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Color - Actuator/Cap | Actuator Marking | Current Rating (Amps) | Mounting Type | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

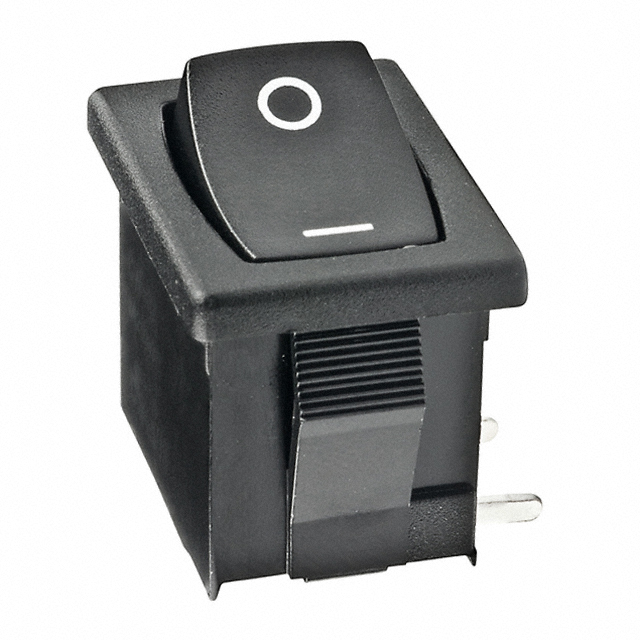

 NKK Switches | 30000 Steps | 10000 Cycles | 250 V | 12.9 mm | 19.2 mm | On-Off | SPST | 70 °C | -10 °C | cULus | Black | O - | 6 A | Panel Mount Right Angle Snap-In | Concave (Curved) | PC Pin |
 NKK Switches | 30000 Steps | 10000 Cycles | 250 V | 12.9 mm | 19.2 mm | On-Off | SPST | 70 °C | -10 °C | cULus | Black | O I | 6 A | Panel Mount Right Angle Snap-In | Concave (Curved) | PC Pin |

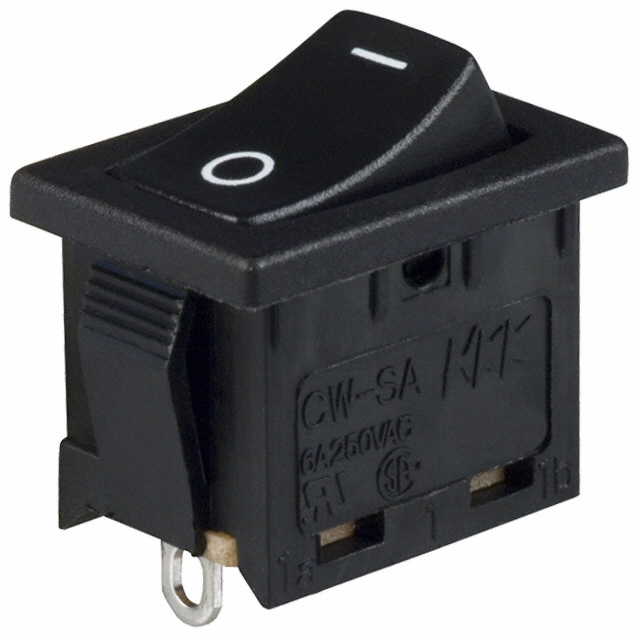

 NKK Switches | 30000 Steps | 10000 Cycles | 250 V | 12.9 mm | 19.2 mm | On-Off | SPST | 70 °C | -10 °C | cULus | Black | O I | 6 A | Panel Mount Snap-In | Concave (Curved) | Solder Lug |
