BH2226 Series

8bit 8ch D/A converter

Catalog

8bit 8ch D/A converter

Part	Number of D/A Converters	Data Interface	Supplier Device Package	INL/DNL (LSB)	Package / Case	Package / Case	Package / Case	Mounting Type	Architecture	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of Bits	Voltage - Supply, Digital [Max] [custom]	Voltage - Supply, Digital [Min] [custom]	Output Type	Settling Time	Package / Case
Rohm Semiconductor BH2226FV-FE2	8	SPI	16-SSOP-B	1 LSB 1.5 LSB	0.173 in	16-LSSOP	4.4 mm	Surface Mount	R-2R	85 °C	-20 ░C	5.5 V	2.7 V	8	5.5 V	2.7 V	Voltage - Buffered	100 µs
Rohm Semiconductor BH2226FV-E2	8	SPI	16-SSOP-B	1 LSB 1.5 LSB	0.173 in	16-LSSOP	4.4 mm	Surface Mount	R-2R	85 °C	-20 ░C	5.5 V	2.7 V	8	5.5 V	2.7 V	Voltage - Buffered	100 µs
Rohm Semiconductor BH2226F-E2	8	SPI	16-SOP	1 LSB 1.5 LSB		16-SOIC		Surface Mount	R-2R	85 °C	-20 ░C	5.5 V	2.7 V	8	5.5 V	2.7 V	Voltage - Buffered	100 µs	0.173 " 4.4 mm

Catalog

8bit 8ch D/A converter

Description

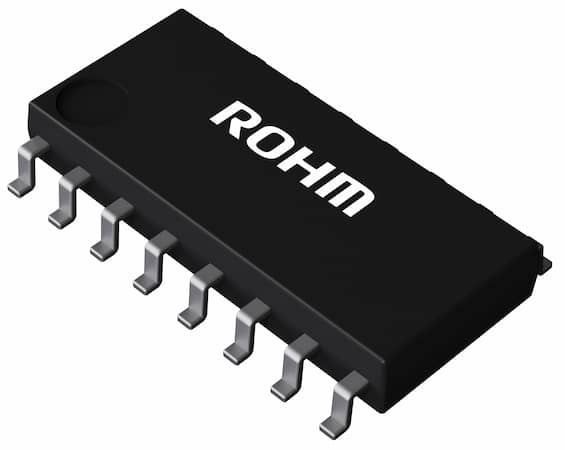

The BH2226F is an 8bit R-2R-type D / A converter with 8 channels. The D / A converter output and serial / parallel conversion function can be switched with one command, and a built-in RESET function ensures that the output voltage at all channels is Low during power up. A broad power supply voltage range (2.7V to 5.5V) is available, providing design flexibility.
