A101J1 Series

Catalog

SWITCH ROCKER SPDT 5A 120V

Part	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Circuit	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Mounting Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features
TE Connectivity AMP Connectors A101J1ZQ0	30000 Cycles	Solder Lug	85 °C	-30 ░C	On-On	28 V	SPDT	Concave	120 V	5 A	No Marking	Flange Panel Mount	Black	17.96 mm	10.62 mm	Epoxy Sealed Terminals
TE Connectivity AMP Connectors A101J1AQ204
TE Connectivity AMP Connectors A101J16ZQ00	30000 Cycles	Solder Lug	85 °C	-30 ░C	On-On	28 V	SPDT	Concave	120 V	5 A	No Marking	Panel Mount Snap-In	Black	20.32 mm	12.7 mm	Epoxy Sealed Terminals

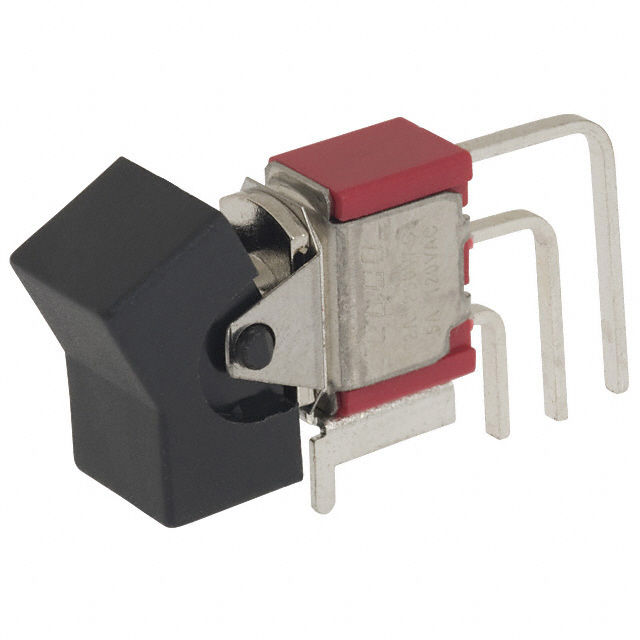

TE Connectivity AMP Connectors A101J1AV2Q0	30000 Cycles	PC Pin	85 °C	-30 ░C	On-On	28 V	SPDT	Concave	120 V	5 A	No Marking	Right Angle Through Hole Vertical	Black			Epoxy Sealed Terminals
TE Connectivity AMP Connectors A101J1ZB004

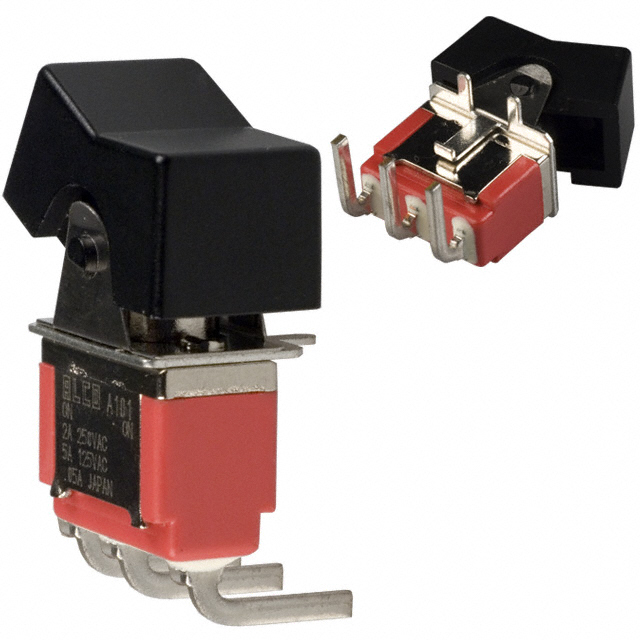

TE Connectivity AMP Connectors A101J1AQ0	30000 Cycles	PC Pin	85 °C	-30 ░C	On-On	28 V	SPDT	Concave	120 V	5 A	No Marking	Right Angle Through Hole	Black			Epoxy Sealed Terminals
