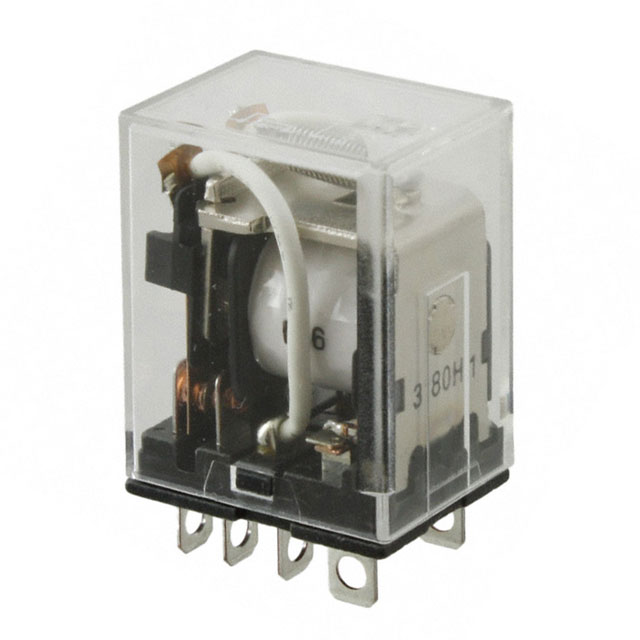

LY2-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 24V
| Part | Must Release Voltage | Contact Rating (Current) | Release Time | Operate Time | Must Operate Voltage | Coil Type | Termination Style | Load - Max Switching | Contact Form | Relay Type | Coil Current | Switching Voltage | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Approval Agency | Mounting Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

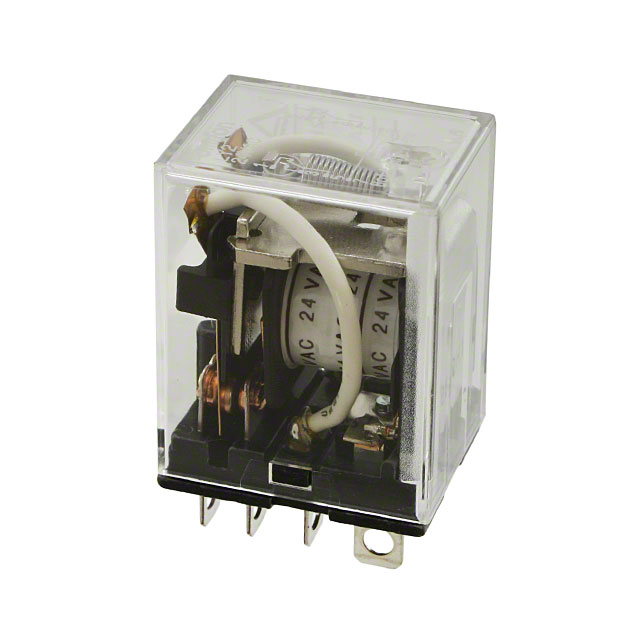

 Omron Electronics Inc-EMC Div | 7.2 VAC | 10 A | 25 ms | 25 ms | 19.2 VAC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 46 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 180 Ohms | CE CSA TUV UR | Socketable | 24 VAC |

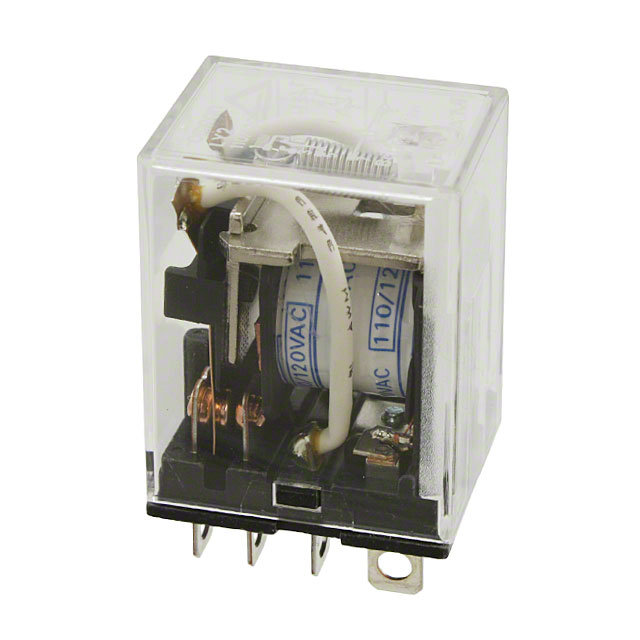

 Omron Electronics Inc-EMC Div | 36 VAC | 10 A | 25 ms | 25 ms | 96 VAC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 9.2 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 4.43 kOhms | CE CSA TUV UR | Socketable | 120 VAC |

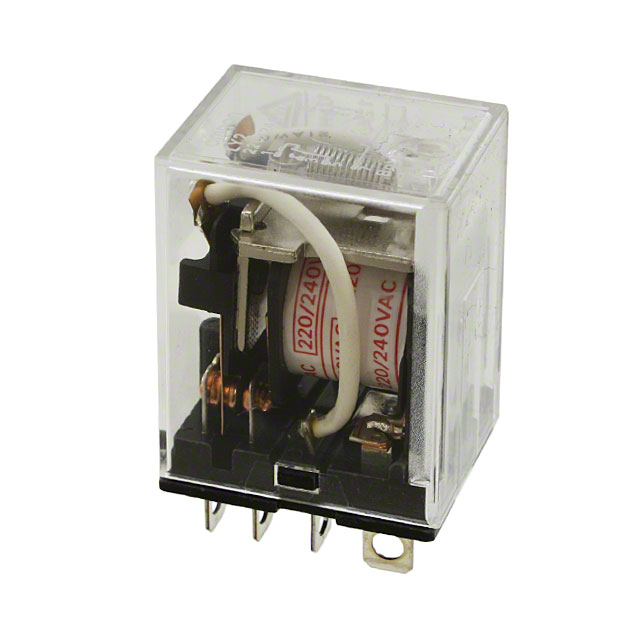

 Omron Electronics Inc-EMC Div | 66 VAC | 10 A | 25 ms | 25 ms | 176 VAC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 5.8 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 12.95 kOhms | CE CSA TUV UR | Socketable | 220 VAC/DC |
 Omron Electronics Inc-EMC Div | 33 VAC | 10 A | 25 ms | 25 ms | 88 VAC/DC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 11 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 3.75 kOhms | CE CSA TUV UR | Socketable | 110 VAC/DC |

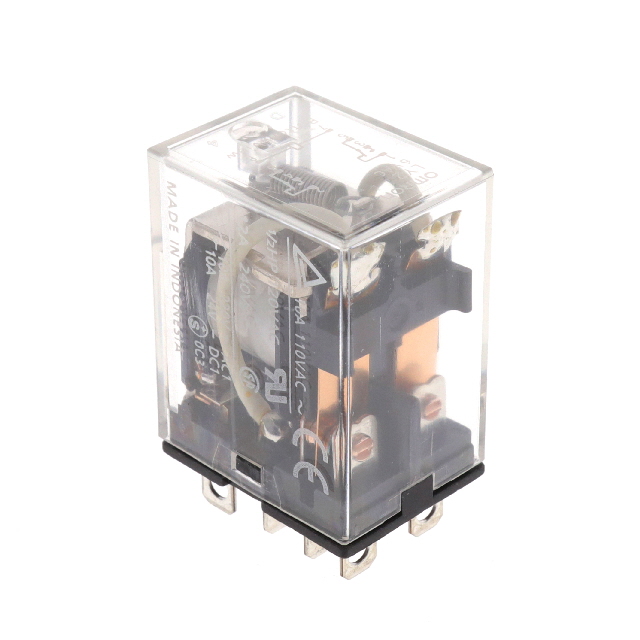

 Omron Electronics Inc-EMC Div | 1.8 VAC | 10 A | 25 ms | 25 ms | 4.8 VAC/DC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 183 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 12.2 Ohms | CE CSA TUV UR | Socketable | 6 VAC |
 Omron Electronics Inc-EMC Div | 72 VAC/DC | 10 A | 25 ms | 25 ms | 192 VAC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 4.6 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 18.79 kOhms | CE CSA TUV UR | Socketable | 240 VAC |

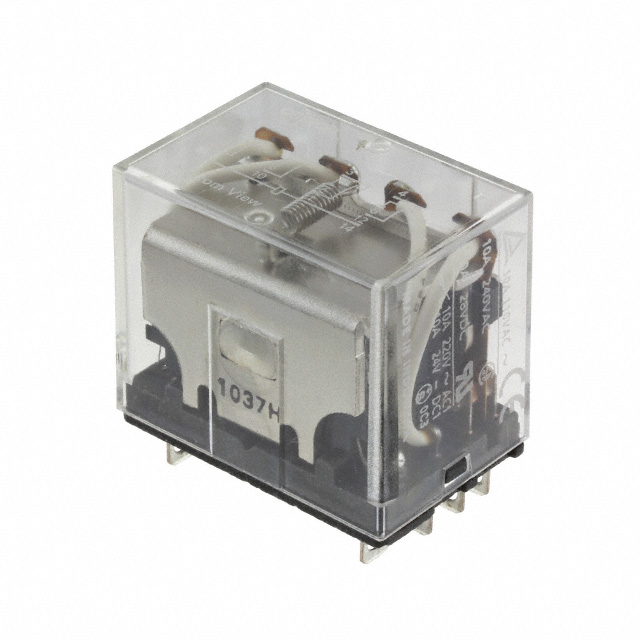

 Omron Electronics Inc-EMC Div | 3.6 VAC | 10 A | 25 ms | 25 ms | 9.6 VAC/DC | Non Latching | Plug In | 1250 W 2500 VA | DPDT (2 Form C) | General Purpose | 91 mA | 125 VDC 250 VAC | Silver Alloy | 55 °C | -25 °C | 46 Ohms | CE CSA TUV UR | Socketable | 12 VAC/DC |
