5697 Series

Manufacturer: BRADY

Catalog

B689 5697-II BLK/YEL STYLE II

Part	Print Type	Location	Color - Legend	Width	Width	Shape	Legend (Symbol Only)	Application Specifics	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]	Mounting Type	Language	Material - Body	Color - Background	Legend (Text)	Arrangement	Applications	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Min) [Min]	Features	Outside Pipe Diameter (Min)	Length	Length	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]
BRADY 5697-II	Pre-Printed	Outdoor	Black	304.8 mm	12 in	Rectangle	Directional Arrow	Notice	63.5 mm	2.5 in	660.4 mm	26 in	Snap On	63000 A 69000 A	Plastic	Yellow	Fuel Oil Supply	Symbol and Text	Pipe	7.875 in	200.03 mm	Chemical Resistant
BRADY 5697-I	Pre-Printed	Outdoor	Black	203.2 mm	8 in	Rectangle	Directional Arrow	Notice					Snap On	63000 A 69000 A	Plastic	Yellow	Fuel Oil Supply	Symbol and Text	Pipe	2.375 in		Chemical Resistant	60.33 mm	9 in	228.6 mm	1.5 in	38.1 mm

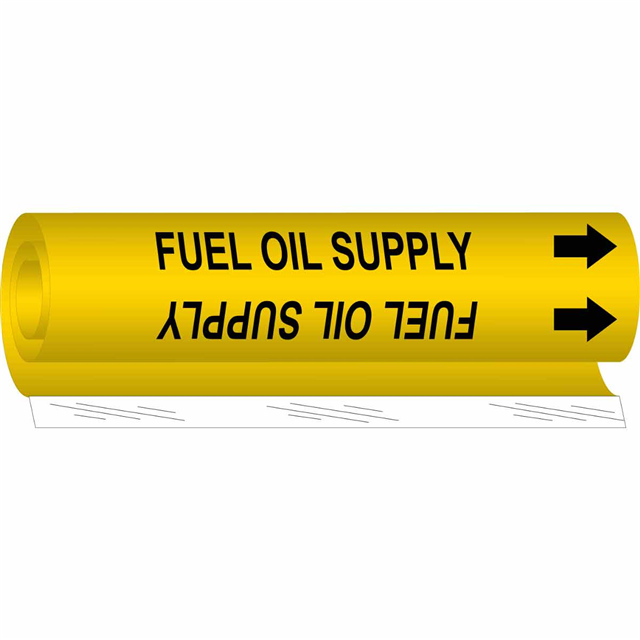

BRADY 5697-O	Pre-Printed	Outdoor	Black			Rectangle	Directional Arrow	Directionality						63000 A 69000 A	Plastic	Yellow	Fuel Oil Supply	Text Only	General	1.375 in		Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	34.93 mm	8 in	203.2 mm			0.5 in	12.7 mm	127 mm	127 mm
