IL-G-5P Series

Catalog

CONN HEADER VERT 5POS 2.5MM

Part	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Termination	Style	Contact Type	Contact Finish - Post	Shrouding	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Type	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating

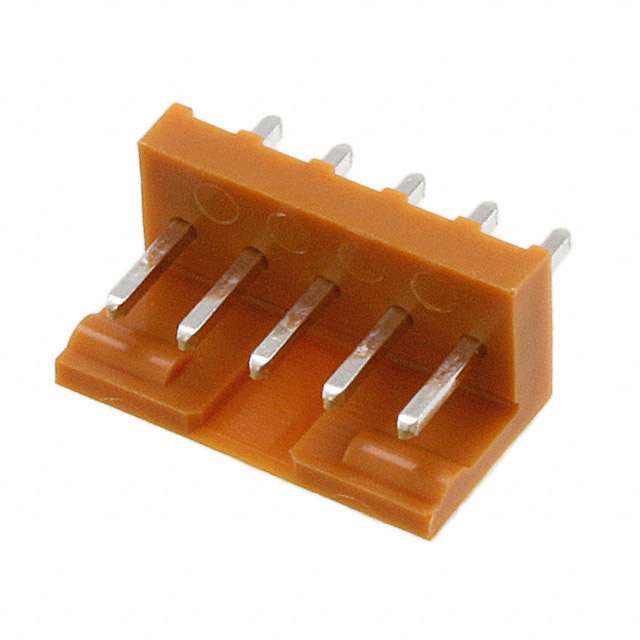

JAE Electronics IL-G-5P-S3T2-SA	10 mm	9.6 mm	0.378 in	All	Solder	Board to Cable/Wire	Male Pin	Tin	Shrouded - 1 Wall	Friction Lock	1	85 °C	-40 C	5	Header	Square	Brown	2.5 mm	0.098 in	UL94 V-0	Through Hole	3 A	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	Brass	4 mm	0.157 in	0.28 in	7.1 mm
JAE Electronics IL-G-5P-S3L2-SA-1				All	Solder	Board to Cable/Wire	Male Pin		Shrouded - 1 Wall	Friction Lock	1	85 °C	-40 C	5	Header	Square	Brown	2.5 mm	0.098 in	UL94 V-0	Right Angle Through Hole	3 A	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	Brass	4 mm	0.157 in			3.9 µin	0.099 µm	0.236 "	6 mm	Gold

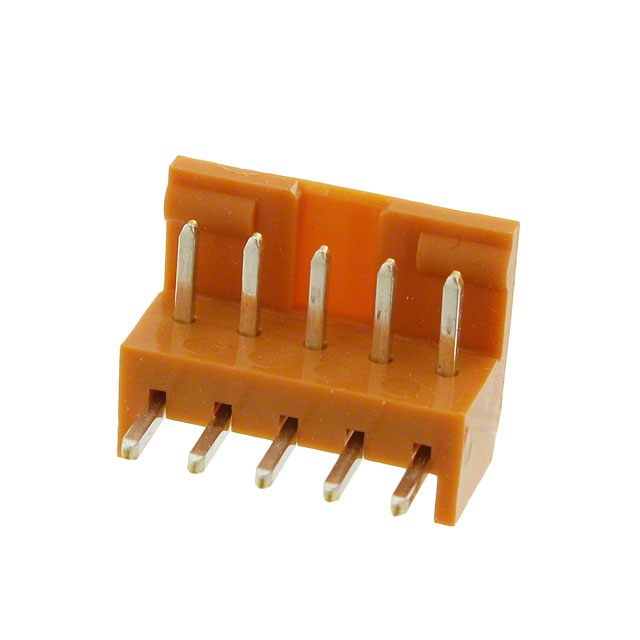

JAE Electronics IL-G-5P-S3L2-SA				All	Solder	Board to Cable/Wire	Male Pin	Tin	Shrouded - 1 Wall	Friction Lock	1	85 °C	-40 C	5	Header	Square	Brown	2.5 mm	0.098 in	UL94 V-0	Right Angle Through Hole	3 A	Nylon 6/6 Polyamide (PA66)	0.138 in	3.5 mm	Brass	4 mm	0.157 in					0.236 "	6 mm
JAE Electronics IL-G-5P-S3T2-SB	10 mm					Board to Board Cable			Shrouded - 1 Wall	Friction Lock	1	85 °C	-40 C	5	Header	Square		2.5 mm	0.098 in	UL94 V-0	Through Hole	3 A	Nylon 6/6 Polyamide (PA66)			Brass
