IRKL56 Series

Catalog

SCR DBL HISCR 400V 60A ADDAPAK

Part	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - On State (It (RMS)) (Max)	Structure	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case

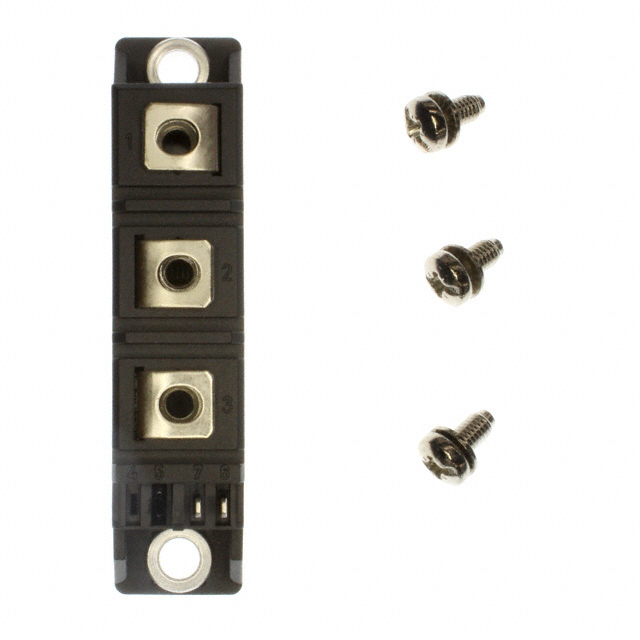

Vishay General Semiconductor - Diodes Division IRKL56/04A	Chassis Mount	60 A	400 V	135 A	Series Connection - SCR/Diode	1310 A	1370 A	2.5 V	-40 °C	125 ¯C	200 mA	1	150 mA	ADD-A-PAK (3 + 2)
