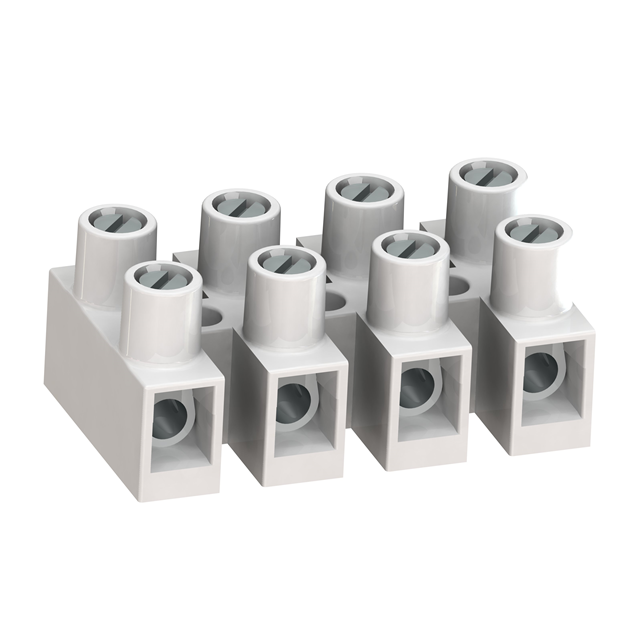

323 Series
Manufacturer: WECO Electrical Connectors Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TERM STRIP EURO; LOW PRO 10MM; D
| Part | Material Flammability Rating | Operating Temperature | Terminal Screw Finish | Terminal Screw Material | Material - Insulation | Mounting Type | Number of Wire Entries | Top Termination | Color | Pitch | Terminal Block Type | Voltage Rating | Number of Circuits | Barrier Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Current Rating | Bottom Termination | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WECO Electrical Connectors Inc. | UL94 V-2 | 105 °C | Zinc | Steel | Nylon PA Polyamide | Chassis Panel | 6 | Screws | White | 0.394 in | Eurostyle Terminal Strip | 300 VAC/DC | 3 | Enclosed | 22 AWG | 10 AWG | 30 A | Closed | 2 |
WECO Electrical Connectors Inc. | UL94 V-2 | 105 °C | Zinc | Steel | Nylon PA Polyamide | Chassis Panel | 24 | Screws | White | 0.394 in | Eurostyle Terminal Strip | 300 VAC/DC | 12 | Enclosed | 22 AWG | 10 AWG | 30 A | Closed | 2 |
