R14325 Series

Catalog

TNC / STRAIGHT SQUARE FLANGE JAC

Part	Body Finish	Mating Cycles	Dielectric Material	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Voltage Rating	Fastening Type	Cable Group	Cable Group	Shield Termination	Number of Ports	Frequency - Max [Max]	Impedance	Contact Termination	Mounting Feature	Connector Type	Connector Style	Mounting Type	Center Contact Material	Housing Color

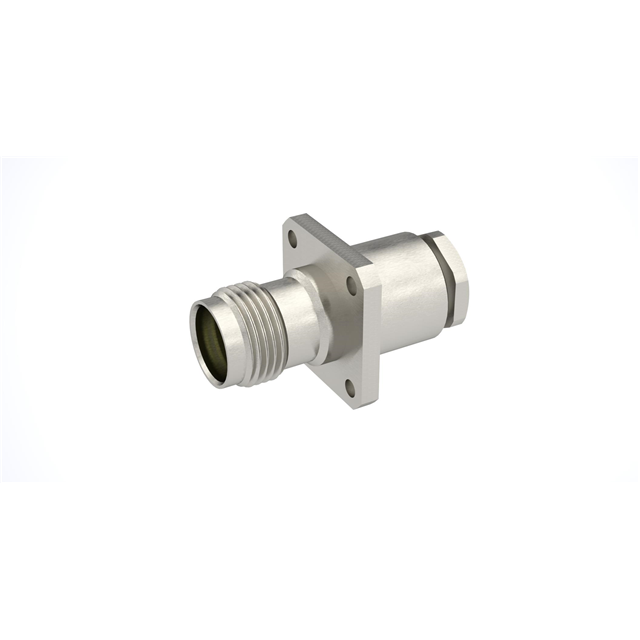

Radiall USA, Inc. R143253000	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	165 °C	Gold	Brass	335 V	Threaded	196	RG-178	Clamp	1	11 GHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver

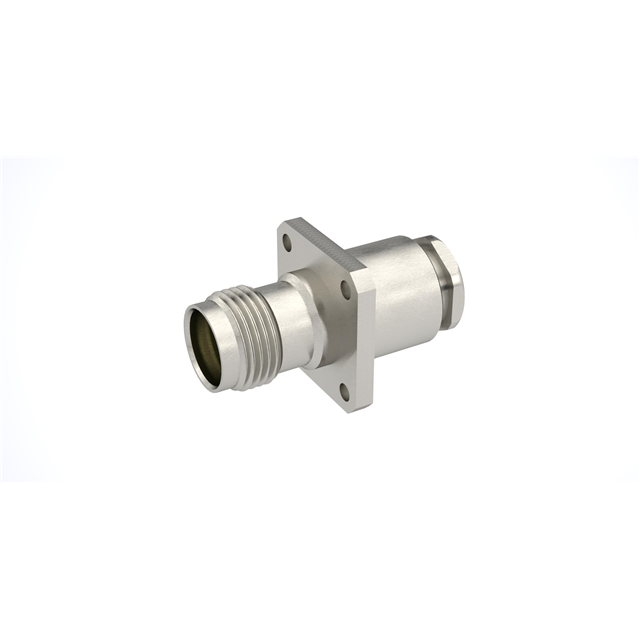

Radiall USA, Inc. R143258000	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	165 °C	Gold	Brass	500 V	Threaded		141 142 223 400 RG-58	Clamp	1	11 GHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver

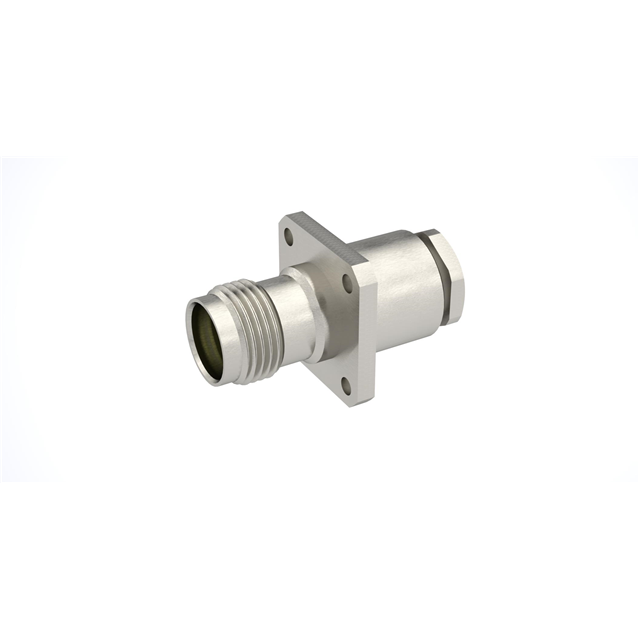

Radiall USA, Inc. R143254000	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	165 °C	Gold	Brass	335 V	Threaded		187 188 316 RG-179	Clamp	1	11 GHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver

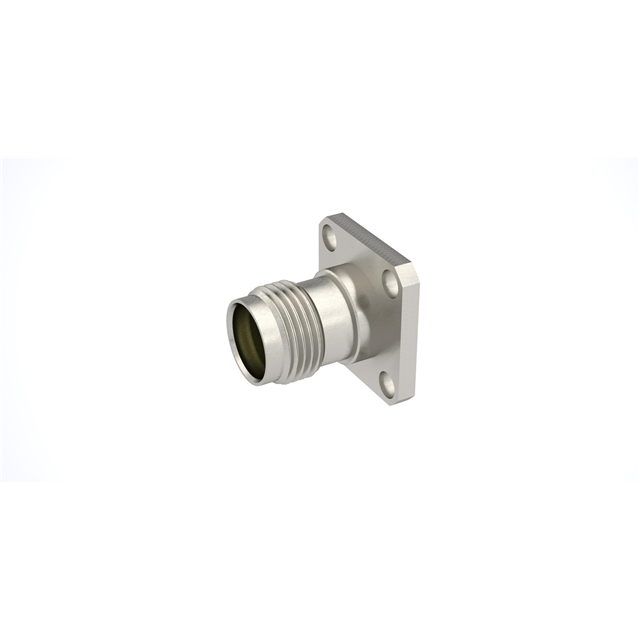

Radiall USA, Inc. R143257450	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	105 ░C	Gold	Brass	335 V	Threaded		RG-405 (.085" Semi Rigid)	Solder	1	6000 MHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver
Radiall USA, Inc. R143257450W	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	105 ░C	Gold	Brass	335 V	Threaded		RG-405 (.085" Semi Rigid)	Solder	1	6000 MHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver
Radiall USA, Inc. R143257440	Nickel	500	Polytetrafluoroethylene (PTFE)	0.18 dB	-65 ░C	105 ░C	Gold	Brass	500 V	Threaded		RG-405 (.085" Semi Rigid)	Solder	1	6000 MHz	50 Ohms	Solder	Flange	Female Socket Jack	TNC	Panel Mount	Beryllium Copper	Silver
