MC25MCS Series

Catalog

SWITCH CAPACITIVE DPST ON-MOM

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Ingress Protection	Circuit	Switch Function	Illumination Type, Color	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Type	Termination Style	Type	Panel Cutout Dimensions [diameter]	Actuator Marking

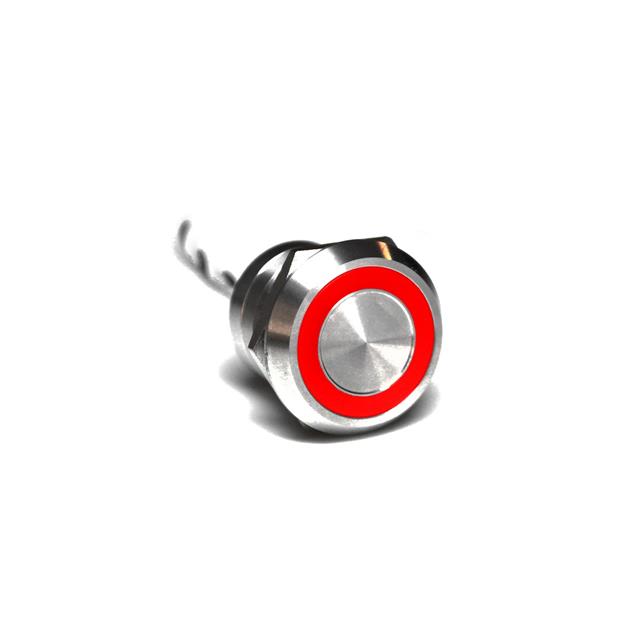

BULGIN LIMITED MC25MCSRD	50000000 Cycles	50 000 000	12 VDC	IP68 IP69K	SPST-NC	On-Mom	LED Red	Silver	55 °C	-25 °C	24 V	Button Flush Round	500 mA	Panel Mount Front	Wire Leads	Capacitive Illuminated	25.2 mm
BULGIN LIMITED MC25MCSGR	50000000 Cycles	50 000 000		IP68 IP69K	SPST-NC	On-Mom	Green/Red LED	Silver	55 °C	-25 °C	12 V	Button Flush Round	500 mA	Panel Mount Front	Wire Leads	Capacitive Illuminated	25.2 mm	No Marking
BULGIN LIMITED MC25MCSRG	50000000 Cycles	50 000 000		IP68 IP69K	SPST-NC	On-Mom	Green/Red LED	Silver	55 °C	-25 °C	12 V	Button Flush Round	500 mA	Panel Mount Front	Wire Leads	Capacitive Illuminated	25.2 mm	No Marking
BULGIN LIMITED MC25MCSGN	50000000 Cycles	50 000 000	12 VDC	IP68 IP69K	SPST-NC	On-Mom	Green LED	Silver	55 °C	-25 °C	24 V	Button Flush Round	500 mA	Panel Mount Front	Wire Leads	Capacitive Illuminated	25.2 mm
