305-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Gender	Number of Positions/Bay/Row	Contact Material	Read Out	Pitch	Pitch	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Termination	Contact Finish	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature	Contact Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-074-555-278	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold	Card Extender Card Guides	Green	-40 C	105 ░C	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

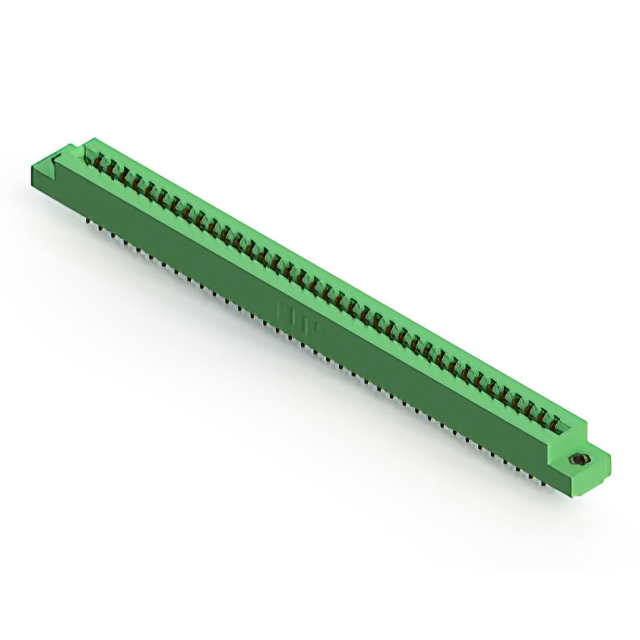

EDAC Inc. 305-074-556-207	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold	Card Extender	Green	-40 C	105 ░C	Board Edge Straddle Mount	Flush Mount M3 Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

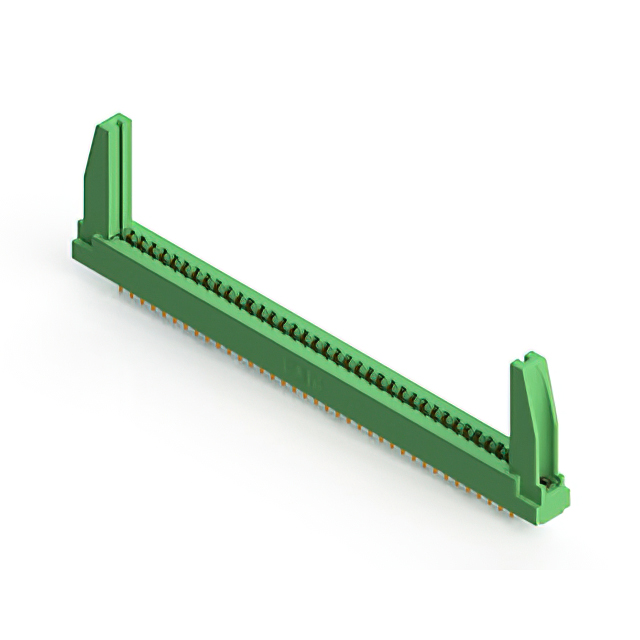

EDAC Inc. 305-074-520-578	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold		Green	-40 C	105 ░C	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

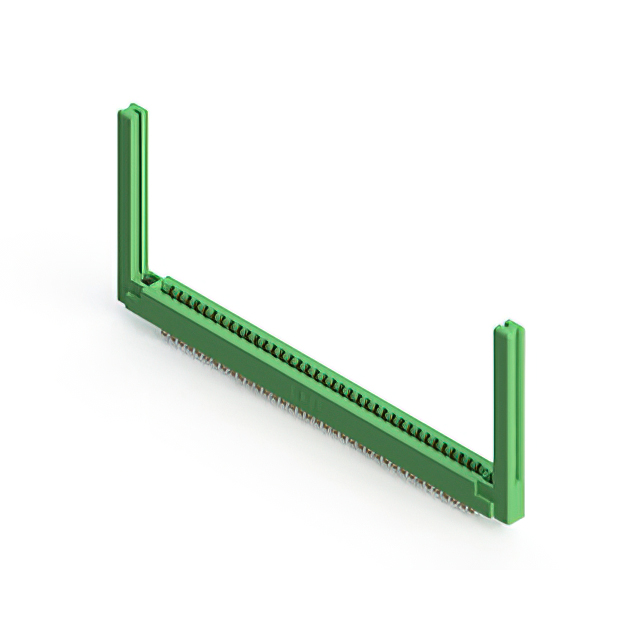

EDAC Inc. 305-074-555-558	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold	Card Extender Card Guides	Green	-40 C	105 ░C	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

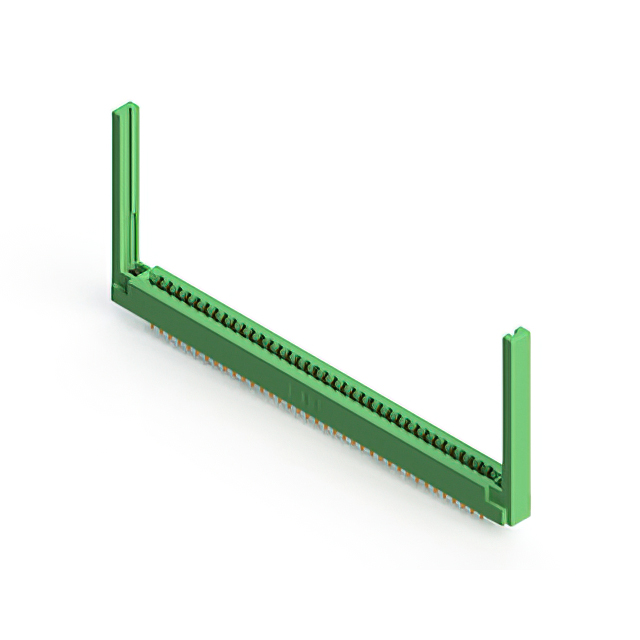

EDAC Inc. 305-074-520-268	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold		Green	-40 C	105 ░C	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

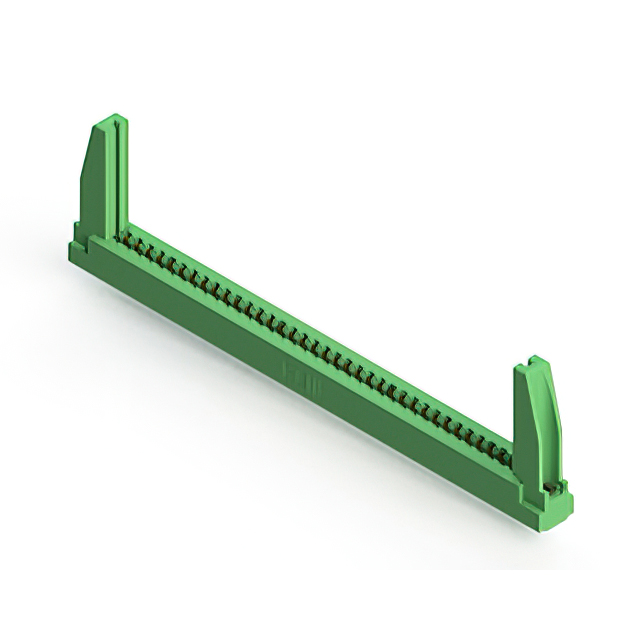

EDAC Inc. 305-074-521-278	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold		Green	-40 C	105 ░C	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin
EDAC Inc. 305-074-556-558	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold	Card Extender Card Guides	Green	-40 C	105 ░C	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin
EDAC Inc. 305-074-521-578	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold		Green	-40 C	105 ░C	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin

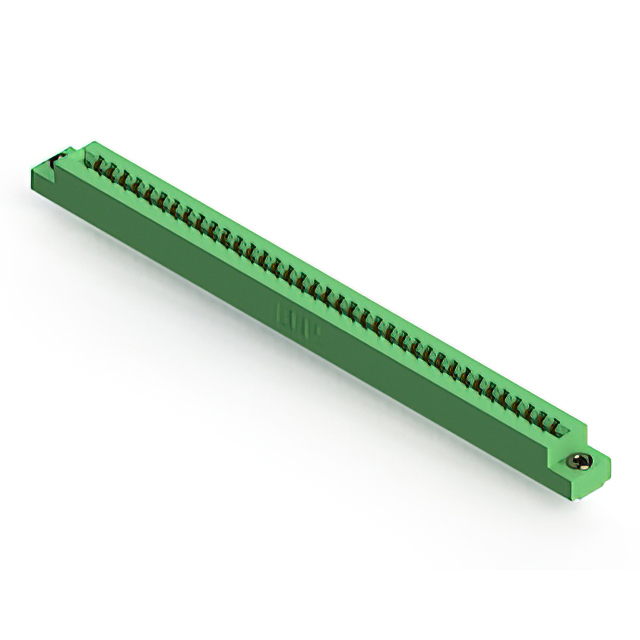

EDAC Inc. 305-074-521-503	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold		Green	-40 C	105 ░C	Panel Mount Through Hole	Floating Bobbin Flush Mount	Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.116 "	2.95 mm

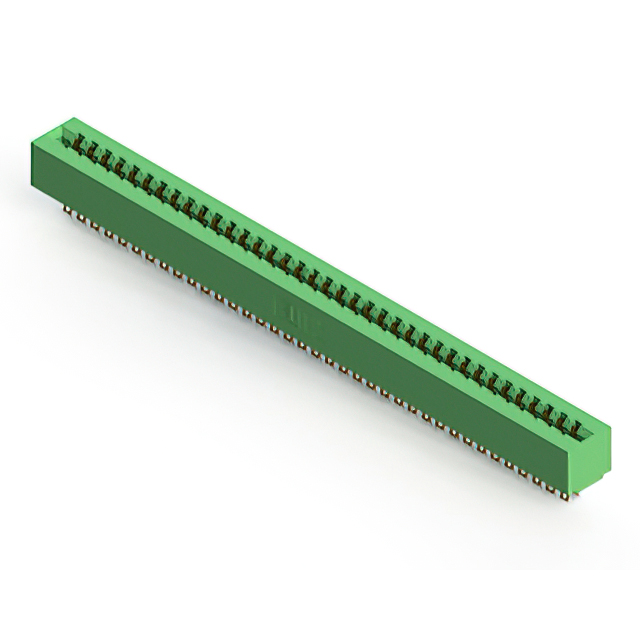

EDAC Inc. 305-074-555-501	Polyester Thermoplastic	2	Female	37	Copper Alloy	Dual	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	74	Solder	Gold	Card Extender	Green	-40 C	105 ░C	Board Edge Straddle Mount		Semi Bellows	Non Specified - Dual Edge	0.25 Ám	10 Áin
