DSF Series

Catalog

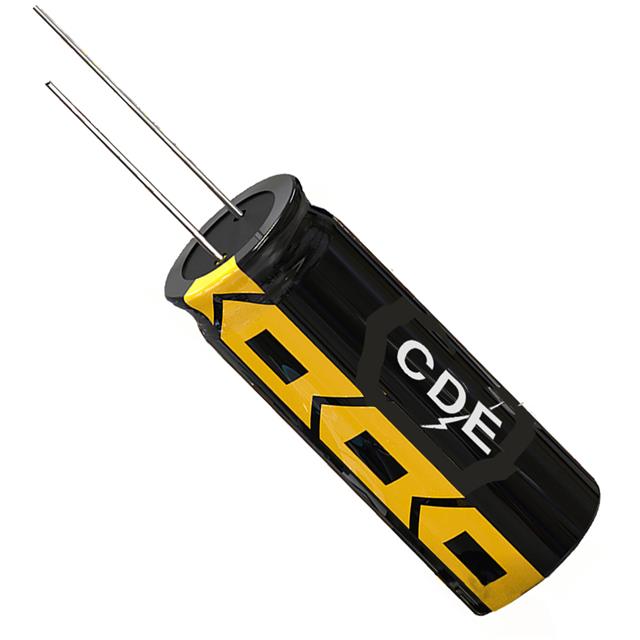

CAPACITOR 10F -10%, +30% 3V TH

Part	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance [Min]	Tolerance [Max]	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Capacitance	Termination	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Tolerance	Height - Seated (Max) [Max] [z]
Cornell Dubilier Knowles DSF106Q3R0C	Can Radial	0.394 in	10 mm	3 VDC	85 °C	-40 C	0.197 "	5 mm	1.063 in	27 mm	-10 %	30 %	1000 Hrs	90 mOhm	10 F	PC Pins	Through Hole
Cornell Dubilier Knowles DSF356Q3R0	Can Radial	0.63 in	16 mm	3 VDC	85 °C	-40 C	0.295 in	7.5 mm			-10 %	30 %	1000 Hrs	25 mOhm	35 F	PC Pins	Through Hole	1.319 in	33.5 mm
Cornell Dubilier Knowles DSF156Q3R0	Can Radial	0.492 in	12.5 mm	3 VDC	85 °C	-40 C	0.197 "	5 mm			-10 %	30 %	1000 Hrs	55 mOhm	15 F	PC Pins	Through Hole	1.26 in		32 mm
Cornell Dubilier Knowles DSF405M3R0	Can Radial	0.315 in	8 mm	3 VDC	85 °C	-40 C	0.138 in	3.5 mm	0.846 "	21.5 mm			1000 Hrs	80 mOhm	4 F	PC Pins	Through Hole				20 %
Cornell Dubilier Knowles DSF205Q3R0	Can Radial	0.315 in	8 mm	3 VDC	85 °C	-40 C	0.138 in	3.5 mm			-10 %	30 %	1000 Hrs	160 mOhm	2 F	PC Pins	Through Hole			0.61 in		15.5 mm
