TPS22924D Series

3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 6200-µs at 3.6-V

Catalog

3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 6200-µs at 3.6-V

Part	Type	Contents	Utilized IC / Part	Supplied Contents	Function	Output Type	Switch Type	Voltage - Load [Min]	Voltage - Load [Max]	Input Type	Package / Case	Features	Interface	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Outputs	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]

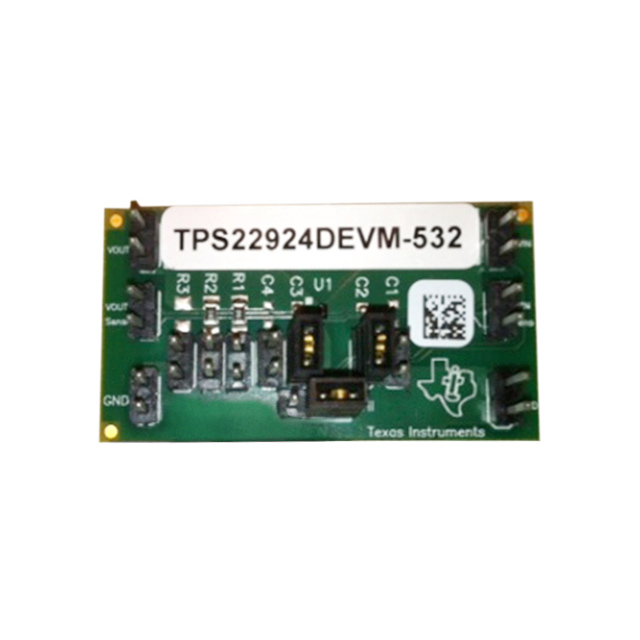

Texas Instruments TPS22924DEVM-532	Power Management	Board(s)	TPS22924D	Board(s)	Power Distribution Switch (Load Switch)
Texas Instruments TPS22924BYZT						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount
Texas Instruments TPS22924BYZZT						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount
Texas Instruments TPS22924CYZPRB						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount	0.89	1.39
Texas Instruments TPS22924DYZPR						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount	0.89	1.39
Texas Instruments TPS22924BYZPRB						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount	0.89	1.39
Texas Instruments TPS22924CYZPT						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount	0.89	1.39
Texas Instruments TPS22924BYZR						N-Channel	General Purpose	0.75 V	3.6 V	Non-Inverting	6-XFBGA DSBGA	Load Discharge Slew Rate Controlled	On/Off	High Side	85 °C	-40 °C	6-DSBGA	1	1:1	2 A	Surface Mount

Catalog

3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 6200-µs at 3.6-V

Key Features

• Integrated Single-Channel Load SwitchInput Voltage: 0.75 V to 3.6 VOn-ResistancerON= 18.3 mΩ at VIN= 3.6 VrON= 18.5 mΩ at VIN= 2.5 VrON= 19.6 mΩ at VIN= 1.8 VrON= 19.4 mΩ at VIN= 1.2 VrON= 20.3 mΩ at VIN= 1.0 VrON= 22.7 mΩ at VIN= 0.75 VSmall CSP-6 package0.9 mm × 1.4 mm, 0.5-mm Pitch2-A Maximum Continuous Switch CurrentLow Shutdown CurrentLow Threshold Control InputControlled Slew Rate to Avoid Inrush CurrentsQuick Output Discharge TransistorESD Performance Tested Per JESD 225000-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)Integrated Single-Channel Load SwitchInput Voltage: 0.75 V to 3.6 VOn-ResistancerON= 18.3 mΩ at VIN= 3.6 VrON= 18.5 mΩ at VIN= 2.5 VrON= 19.6 mΩ at VIN= 1.8 VrON= 19.4 mΩ at VIN= 1.2 VrON= 20.3 mΩ at VIN= 1.0 VrON= 22.7 mΩ at VIN= 0.75 VSmall CSP-6 package0.9 mm × 1.4 mm, 0.5-mm Pitch2-A Maximum Continuous Switch CurrentLow Shutdown CurrentLow Threshold Control InputControlled Slew Rate to Avoid Inrush CurrentsQuick Output Discharge TransistorESD Performance Tested Per JESD 225000-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)

Description

The TPS22924x is a small, low RONload switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. A 1250 Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time of the device is internally controlled to avoid inrush current. The TPS22924B features a rise time of 100 µs at VIN= 3.6 V while the TPS22924C has a rise time of 800 µs at VIN= 3.6 V. The TPS22924x is available in an ultra-small space-saving 6-pin CSP package and is characterized for operation over the free-air temperature range of –40ºC to 85ºC. The TPS22924x is a small, low RONload switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. A 1250 Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time of the device is internally controlled to avoid inrush current. The TPS22924B features a rise time of 100 µs at VIN= 3.6 V while the TPS22924C has a rise time of 800 µs at VIN= 3.6 V. The TPS22924x is available in an ultra-small space-saving 6-pin CSP package and is characterized for operation over the free-air temperature range of –40ºC to 85ºC.
