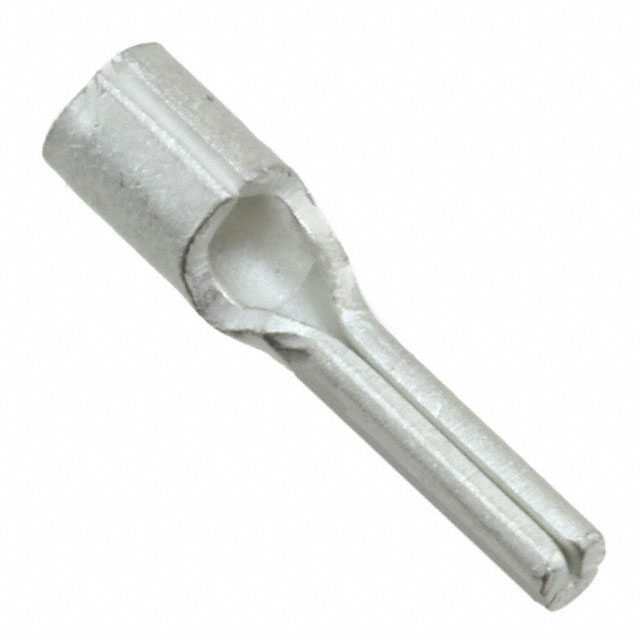

1651 Series

Catalog

CONN WIRE PIN TERM 16-22AWG PIDG

Part	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Contact Material	Pin Diameter [diameter]	Pin Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation	Termination	Features	Length - Pin	Length - Pin	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Values [Min]	Values [Max]	Values	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]

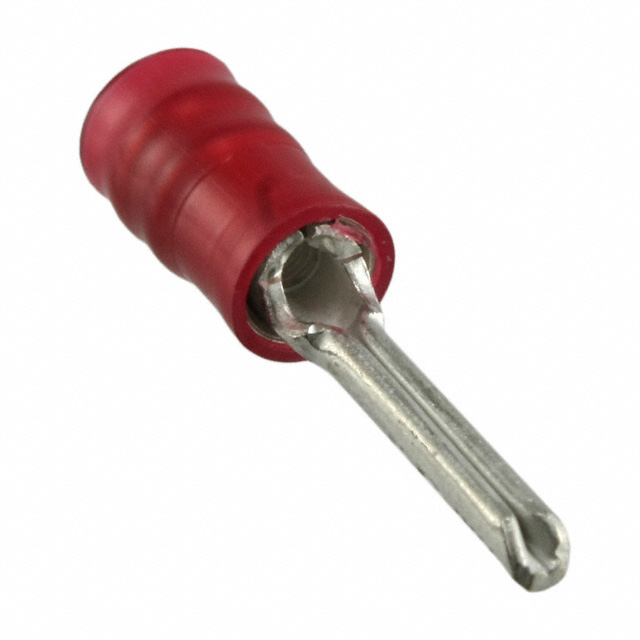

TE Connectivity AMP Connectors 165168	Nylon Polyamide (PA)	0.2 mm˛	1.6 mm˛	22 AWG	16 AWG	Tin	Copper	0.071 in	1.8 mm	0.913 "	23.2 mm	Insulated	Crimp	Serrated Termination	0.39 in	9.91 mm	Red	3.61 mm	0.142 in

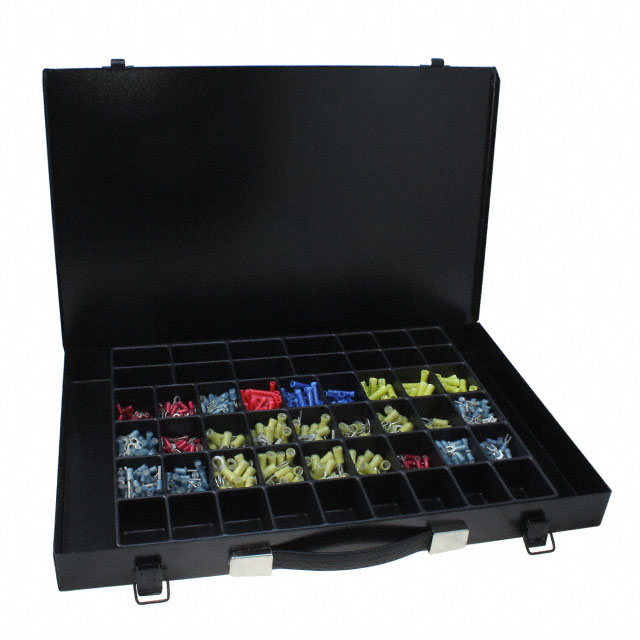

TE Connectivity AMP Connectors 165154																				24 AWG	14 AWG	900 pcs

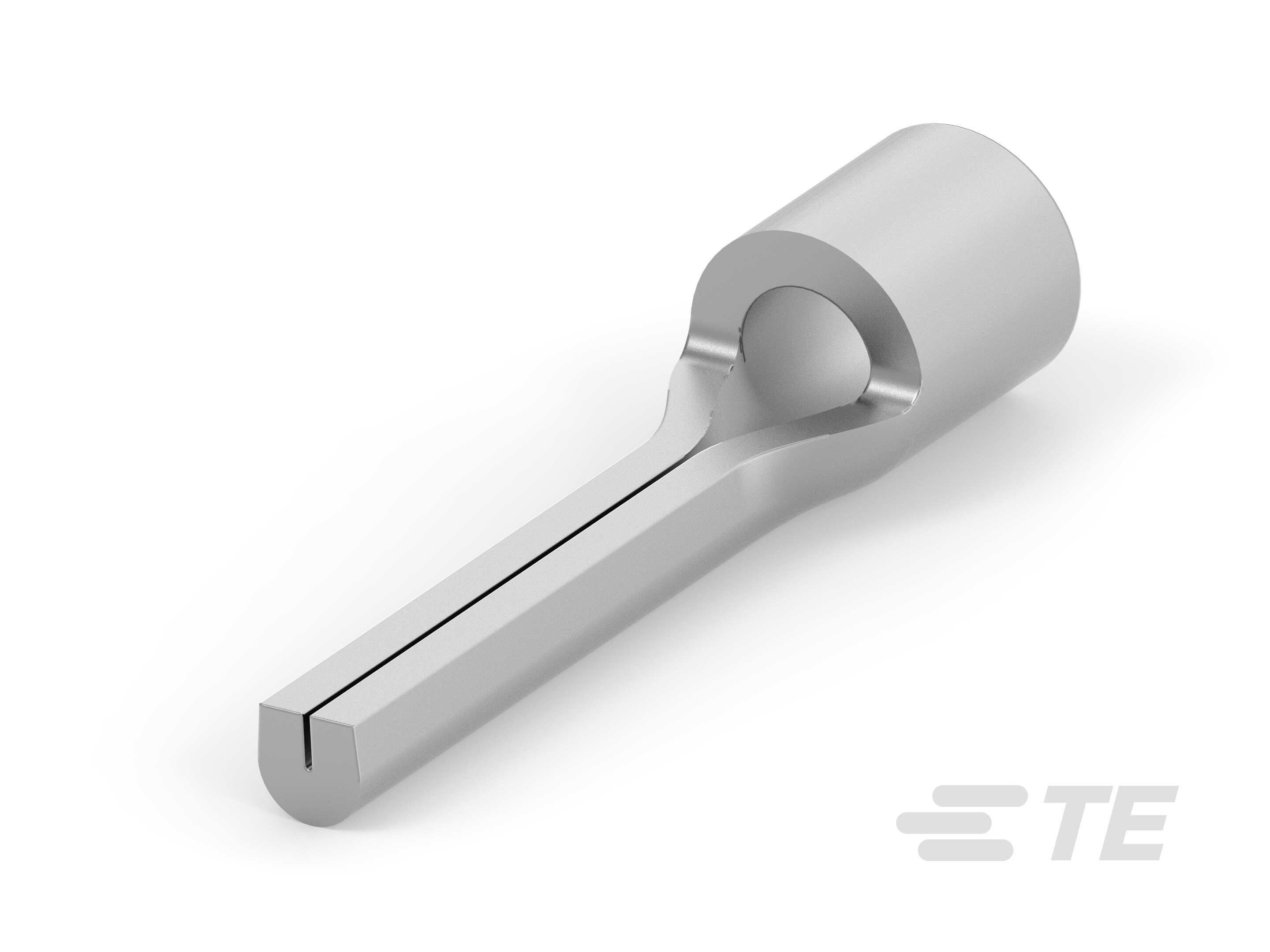

TE Connectivity AMP Connectors 165170				16 AWG	14 AWG	Tin	Copper	0.071 in	1.8 mm	0.697 in	17.7 mm	Non-Insulated	Crimp	Serrated Termination	0.39 in	9.91 mm
TE Connectivity AMP Connectors 165166		0.2 mm˛	1.6 mm˛	22 AWG	16 AWG	Tin	Copper	0.071 in	1.8 mm	0.697 in	17.7 mm	Non-Insulated	Crimp	Serrated Termination	0.39 in	9.91 mm							0.059 "	1.5 mm	0.142 "	3.6 mm
