MS3106F14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PLUG

Part	Applications	Backshell Material	Plating	Insert Material	Contact Material	Termination	Shell Size - Insert	Primary Material	Cable Opening	Qualification	Shell Material	Ingress Protection	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Shell Finish	Features	Mounting Type	Grade	Orientation	Fastening Type	Shielding	Color	Number of Positions	Contact Finish - Mating
Amphenol Aerospace Operations MS3106F14S-10S
Amphenol Aerospace Operations MS3106F14-3S
Amphenol Aerospace Operations MS3106F14S-5P	Marine Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	Solder Cup	14S-5	Metal	0.406 in	MIL-DTL-5015	Aluminum Alloy	Environment Resistant	125 °C	-55 °C	Male Pins Plug	Cadmium Olive Drab Chromate	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Military	N (Normal)	Threaded	Unshielded	Olive Drab	5	Silver
Amphenol Aerospace Operations MS3106F14S-2PX
Amphenol Aerospace Operations MS3106F14S-13P
Amphenol Aerospace Operations MS3106F-14S-2S	Marine Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	Solder Cup	14S-2	Metal	0.406 in	MIL-DTL-5015	Aluminum Alloy	Environment Resistant	125 °C	-55 °C	Female Sockets Plug	Cadmium Olive Drab Chromate	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Military	N (Normal)	Threaded	Unshielded	Olive Drab	4	Silver
Amphenol Aerospace Operations MS3106F14-3P
Amphenol Aerospace Operations MS3106F14S-2SX
Amphenol Aerospace Operations MS3106F14S-2PY

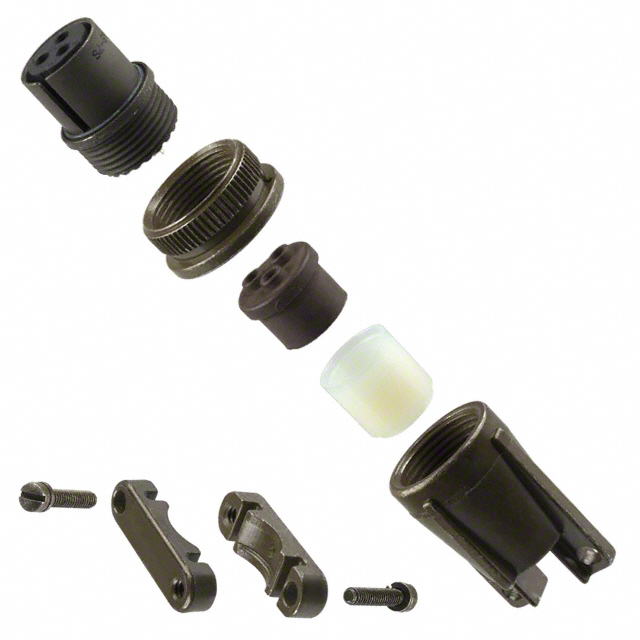

Amphenol Aerospace Operations MS3106F-14S-7S	Marine Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	Solder Cup	14S-7	Metal	0.406 in	MIL-DTL-5015	Aluminum Alloy	Environment Resistant	125 °C	-55 °C	Female Sockets Plug	Cadmium Olive Drab Chromate	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Military	N (Normal)	Threaded	Unshielded	Olive Drab	3	Silver
