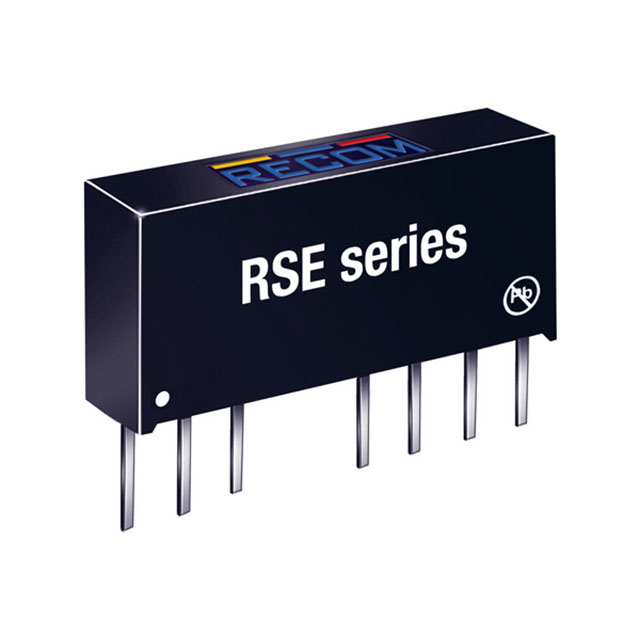

RSE Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W 4.5-9VIN 5VOUT 400MA SIP8

Part	Current - Output (Max) [Max]	Voltage - Isolation	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Max) [Max]	Type	Control Features	Voltage - Output 1	Efficiency	Number of Outputs	Applications	Power (Watts)	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]
Recom Power RSE-0505S/H2	400 mA	2000 V	8-SIP Module 7 Leads	-40 C	75 ░C	Remote On/Off SCP	9 V	Isolated Module	Active Low Enable	5 V	76 %	1	ITE (Commercial)	2 W	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	4.5 V
Recom Power RSE-2405S/H2	400 mA	2000 V	8-SIP Module 7 Leads	-40 C	75 ░C	Remote On/Off SCP	36 V	Isolated Module	Active Low Enable	5 V	80 %	1	ITE (Commercial)	2 W	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	18 V
