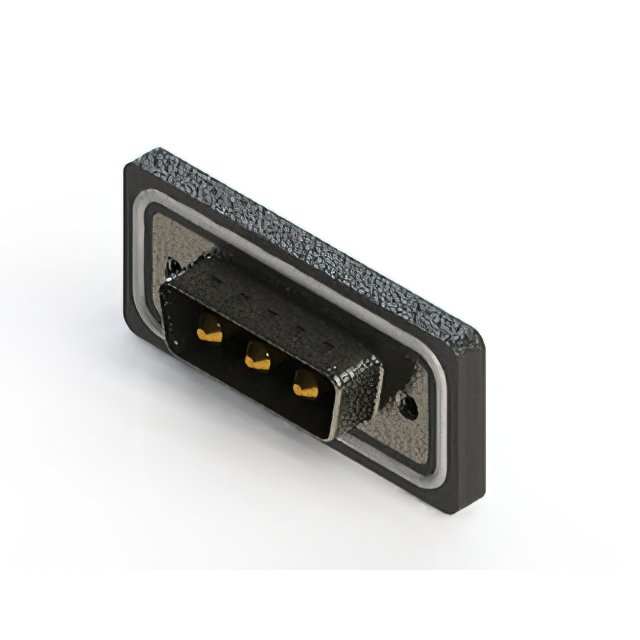

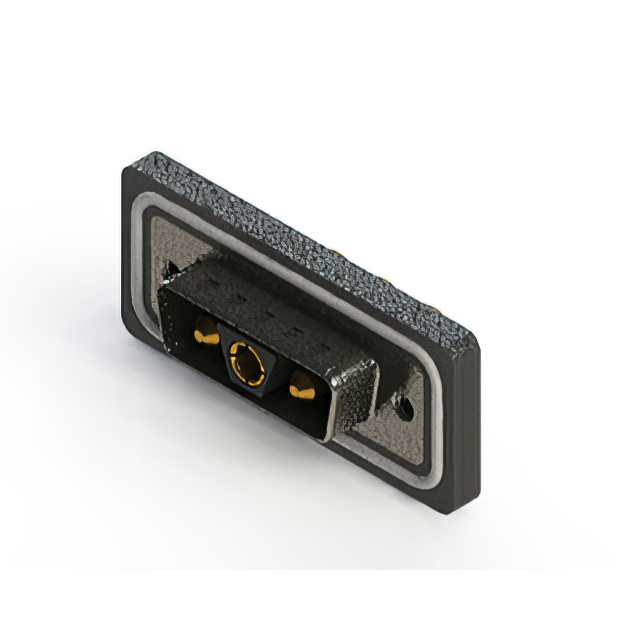

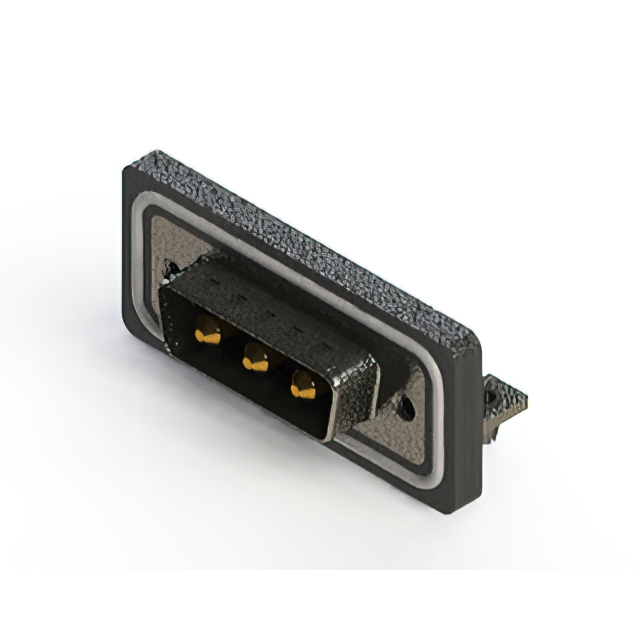

629W3W Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB PLUG 3POS R/A SLDR
| Part | Color | Dielectric Material | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Connector Style | Termination | Shell Size, Connector Layout | Number of Rows | Contact Finish | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Contact Type | Number of Positions | Features | Shell Material, Finish | Flange Feature | Flange Feature | Ingress Protection | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.38 µm | 15 µin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 30 A | Power | 3 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.76 Ám | 30 Áin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 40 A | Power | 3 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.76 Ám | 30 Áin | Plug Female Sockets and Male Pins | Combo D-Sub | Solder | 3WK3 A DA | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 30 A | Power | 3 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | 2 | |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.127 µm | 5 µin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Right Angle Through Hole | 40 A | Power | 3 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | ||
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.76 Ám | 30 Áin | Plug Female Sockets and Male Pins | Combo D-Sub | Solder | 3WK3 A DA | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 40 A | Power | 3 | Grounding Indents Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | 2 |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.127 µm | 5 µin | Plug Female Sockets and Male Pins | Combo D-Sub | Solder | 3WK3 A DA | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 20 A | Power | 3 | Grounding Indents Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | 2 |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.127 µm | 5 µin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 30 A | Power | 3 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | ||
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.127 µm | 5 µin | Plug Female Sockets and Male Pins | Combo D-Sub | Solder | 3WK3 A DA | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 20 A | Power | 3 | Grounding Indents Shielded | Nickel Plated Steel | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | 2 | |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.127 µm | 5 µin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 10 A | Power | 3 | Grounding Indents Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Black | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Copper Alloy | -55 C | 125 °C | 0.38 µm | 15 µin | Plug Male Pins | Combo D-Sub | Solder | 2 (DA A) - 3W3 | 1 | Gold | UL94 V-0 | Panel Mount Right Angle Through Hole | 30 A | Power | 3 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof |
